torque transducers
Model 651
Mid-range reaction torque watch gauges. 2.8 gm-cm to 600 gm-cm range. ±2 % rated output
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.

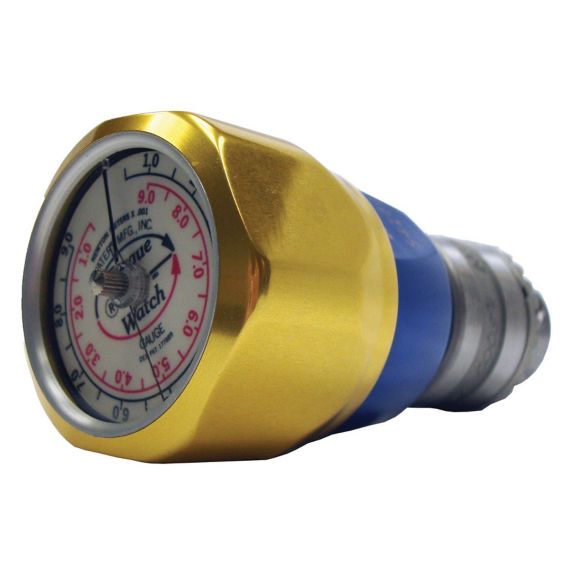

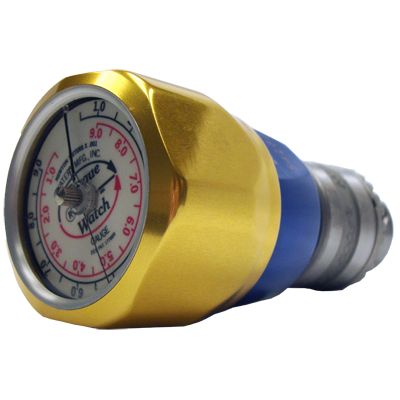

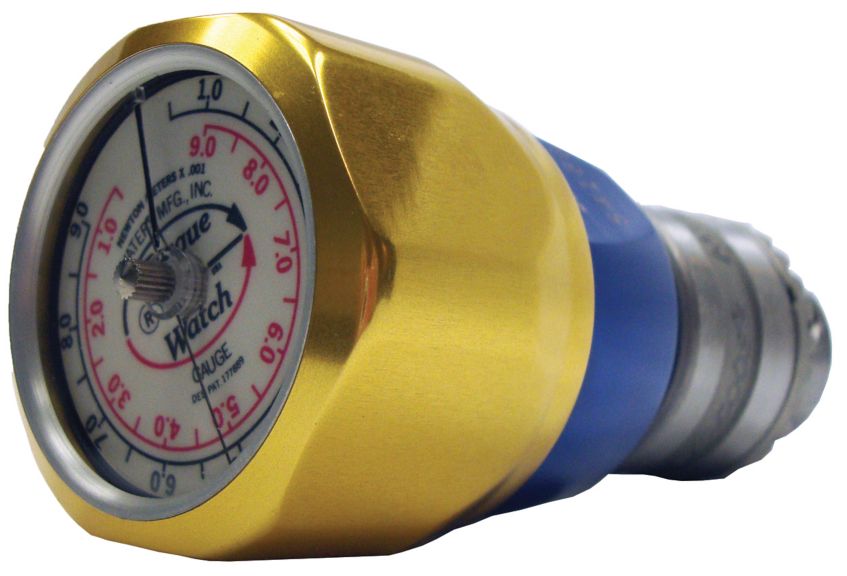

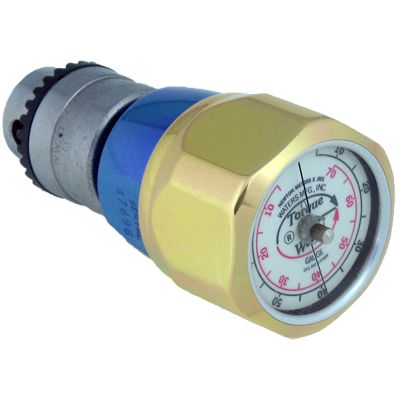

The 651 mid-range torque watch gauge series provides accurate measurement of low static torque. A 1/4 inch keyed chuck provides a simple means of coupling to the device under measurement. The 651 Series utilizes a calibrated spring, shaft, and pointer assembly within a rugged steel and aluminum housing. The unit can measure torque in either a clockwise or counterclockwise direction. Internal stainless steel rotation stops help prevent damage from over-torque up to two times the normal range.
Features
- 2.5 gm-cm to 2.8 k gm-cm [0.05 in-oz to 40 in-oz] [0.5 N-mm to 265 N-mm ] capacity
- 2 % accuracy

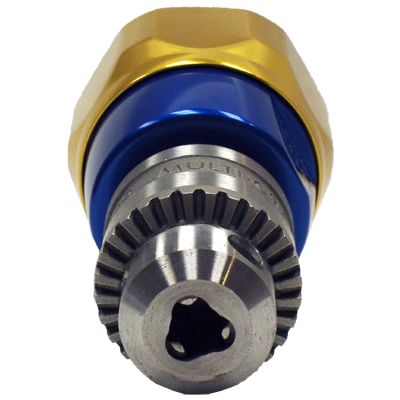

- 1/4-in keyed chuck standard
- Dial indication
- Overload protection
