Palmare robusto

Granit XP 1991iXLR

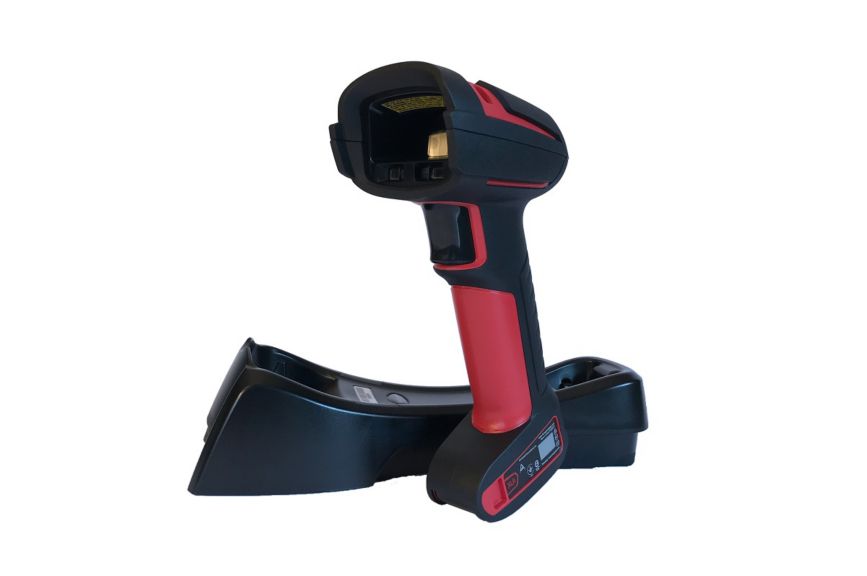

Granit™ XP 1991iXLR Ultra-Rugged Long Range Scanner

Panoramica
The Granit™ XP 1991iXLR is designed to offer premium scanning performance and full range scanning depth to drive efficiency and reliability in mission-critical applications. Its high durability supports low TCO. The new Granit™ XLR is form-fit for a variety of workflow applications from no-sacrifice near field scanning to extreme long range scanning operations enhancing workflow productivity.
  • The Granit™ XP XLR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes, plus maximum range scanning of UPC up to 2 m (6.6 ft) and 100 mil codes up to 24 m (79 ft).
  • Granit™ XP provides premium performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit quickly.
  • The XLR model provides superior indoor and outdoor aiming visibility. The brighter, more visible aimer offers more accurate, intuitive aiming across the typical range of lighting conditions. The daylight aiming system offers accurate aiming in bright sunlight.
  • Built to survive harsh treatment including 3 m (10 ft) drops, 7,000 1 m (3.3 ft) tumbles, operating temperatures from -30°C to 50°C (-22°F to 122°F) and IP67 sealing, Granit XLR helps reduce service costs and increases device uptime.
This generation of Granit™ XP scanners continues to expand capabilities and redefine ultra-rugged scanning. With a 10’ drop spec, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, fork trucks, and picking trucks. The 1 m (3.3 foot) tumble test indicates long term durability with daily knocks and drops from workstation or waist height.A 7,000 tumble specification helps ensure Granit™ scanners will be ready to work for the long term. And IP67 dust and moisture sealing protect scanning performance under harsh treatment. Granit™ 1991iXLR model begins with no-sacrifice near field scanning and expand to read UPC codes to 2 m (6.6 ft) and 100 mil (2.54mm) rack labels at 24 m (79 ft). Packed with essential reliable aiming features, the XLR laser aimer is visible in multiple lighting conditions. The daylight aiming system offers accurate aiming in bright sunlight. Created for applications where far range high speed scanning is needed to maximize productivity, and where durability is non-negotiable to help lower total cost of ownership, the Granit™ XP 1991iXLR scanner offers the optimal solution.
Data Sheet
Name
Description
File Size
Date
Size
Granit XP 1991iXLR Scanner Datasheet
application/pdf 77.13 KB
3/6/2023
77.13 KB
Manuals and Guides
Name
Description
File Size
Date
Size
Quick Start Guide: Granit XP 1991 Series - Turkish (1991-TR-QS-01 Rev B)
application/pdf 254.75 KB
4/16/2025
254.75 KB
User Guide: Network and Security for Honeywell Scanners (NS-SC-EN-SG-01 Rev A)
application/pdf 1.17 MB
4/21/2025
1.17 MB
Installation Guide: CCB02-100BT/CCB05-100BT/CCB22-100BT Base - Hebrew (GRNTBASE-HEBR-INST Rev B)
application/pdf 610.23 KB
4/24/2025
610.23 KB
Quick Start Guide: Granit XP 1991 Series - Hebrew (1991-HE-QS-01 Rev B)
application/pdf 339.79 KB
4/16/2025
339.79 KB
Installation Guide: CCB02-100BT/CCB05-100BT/CCB22-100BT Base (GRNTBASE-INST Rev D)
application/pdf 508.08 KB
3/7/2024
508.08 KB
Honeywell OCR Programming User Guide (OCR-UG Rev B)
application/pdf 171.01 KB
4/18/2025
171.01 KB
User Guide: Granit XP Industrial Area-Imaging Scanner (199x-EN-UG-01 Rev G)
application/pdf 6.43 MB
4/24/2025
6.43 MB
Installation Guide: COB02, Charge-Only Base (COB02-INST Rev C)
application/pdf 889.83 KB
11/15/2022
889.83 KB
Granit XP 1991i Cordless Industrial Area-Imaging Scanner Quick Start Guide
application/pdf 456.21 KB
11/15/2022
456.21 KB
Quick Start Guide: Granit XP 1991 Series - Arabic (1991-AR-QS-01 Rev C)
application/pdf 284.47 KB
4/16/2025
284.47 KB
Quick Start Guide: Access Point (ACC-PT-QS Rev E)
application/pdf 654.1 KB
3/15/2024
654.1 KB
Regulatory Information
Name
Description
File Size
Date
Size
Regulatory Sheet: Granit XP 1991i Series (1991-ML-RS-05 Rev A)
application/pdf 4.88 MB
11/15/2022
4.88 MB
Battery Insert for BAT-SCN05 (BAT-SCN05-ML-IN-02 Rev A)
application/pdf 506.8 KB
11/8/2022
506.8 KB
Battery Insert for BAT-SCN01 (BAT-SCN01-INSERT-1 Rev A)
application/pdf 115.16 KB
1/18/2024
115.16 KB
Regulatory Sheet: CCB02-100, CCB05-100 (CCB02-MULT-RS-05 Rev A)
application/pdf 1.64 MB
2/18/2025
1.64 MB
White Paper
Name
Description
File Size
Date
Size
White Paper: Battery Maintenance for Portable Devices - English
application/pdf 332.35 KB
10/1/2024
332.35 KB
Catalog
Name
Description
File Size
Date
Size
Granit XP Scanner Accessories Guide
application/pdf 418.78 KB
11/8/2022
418.78 KB
Name
Description
File Size
Date
Size
Quick Start Guide: Granit XP 1991 Series - Turkish (1991-TR-QS-01 Rev B)
application/pdf 254.75 KB
4/16/2025
254.75 KB
User Guide: Network and Security for Honeywell Scanners (NS-SC-EN-SG-01 Rev A)
application/pdf 1.17 MB
4/21/2025
1.17 MB
Installation Guide: CCB02-100BT/CCB05-100BT/CCB22-100BT Base - Hebrew (GRNTBASE-HEBR-INST Rev B)
application/pdf 610.23 KB
4/24/2025
610.23 KB
Quick Start Guide: Granit XP 1991 Series - Hebrew (1991-HE-QS-01 Rev B)
application/pdf 339.79 KB
4/16/2025
339.79 KB
Regulatory Sheet: Granit XP 1991i Series (1991-ML-RS-05 Rev A)
application/pdf 4.88 MB
11/15/2022
4.88 MB
Battery Insert for BAT-SCN05 (BAT-SCN05-ML-IN-02 Rev A)
application/pdf 506.8 KB
11/8/2022
506.8 KB
Battery Insert for BAT-SCN01 (BAT-SCN01-INSERT-1 Rev A)
application/pdf 115.16 KB
1/18/2024
115.16 KB
Installation Guide: CCB02-100BT/CCB05-100BT/CCB22-100BT Base (GRNTBASE-INST Rev D)
application/pdf 508.08 KB
3/7/2024
508.08 KB
Honeywell OCR Programming User Guide (OCR-UG Rev B)
application/pdf 171.01 KB
4/18/2025
171.01 KB
User Guide: Granit XP Industrial Area-Imaging Scanner (199x-EN-UG-01 Rev G)
application/pdf 6.43 MB
4/24/2025
6.43 MB
Regulatory Sheet: CCB02-100, CCB05-100 (CCB02-MULT-RS-05 Rev A)
application/pdf 1.64 MB
2/18/2025
1.64 MB
Granit XP Scanner Accessories Guide
application/pdf 418.78 KB
11/8/2022
418.78 KB
Installation Guide: COB02, Charge-Only Base (COB02-INST Rev C)
application/pdf 889.83 KB
11/15/2022
889.83 KB
Granit XP 1991i Cordless Industrial Area-Imaging Scanner Quick Start Guide
application/pdf 456.21 KB
11/15/2022
456.21 KB
Granit XP 1991iXLR Scanner Datasheet
application/pdf 77.13 KB
3/6/2023
77.13 KB
Quick Start Guide: Granit XP 1991 Series - Arabic (1991-AR-QS-01 Rev C)
application/pdf 284.47 KB
4/16/2025
284.47 KB
White Paper: Battery Maintenance for Portable Devices - English
application/pdf 332.35 KB
10/1/2024
332.35 KB
Quick Start Guide: Access Point (ACC-PT-QS Rev E)
application/pdf 654.1 KB
3/15/2024
654.1 KB
Showing 1 to 9 of 9 parts
Product Number
Part Number
Description
Leaf Category
Thumbnail
1991IXLR-3-N
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
1991IXLR-3-N
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
1991IXLR-3-R
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
1991IXLR-3-R
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
1991IXLR-3SER-5-N
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
1991IXLR-3SER-5-N
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
1991IXLR-3SER-5-R
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
1991IXLR-3SER-5-R
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
1991IXLR-3USB-5-N
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
1991IXLR-3USB-5-N
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
1991IXLR-3USB-5-R
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
1991IXLR-3USB-5-R
https://honeywell.scene7.com/is/image/Honeywell65/granit-xp-1991i-xlr-and-cordless-base-left-8
