LVDTs
Model JEC-AG Series
dc-dc long stroke displacement transducers. Captive guided spring return armature. ±0.5 in to ±3.0 in ranges. ±0.25% F.S. non-linearity.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

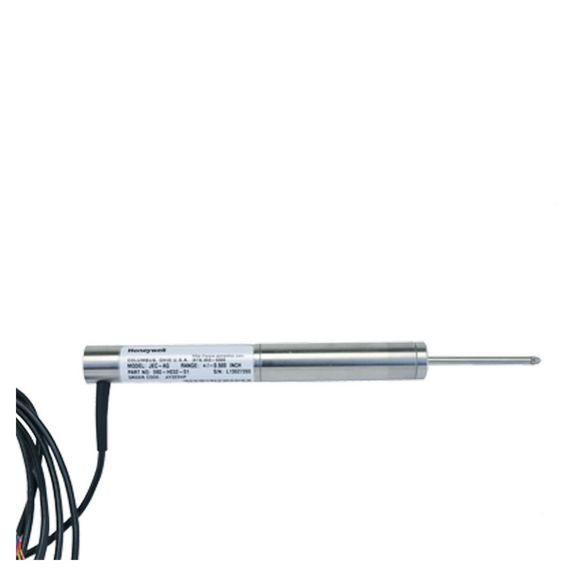

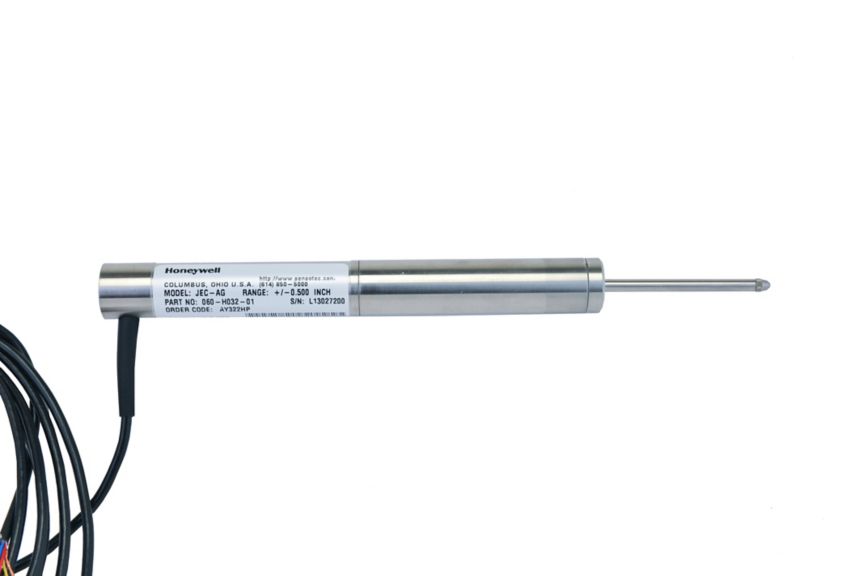

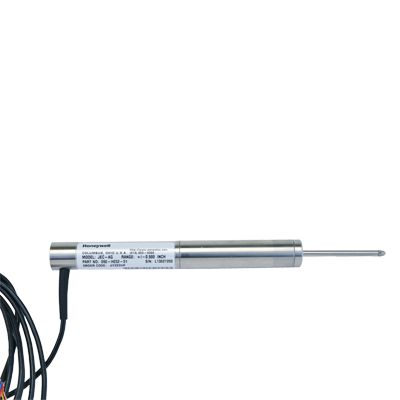

Model JEC-AG DC-DC Long Stroke Displacement Transducer with captive guided spring return armature, ranges from ± 0.5 to ± 3.0 in and an accuracy of ± 0.25% of full scale. Output of either ± 5 vdc or 0 to 10 vdc with supply that can operate with either a dual power supply of ± 12 vdc to ± 20 vdc or a single power supply of 24 to 40 vdc. Unit can operate from a temperature of -58°F to +176°F and is constructed with a stainless steel body and has a 6 ft long multiconductor shielded cable.
Features
- Stainless steel construction
- Enhanced life cycle
- Voltage regulation
- Reverse polarity protected
- Single or dual supply wiring (field selectable)
- Captive guided spring return armature
Data Sheet
Name
Description
File Size
Date
Size
Test & Measurement Model JEC-AG DC-DC Long-Stroke LVDT Datasheet
application/pdf 343.92 KB
7/17/2021
343.92 KB
Brochure
Name
Description
File Size
Date
Size
Technical Note
Name
Description
File Size
Date
Size
Model JEC, JEC-AG, JEC-C, MS3, S3C External Wiring Diagram
application/pdf 357.47 KB
7/17/2021
357.47 KB
Others
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Model JEC, JEC-AG, JEC-C, MS3, S3C External Wiring Diagram
application/pdf 357.47 KB
7/17/2021
357.47 KB
Test & Measurement Model JEC-AG DC-DC Long-Stroke LVDT Datasheet
application/pdf 343.92 KB
7/17/2021
343.92 KB
Name
Description
File Size
Date
Size
Test & Measurement Model JEC-AG DC-DC Long-Stroke LVDT Datasheet
343.92 KB
7/17/2021
Model JEC, JEC-AG, JEC-C, MS3, S3C External Wiring Diagram
357.47 KB
7/17/2021
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
060-3587-03
AY111HM:MODEL PLVX, +- 0.1 IN
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
060-3587-03
AY111HM:MODEL PLVX, +- 0.1 IN
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
060-3615-01
BY129HP:MODEL DLF, +- 0.5 IN
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
060-3615-01
BY129HP:MODEL DLF, +- 0.5 IN
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
060-3615-02
BY129HQ:MODEL DLF, +- 1 IN
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
060-3615-02
BY129HQ:MODEL DLF, +- 1 IN
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
060-3618-03
BY122HR:MODEL VL7A, +- 2 IN
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
060-3618-03
BY122HR:MODEL VL7A, +- 2 IN
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
060-H032-01
Model JEC-AG DC LVDT, +12.7MM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
060-H032-01
Model JEC-AG DC LVDT, +12.7MM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
060-H032-02
AY322HQ:MODEL JEC-AG, +- 1 IN
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
060-H032-02
AY322HQ:MODEL JEC-AG, +- 1 IN
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-jec-ag-dcdc-lvdt-displacement-400x400-top-ciid-162021
