    Magnetic Sensors

    4AV Series

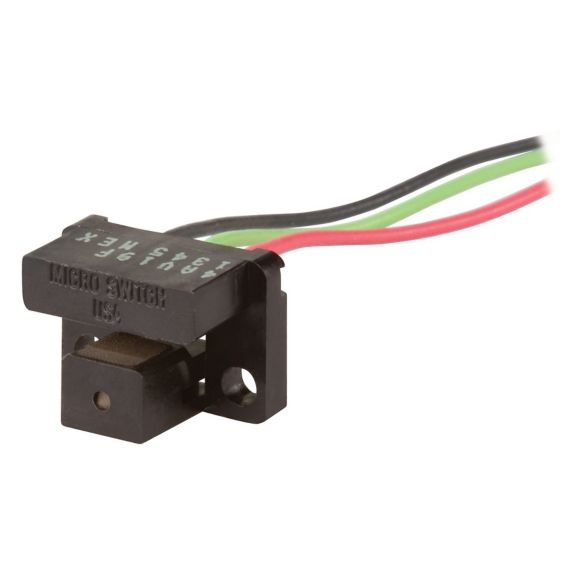

    Hall-effect vane position sensors. Dual tower wire exit package. Sinking output.

    Overview
    SUPPORT Where to buy CONTACT US

    Distributor Inventory

    AV vane operated integral magnet position sensors are operated by passing a ferrous vane through the gap between the Hall sensor and the magnet, shunting the magnetic flux away from the sensor. AVs can be used as limit switches by operating with a single large vane: as tachometer sensors by using toothed wheels: or as synchronizing elements by using cams or sectors.

    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    4AV Series - Solid State Vane Switches
    4AV Series - Solid State Vane Switches
    application/pdf 358.78 KB
    6/26/2022
    358.78 KB
