Thermostats
3MS1 QPL Series
Military. QPL. Each unit 100% inspected. Hermetically sealed. Tight tolerances & differentials. SPST contacts. Mounting brackets, terminals.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

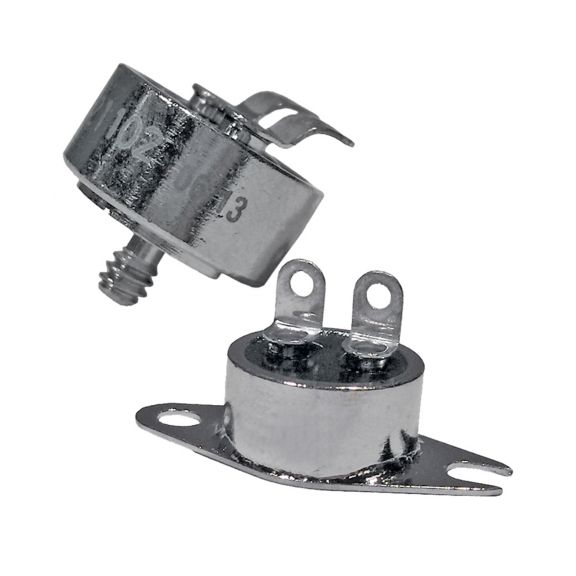

The 3MS1 QPL Series consists of a single pole, single throw switch activated by a snap-action bimetal disc. Temperature calibrations are pre-set at the factory, and each unit is 100% thermally and mechanically inspected. It is available to open or close on temperature rise. The case is laser welded to form a hermetically sealed steel housing with a glass-to-metal seal at the terminal junction. It is qualified to MIL-S-24236 and is QPL listed for military applications.
Features
- Hermetically sealed
- Tight tolerances
- Tight differentials
- Hi-Rel
- QPL listed
Potential Applications
- Military
Specifications
Features
- Shock
- MIL-STD-202, Method 213; 100 G
- Thermal Shock
- MIL-STD-202, Method 107; Cond. B
- Salt Spray
- MIL-STD-202, Method 101; Cond. B
- Vibration
- MIL-STD-202, Method 204; 20 G
- Seal Type
- MIL-STD-202, Method 112; Cond. C
Technical Specifications
- Thermostat Environmental Exposure Range
- -65 °C to 260 °C [-85 °F to 500 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm max.
- Acceleration Range/Limits
- MIL-STD-202, Method 212; 20 G
- Insulation Resistance
- MIL-STD-202, Method 302; 500 MOhm
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
Standards & Certifications
- Agency Approvals and Standards
- MIL-PRF-24236/1 and QPL
Operating Characteristics
- Operating Temperature
- -46 °C to 191 °C [-50 °F to 375 °F]
- Humidity
- MIL-STD-202, Method 106
Features
- Shock
- MIL-STD-202, Method 213; 100 G
- Thermal Shock
- MIL-STD-202, Method 107; Cond. B
- Salt Spray
- MIL-STD-202, Method 101; Cond. B
- Vibration
- MIL-STD-202, Method 204; 20 G
- Seal Type
- MIL-STD-202, Method 112; Cond. C
Technical Specifications
- Thermostat Environmental Exposure Range
- -65 °C to 260 °C [-85 °F to 500 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm max.
- Acceleration Range/Limits
- MIL-STD-202, Method 212; 20 G
- Insulation Resistance
- MIL-STD-202, Method 302; 500 MOhm
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
Standards & Certifications
- Agency Approvals and Standards
- MIL-PRF-24236/1 and QPL
Operating Characteristics
- Operating Temperature
- -46 °C to 191 °C [-50 °F to 375 °F]
- Humidity
- MIL-STD-202, Method 106
- Shock : MIL-STD-202, Method 213; 100 G
- Thermostat Environmental Exposure Range : -65 °C to 260 °C [-85 °F to 500 °F]
- Agency Approvals and Standards : MIL-PRF-24236/1 and QPL
- Thermostat Contact Resistance : MIL-STD-202, Method 307; 0.050 Ohm max.
- Acceleration Range/Limits : MIL-STD-202, Method 212; 20 G
- Operating Temperature : -46 °C to 191 °C [-50 °F to 375 °F]
- Insulation Resistance : MIL-STD-202, Method 302; 500 MOhm
- Dielectric Strength : MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
- Thermal Shock : MIL-STD-202, Method 107; Cond. B
- Salt Spray : MIL-STD-202, Method 101; Cond. B
- Vibration : MIL-STD-202, Method 204; 20 G
- Seal Type : MIL-STD-202, Method 112; Cond. C
- Humidity : MIL-STD-202, Method 106
