Gas Sensors
Other Combustibles

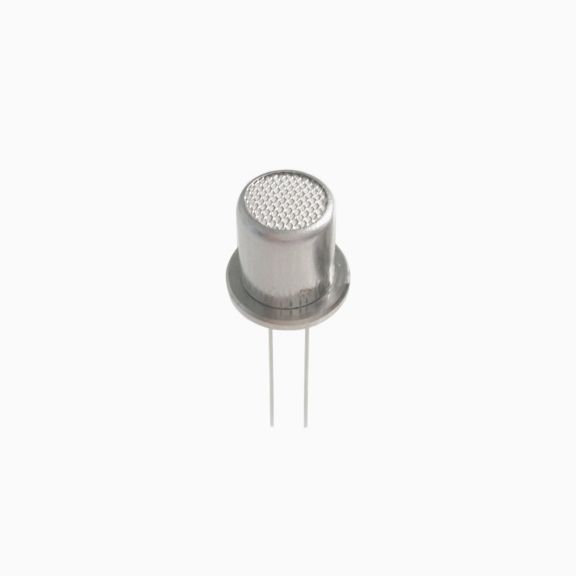

Standard Pellistor catalytic bead pair, miniature size with lower power consumption. Some variants are ATEX certified for hazardous area applications
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Standard Pellistor catalytic bead pair, miniature size with lower power consumption suitable for portable gas detection instruments and high power consumption ideal for fixed gas detection instruments. Versions with higher poisoning resistance are available. Some variants are also ATEX certified for hazardous area applications.
Specifications
Applications & Compatibility
- Application
- Hazardous Area Applications
Technical Specifications
- Zero Shift
- <± 3% LEL per year
- Position Sensitivity
- None
- Long Term Sensitivity Drift
- < 5% per Months
- Gases Detected
- Most Combustible Gases and Vapours
Overview
- Warranty
- 12 Months
- Brand
- Honeywell Citytech
Operating Characteristics
- Storage Temperature
- 0 to 20°C
- Operating Pressure Range
- 1 atm ± 10%
- Operating Humidity Range
- 0 to 90% RH (Non-Condensing)
Standards & Certifications
- Standards & Certifications
- ATEX
Features
- Operating Principle
- Catalytic Bead
- Catalytic Oxidation
- Constant Current
- Nominal Range
- 0 to 100% LEL
- Features & Benefits
- Miniature Size With Lower Power Consumption
- Standard Pallister Catalytic Bead Pair
Others
- Industry
- Energy
Applications & Compatibility
- Application
- Hazardous Area Applications
Technical Specifications
- Zero Shift
- <± 3% LEL per year
- Position Sensitivity
- None
- Long Term Sensitivity Drift
- < 5% per Months
- Gases Detected
- Most Combustible Gases and Vapours
Overview
- Warranty
- 12 Months
- Brand
- Honeywell Citytech
Operating Characteristics
- Storage Temperature
- 0 to 20°C
- Operating Pressure Range
- 1 atm ± 10%
- Operating Humidity Range
- 0 to 90% RH (Non-Condensing)
Standards & Certifications
- Standards & Certifications
- ATEX
Features
- Operating Principle
- Catalytic Bead
- Catalytic Oxidation
- Constant Current
- Nominal Range
- 0 to 100% LEL
- Features & Benefits
- Miniature Size With Lower Power Consumption
- Standard Pallister Catalytic Bead Pair
Others
- Industry
- Energy
- Application : Hazardous Area Applications
- Zero Shift : <± 3% LEL per year
- Warranty : 12 Months
- Storage Temperature : 0 to 20°C
- Standards & Certifications : ATEX
- Position Sensitivity : None
- Operating Principle : Catalytic Bead|Catalytic Oxidation|Constant Current
- Operating Pressure Range : 1 atm ± 10%
- Operating Humidity Range : 0 to 90% RH (Non-Condensing)
- Nominal Range : 0 to 100% LEL
- Long Term Sensitivity Drift : < 5% per Months
- Industry : Energy
- Gases Detected : Most Combustible Gases and Vapours
- Features & Benefits : Miniature Size With Lower Power Consumption|Standard Pallister Catalytic Bead Pair
- Brand : Honeywell Citytech
Data Sheet
Name
Description
File Size
Date
Size
Flammable (LEL) 200NE CiTipeL Catalytic Bead Sensor
application/pdf 240.72 KB
8/13/2025
240.72 KB
Flammable (LEL) 300PZ CiTipeL Catalytic Bead Sensor
application/pdf 294.09 KB
8/13/2025
294.09 KB
Flammable (LEL) CAT25 CiTipeL Catalytic Bead Sensor
application/pdf 403.46 KB
8/13/2025
403.46 KB
Flammable (LEL) CMP200-D CiTipeL Catalytic Bead Sensor
application/pdf 234.18 KB
8/13/2025
234.18 KB
Flammable (LEL) CDH300-B CiTipeL Catalytic Bead Sensor
application/pdf 455.75 KB
8/13/2025
455.75 KB
Flammable (LEL) CAT16 CiTipeL Catalytic Bead Sensor
application/pdf 413.06 KB
8/13/2025
413.06 KB
Flammable (LEL) P90E CiTipeL Catalytic Bead Sensor
application/pdf 324.72 KB
8/13/2025
324.72 KB
Brochure
Name
Description
File Size
Date
Size
Sensing Solutions For Industrial Applications
application/pdf 16.68 MB
8/11/2025
16.68 MB
Detecting the Third Element, Honeywell Gas Sensing
application/pdf 4.87 MB
8/12/2025
4.87 MB
Name
Description
File Size
Date
Size
Sensing Solutions For Industrial Applications
application/pdf 16.68 MB
8/11/2025
16.68 MB
Detecting the Third Element, Honeywell Gas Sensing
application/pdf 4.87 MB
8/12/2025
4.87 MB
Flammable (LEL) 200NE CiTipeL Catalytic Bead Sensor
application/pdf 240.72 KB
8/13/2025
240.72 KB
Flammable (LEL) 300PZ CiTipeL Catalytic Bead Sensor
application/pdf 294.09 KB
8/13/2025
294.09 KB
Flammable (LEL) CAT25 CiTipeL Catalytic Bead Sensor
application/pdf 403.46 KB
8/13/2025
403.46 KB
Flammable (LEL) CMP200-D CiTipeL Catalytic Bead Sensor
application/pdf 234.18 KB
8/13/2025
234.18 KB
Flammable (LEL) CDH300-B CiTipeL Catalytic Bead Sensor
application/pdf 455.75 KB
8/13/2025
455.75 KB
Flammable (LEL) CAT16 CiTipeL Catalytic Bead Sensor
application/pdf 413.06 KB
8/13/2025
413.06 KB
Flammable (LEL) P90E CiTipeL Catalytic Bead Sensor
application/pdf 324.72 KB
8/13/2025
324.72 KB
Name
Date
Size
Please sign in to view part numbers available for purchase based on your account Sign In
Showing 1 to 2 of 2 parts
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
2111B2424
Flammable Gases LEL Pellistor Sensor CAT16 (0-100%LEL) CiTipeL SG16ZA
https://honeywell.scene7.com/is/image/Honeywell65/sps-ast-other-combustibles
2111B2424
Flammable Gases LEL Pellistor Sensor CAT16 (0-100%LEL) CiTipeL SG16ZA
https://honeywell.scene7.com/is/image/Honeywell65/sps-ast-other-combustibles
PM600-000
Flammable Gases LEL Pellistor Sensor CMP200-D (0-100%LEL) CiTipeL
https://honeywell.scene7.com/is/image/Honeywell65/sps-ast-other-combustibles
PM600-000
Flammable Gases LEL Pellistor Sensor CMP200-D (0-100%LEL) CiTipeL
https://honeywell.scene7.com/is/image/Honeywell65/sps-ast-other-combustibles
