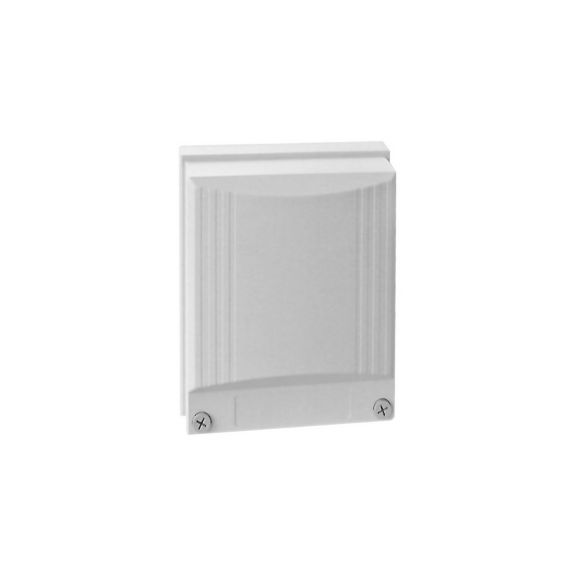

Transceiver unit "Universal V IP64"
Active transponder system with an adjustable range of up to 6m of radius, safe three-dimensional detection of patient transponders and nursing transponders.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Part Number: 790P103
Like item 790P100, however, in the outer housing with moisture protection IP64 / environmental protection class III.
Specifications
Overview
- Brand
- Honeywell
- Product Type
- Locator/Receiver Unit (Universal V)
Electrical Specifications
- Rated voltage (V AC)
- 230
Technical Specifications
- Frequency band (MHz)
- 868
- Quiescent Frequency
- 125
- Transmission range
- 6 m
Features
- Features & Benefits
- Battery Monitoring of the Transponders with Fault Alarm if the Battery Capacity of 40% is Fallen Short off
- Expandable with Relay Card for Group Identification and an External Additional Antenna
- Possibility for the Connection of an External Additional Antenna
- Safe Three Dimensional Detection of Patient Transponders and Nursing Transponders
- With Automatic Field Regulation (To The Extent Possible) if Interference is Detected in the Detection Range
- Includes
- 1x 230V Power Supply (Built-In)
- 1x Antenna Unit (868 MHz Operation Frequency and 125 kHz Stand-by Frequency)
- 1x Built-in Signal Transmitter
- 1x Relay Contacts Control Unit (Investors)
- Color
- White
Standards & Certifications
- Type Of Protection
- IP64
Applications & Compatibility
- Application
- Alarm Suppression
Dimensions & Weight
- Weight (g)
- 550
- Dimensions
- W: 230 mm H: 145 mm D: 35 mm
Overview
- Brand
- Honeywell
- Product Type
- Locator/Receiver Unit (Universal V)
Electrical Specifications
- Rated voltage (V AC)
- 230
Technical Specifications
- Frequency band (MHz)
- 868
- Quiescent Frequency
- 125
- Transmission range
- 6 m
Features
- Features & Benefits
- Battery Monitoring of the Transponders with Fault Alarm if the Battery Capacity of 40% is Fallen Short off
- Expandable with Relay Card for Group Identification and an External Additional Antenna
- Possibility for the Connection of an External Additional Antenna
- Safe Three Dimensional Detection of Patient Transponders and Nursing Transponders
- With Automatic Field Regulation (To The Extent Possible) if Interference is Detected in the Detection Range
- Includes
- 1x 230V Power Supply (Built-In)
- 1x Antenna Unit (868 MHz Operation Frequency and 125 kHz Stand-by Frequency)
- 1x Built-in Signal Transmitter
- 1x Relay Contacts Control Unit (Investors)
- Color
- White
Standards & Certifications
- Type Of Protection
- IP64
Applications & Compatibility
- Application
- Alarm Suppression
Dimensions & Weight
- Weight (g)
- 550
- Dimensions
- W: 230 mm H: 145 mm D: 35 mm
- Brand : Honeywell
- Rated voltage (V AC) : 230
- Frequency band (MHz) : 868
- Quiescent Frequency : 125
- Features & Benefits : Battery Monitoring of the Transponders with Fault Alarm if the Battery Capacity of 40% is Fallen Short off|Expandable with Relay Card for Group Identification and an External Additional Antenna|Possibility for the Connection of an External Additional Antenna|Safe Three Dimensional Detection of Patient Transponders and Nursing Transponders|With Automatic Field Regulation (To The Extent Possible) if Interference is Detected in the Detection Range
- Type Of Protection : IP64
- Transmission range : 6 m
- Product Type : Locator/Receiver Unit (Universal V)
- Application : Alarm Suppression
- Weight (g) : 550
- Dimensions : W: 230 mm H: 145 mm D: 35 mm
- Includes : 1x 230V Power Supply (Built-In)|1x Antenna Unit (868 MHz Operation Frequency and 125 kHz Stand-by Frequency)|1x Built-in Signal Transmitter|1x Relay Contacts Control Unit (Investors)
- Color : White
