    Pressure Transducers

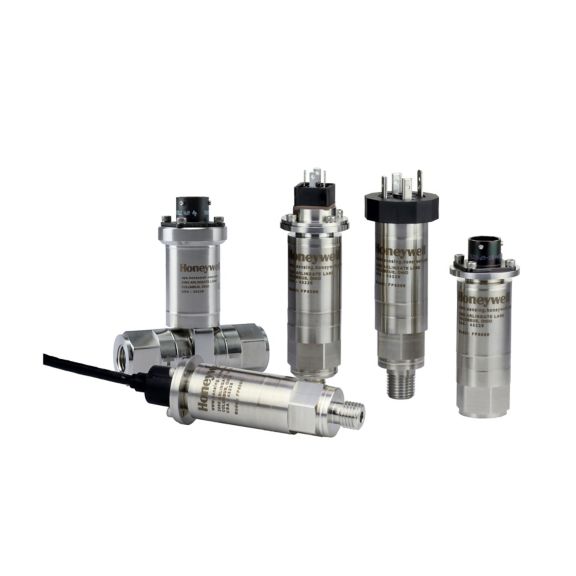

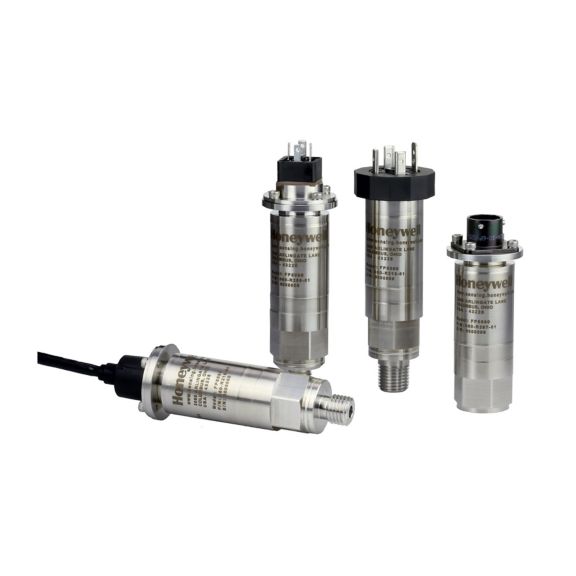

    FP5000

    Configurable gage/absolute pressure transducers. 0.36 psig/a to 5,000 psig/a. ±0.1 % full-scale accuracy. multiple output types.

    Overview

    The Honeywell Model FP5000 Series is a media-isolated piezoresistive silicon pressure sensor offering multiple output options (0 V to 5 V, 0 V to 10 V or 4 mA to 20 mA) for reading pressure over the specified full-scale pressure span and temperature range. It is compensated for sensor offset, sensitivity, temperature effects, and non-linearity to offer improved thermal stability and accuracy. Hastelloy® C276 and 316L stainless steel wetted parts provide durability with abrasive or corrosive media

    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Test & Measurement Model FP5000 Pressure Transducer Datasheet
    application/pdf 449.14 KB
    10/30/2023
    449.14 KB
    Pressure Accessories Datasheet
    application/pdf 379.5 KB
    7/17/2021
    379.5 KB
    Test & Measurement Model FP5000 Pressure Transducer Datasheet
    application/pdf 446.12 KB
    7/17/2021
    446.12 KB
