    Model DM Digital Signal Conditioner for AC Powered Displacement Transducer

    Overview

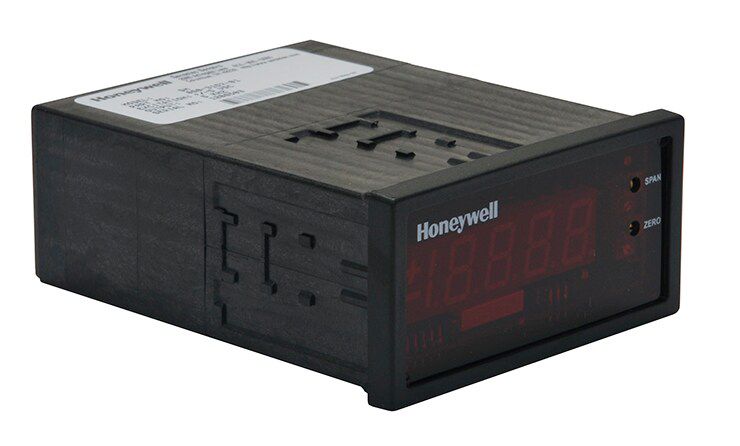

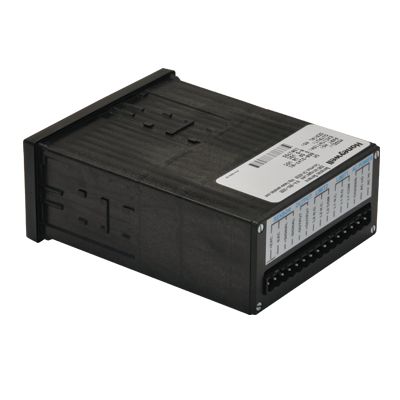

    Model DM, for carrier transducers, is a low-cost bench, panel or rack-mounted instrument which contains a power supply, signal conditioner, amplifier (Bipolar 5 V output) and digitizer. The 4 1/2-digit LED display features bright, easy-to-read 14,2 mm [0.56 in] high characters. The compact 1/8 DIN size case measures 9,7 cm W x 4,8 cm H x 13,2 cm D [3.8 in x 1.9 in x 5.2 in]. Wires easily attach to the rear connector using screw terminals. The Model DM features a 5 kHz drive supply for the transducer, a stable signal amplifier and a novel demodulation technique that produces an enhanced accuracy result.

    Features
    • Used with displacement transducers
    • 4 1/2 digit LED display
    • Three conversions per second
