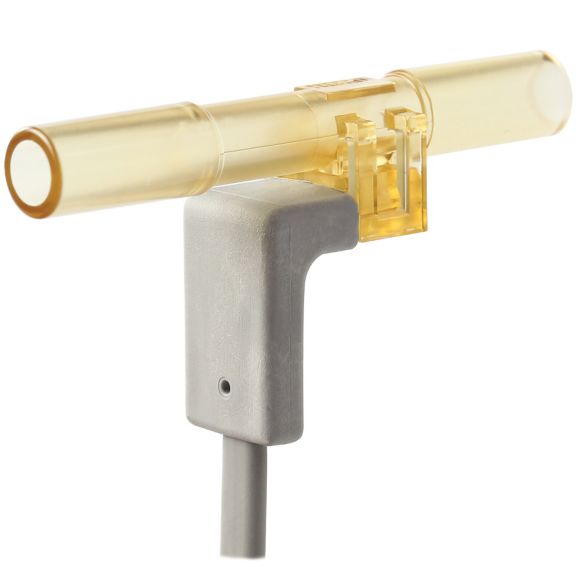

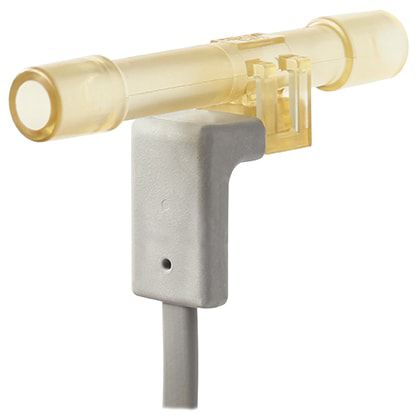

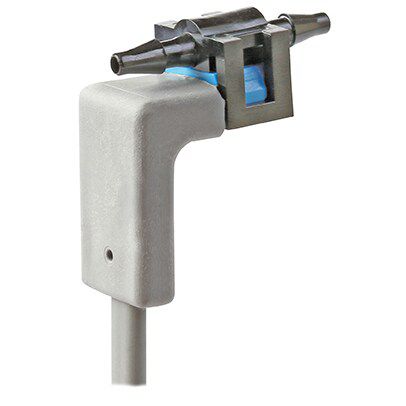

    26PC Flow-Through Series

    Compensated. Low pressure. mV output. Flow-through gage. SIP. Linearity & hysteresis: 0.35 % typ.

    Aperçu
    Pressure Range
    • 1 psi to 100 psi

    The 26PC Series miniature pressure sensors provide reliable gage pressure sensing performance in a compact package. The sensor features a proven sensing technology that utilizes a specialized piezoresistive micro-machined sensing element. The low power, non-amplified, compensated Wheatstone bridge circuit design provides inherently stable mV outputs over 1.0 psi through 250 psi sensing ranges.

    Data Sheet
    prénom
    La description
    Taille de fichier
    Date
    Taille
    26PC Series Flow-Through Low Pressure Sensors, Comp/Unamp, 0.5 psi to 100 psi Datasheet
    application/pdf 955.19 KB
    8/3/2021
    955.19 KB
