Packaged Pressure
13 mm Series
SEMI F20 UHP standard, 15 psi to 5000 psi, Unamplified, Absolute & sealed gage, Wetted parts 316L SS, Ring and Cell, Ribbon cable termination
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

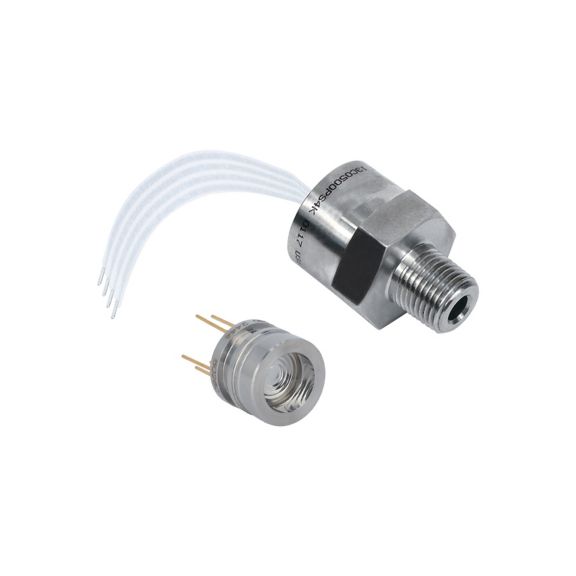

Honeywell 13mm Series stainless steel pressure sensors are designed to measure gases and liquid flow in harsh environments.
The rugged, media isolated package pressure sensor uses the Honeywell proven piezoresistive semiconductor sensor chip in an oil-isolated housing.
This design has proven to be highly reliable, stable and accurate.
Designed with a SEMI F20 compatible ring and diaphragm for Ultra High Purity (UHP) applications, this sensor exhibits exceptional corrosion resistance and specifically designed to withstand the aggressive nature of halogenated gases commonly encountered in semiconductor manufacturing processes.
Its robust construction ensures protection against environmental factors while maintaining accurate pressure measurements.
The sensor is designed to minimize the offset drift under prolonged vacuum conditions, making it an ideal choice for critical industrial applications where measurement accuracy and material integrity are crucial.
It also features weld ring collar and special back support ring for high cycle life capability as they are designed for further package integration in OEM (Original Equipment Manufacturer) applications.
The rugged, media isolated package pressure sensor uses the Honeywell proven piezoresistive semiconductor sensor chip in an oil-isolated housing.
This design has proven to be highly reliable, stable and accurate.
Designed with a SEMI F20 compatible ring and diaphragm for Ultra High Purity (UHP) applications, this sensor exhibits exceptional corrosion resistance and specifically designed to withstand the aggressive nature of halogenated gases commonly encountered in semiconductor manufacturing processes.
Its robust construction ensures protection against environmental factors while maintaining accurate pressure measurements.
The sensor is designed to minimize the offset drift under prolonged vacuum conditions, making it an ideal choice for critical industrial applications where measurement accuracy and material integrity are crucial.
It also features weld ring collar and special back support ring for high cycle life capability as they are designed for further package integration in OEM (Original Equipment Manufacturer) applications.
