    Transducteurs de pression

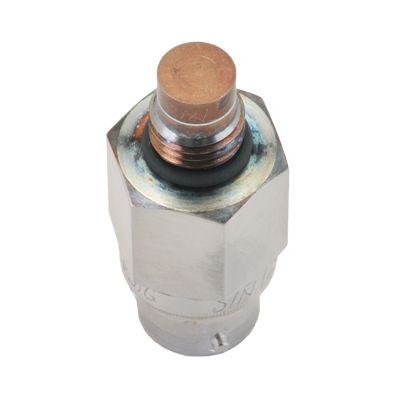

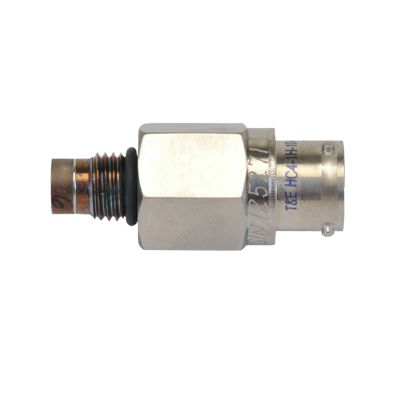

    Model A-105

    Flush diaphragm pressure transducers. 100 psi to 15,000 psi. 0.50 % full-scale accuracy

    Aperçu

    The Model A-105 gauge pressure transducers are manufactured with a unitized 17-4 PH stainless steel, wetted diaphragm. The advantage of this type of design is that a thin diaphragm and heavy sidewalls are made from one piece of stainless steel. This unitized diaphragm is rugged, but at the same time, can be made thin enough to measure low pressures.

    Available pressure ranges span from 100 psig to 15,000 psig. These models can be used in corrosive fluid environments. The Model A-105 has welded electrical connectors as an integral part of the transducer body and recommended for applications involving rough handling, or where an all-welded, stainless steel transducer is required. All units have four (4) active bonded strain gauges arranged in a Wheatstone-bridge configuration.

    Features
    • 100 psig to 15000 psig range
    • Flush mount design
    • No dead volume
    • Miniature footprint
    • Stainless steel
    • CE approved
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list
    060-2618-04G
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-a-105-pressure-400x400-front-ciid-161190
    060-2618-04G
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-a-105-pressure-400x400-front-ciid-161190
