Transportable Area Monitoring

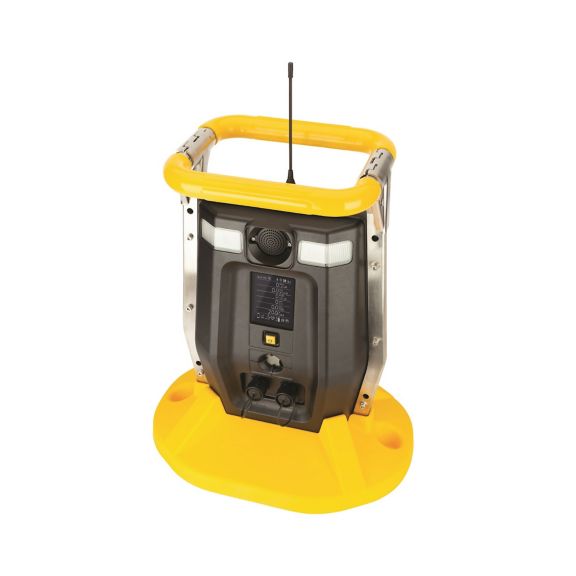

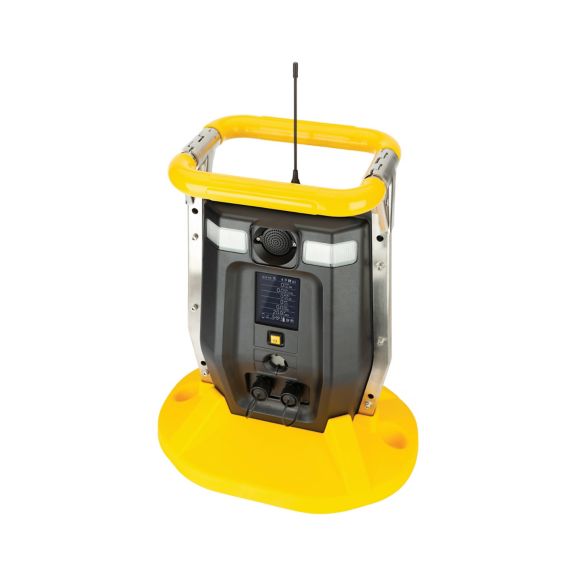

HONEYWELL BW™ RIGRAT
Transportable Multi-gas Area Monitor
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Honeywell BW™ RigRat brings a new level of user-friendliness to transportable multi-gas area monitoring. Simply place the monitor nearby, and it will alert workers to area gas threats so they can take necessary action.Features & Benefits:
- Wireless Safety Perimeter
- Remote monitoring
- Honeywell TouchPoint Plus Compatible
- Line Power for extended runtime in the field
- Inert mode that prevents alarm in normal ambient air
- Large, easy-to-read display
- Rugged, weatherproof design, with optional protective cage
- I/O ports providing additional input capabilities and local executive activation
- 8 weeks of runtime on a single charge
- up to 6 gas sensors
- Programmable input and output
- simple smartphone setup
Even the best products deserve expert maintenance!
Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.
Explore our fixed, portable, and high-tech support services now!
Specifications
Overview
- Brand
- BW™ Technologies
- Warranty
- 2 Years
Features
- Sub-Category
- Transportable
- Alarm Included
- Yes
- Alarm Type
- Visual/Audible
- Datalogging Interval
- 1 Min
- Datalogging Capable
- Yes
- Datalogging
- 4 Months
- Display Included
- Yes
- Display Type
- TFT LCD
- Features & Benefits
- Honeywell Touchpoint™ Plus Compatible
- Remote Monitoring
- Up to 8 weeks of runtime on a single charge
- Wireless Safety Perimeter
- User Options
- One-button operation and programing
- Wireless Technology
- BLE, MESH, WiFi
- Series Name
- BW™ RIGRAT
Dimensions & Weight
- Instrument Size
- H: 47 cm W: 40 cm D: 29 cm
- Weight range
- 8 kg
Technical Specifications
- Humidity Range
- 5 to 95% RH (Non-Condensing)
- Sensor Range
- LEL (0-100%LEL), CO2 (0-50000ppm), VOC (0-2000ppm), CO (0-2000ppm), H2S (0-1000ppm), SO2 (0-20ppm), O2 (0-30%vol), NO (0-250ppm), NO2 (0-20ppm), HCN (0-50ppm), NH3 (0-100ppm), Cl2 (0-50ppm)
- Display Matrix
- 240 x 320 pixel
- Sampling Pump Range
- 100ft (30m)
- 100ft (30m)
- Sensor Ports
- 6
- Wireless Communication
- Bluetooth
- Wi-Fi
- Wireless Enabled
- Yes
- Gas Type
- LEL, CO2, VOC, CO, H2S, SO2, O2, NO, NO2, HCN, NH3, Cl2
- GPS
- Yes
- Wireless Approvals
- IEEE 802.15.4 868
- Outdoor Location
- GPS and Wi-Fi
- Communication
- Bluetooth
- Wi-Fi
- Noise Sensor
- 60 to 125 dB
- Model Number
- BWRR100P/BWRR100D
- Keypad Type
- One Button
Operating Characteristics
- Minimum Temperature
- -40 degree Celsius
- -40 degree Fahrenheit
- 20°C
- Maximum Temperature
- 140 degree Fahrenheit
- 60 degree Celsius
- 60°C
- Operating Temperature
- -20 to 60°C
Battery & Charging
- Batteries Required
- Yes
- Batteries Included
- Yes
- Battery Run Time
- 8 Weeks
- Battery Capacity
- 26.4 Ah
Standards & Certifications
- Standards
- cETLus Class I Division 1; Group A, B, C, D; T4;
- Ingress Protection
- IP65/67
Applications & Compatibility
- Application
- Confined Space
- Fence Line
- Routine Maintenance
- Turnarounds
- Zone Declassification
Others
- Weight
- 17.6 US Pound
- 8 kilogram
Overview
- Brand
- BW™ Technologies
- Warranty
- 2 Years
Features
- Sub-Category
- Transportable
- Alarm Included
- Yes
- Alarm Type
- Visual/Audible
- Datalogging Interval
- 1 Min
- Datalogging Capable
- Yes
- Datalogging
- 4 Months
- Display Included
- Yes
- Display Type
- TFT LCD
- Features & Benefits
- Honeywell Touchpoint™ Plus Compatible
- Remote Monitoring
- Up to 8 weeks of runtime on a single charge
- Wireless Safety Perimeter
- User Options
- One-button operation and programing
- Wireless Technology
- BLE, MESH, WiFi
- Series Name
- BW™ RIGRAT
Dimensions & Weight
- Instrument Size
- H: 47 cm W: 40 cm D: 29 cm
- Weight range
- 8 kg
Technical Specifications
- Humidity Range
- 5 to 95% RH (Non-Condensing)
- Sensor Range
- LEL (0-100%LEL), CO2 (0-50000ppm), VOC (0-2000ppm), CO (0-2000ppm), H2S (0-1000ppm), SO2 (0-20ppm), O2 (0-30%vol), NO (0-250ppm), NO2 (0-20ppm), HCN (0-50ppm), NH3 (0-100ppm), Cl2 (0-50ppm)
- Display Matrix
- 240 x 320 pixel
- Sampling Pump Range
- 100ft (30m)
- 100ft (30m)
- Sensor Ports
- 6
- Wireless Communication
- Bluetooth
- Wi-Fi
- Wireless Enabled
- Yes
- Gas Type
- LEL, CO2, VOC, CO, H2S, SO2, O2, NO, NO2, HCN, NH3, Cl2
- GPS
- Yes
- Wireless Approvals
- IEEE 802.15.4 868
- Outdoor Location
- GPS and Wi-Fi
- Communication
- Bluetooth
- Wi-Fi
- Noise Sensor
- 60 to 125 dB
- Model Number
- BWRR100P/BWRR100D
- Keypad Type
- One Button
Operating Characteristics
- Minimum Temperature
- -40 degree Celsius
- -40 degree Fahrenheit
- 20°C
- Maximum Temperature
- 140 degree Fahrenheit
- 60 degree Celsius
- 60°C
- Operating Temperature
- -20 to 60°C
Battery & Charging
- Batteries Required
- Yes
- Batteries Included
- Yes
- Battery Run Time
- 8 Weeks
- Battery Capacity
- 26.4 Ah
Standards & Certifications
- Standards
- cETLus Class I Division 1; Group A, B, C, D; T4;
- Ingress Protection
- IP65/67
Applications & Compatibility
- Application
- Confined Space
- Fence Line
- Routine Maintenance
- Turnarounds
- Zone Declassification
Others
- Weight
- 17.6 US Pound
- 8 kilogram
- Brand : BW™ Technologies
- Weight : 17.6 US Pound|8 kilogram
- Sub-Category : Transportable
- Instrument Size : H: 47 cm W: 40 cm D: 29 cm
- Weight range : 8 kg
- Humidity Range : 5 to 95% RH (Non-Condensing)
- Sensor Range : LEL (0-100%LEL), CO2 (0-50000ppm), VOC (0-2000ppm), CO (0-2000ppm), H2S (0-1000ppm), SO2 (0-20ppm), O2 (0-30%vol), NO (0-250ppm), NO2 (0-20ppm), HCN (0-50ppm), NH3 (0-100ppm), Cl2 (0-50ppm)
- Minimum Temperature : -40 degree Celsius|-40 degree Fahrenheit|20°C
- Maximum Temperature : 140 degree Fahrenheit|60 degree Celsius|60°C
- Alarm Included : Yes
- Alarm Type : Visual/Audible
- Batteries Required : Yes
- Batteries Included : Yes
- Battery Run Time : 8 Weeks
- Battery Capacity : 26.4 Ah
- Standards : cETLus Class I Division 1; Group A, B, C, D; T4;
- Datalogging Interval : 1 Min
- Datalogging Capable : Yes
- Datalogging : 4 Months
- Display Included : Yes
- Display Matrix : 240 x 320 pixel
- Display Type : TFT LCD
- Features & Benefits : Honeywell Touchpoint™ Plus Compatible|Remote Monitoring|Up to 8 weeks of runtime on a single charge|Wireless Safety Perimeter
- User Options : One-button operation and programing
- Sampling Pump Range : 100ft (30m)|100ft (30m)
- Sensor Ports : 6
- Warranty : 2 Years
- Wireless Communication : Bluetooth|Wi-Fi
- Wireless Technology : BLE, MESH, WiFi
- Wireless Enabled : Yes
- Ingress Protection : IP65/67
- Gas Type : LEL, CO2, VOC, CO, H2S, SO2, O2, NO, NO2, HCN, NH3, Cl2
- GPS : Yes
- Operating Temperature : -20 to 60°C
- Wireless Approvals : IEEE 802.15.4 868
- Outdoor Location : GPS and Wi-Fi
- Communication : Bluetooth|Wi-Fi
- Noise Sensor : 60 to 125 dB
- Model Number : BWRR100P/BWRR100D
- Series Name : BW™ RIGRAT
- Keypad Type : One Button
- Application : Confined Space|Fence Line|Routine Maintenance|Turnarounds|Zone Declassification
