压力传感器

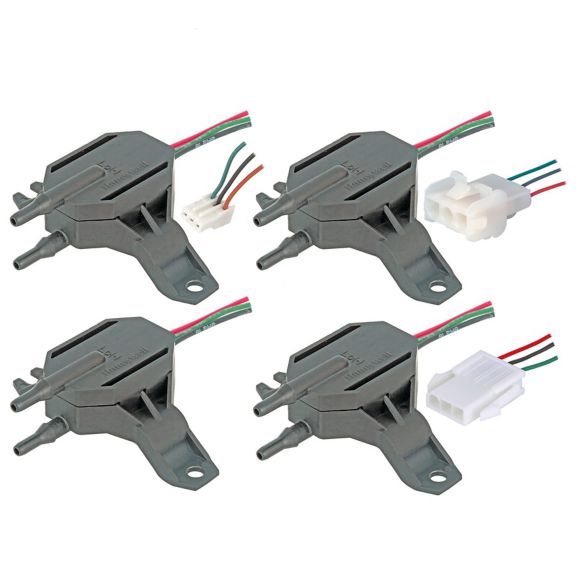

TruStability™ DPR 系列
补偿式。As low as ±1.25 %FSS TEB. 超低压（压差计）。模拟输出
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
压力范围
- ±1.6 mbar 至 ±25 bar，±160 Pa 至 ±2.5 kPa，±0.5 inH20 至 ±10 inH20
TruStability® DPR 系列是压阻式硅压力传感器，提供比率式模拟输出，用于在指定的满量程压力跨度和温度范围内提供压力读数。这些传感器能够利用电路板上的专用集成电路 (ASIC) 对传感器零位、灵敏度、温度系数和非线性执行全面的校准和温度补偿。
经校准的压力输出值以约 1 kHz 的速率进行更新，以便模拟。在 -20°C 至 70°C [-4°F 至 185°F] 的温度范围内校准 DPR 系列。该传感器可在 5.0 Vdc 单电源条件下工作。
这些传感器可测量差压或表压。坚固耐用的外壳、其行业标准的安装配置以及灵活的电气终端选择，旨在承受恶劣的应用环境。
传感器的内部诊断功能可检测大多数内部故障，包括爆破传感器，并可减少系统中冗余传感器的需求。DPR 系列旨在与非腐蚀和非离子气体配合使用，例如空气和其他干燥气体。
提供定制校准、额外的压力范围或选项，以扩展这些传感器的性能，使其能够应对非腐蚀、非离子液体。全部产品均按照 ISO 9001 标准设计和制造。
