UBP-10 Series
Universal bipolar strain gauge. 24 to 32 single voltage supply to inline wiring. Programmable gain settings. Wide adjustment range on the zero
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.

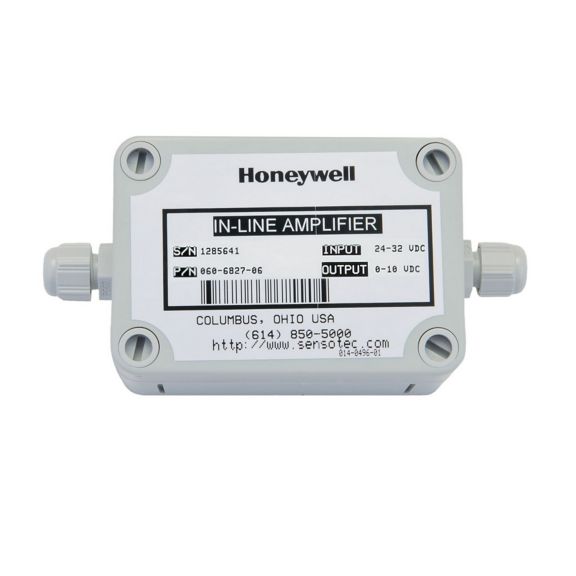

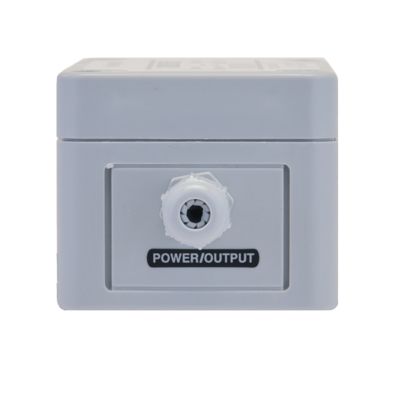

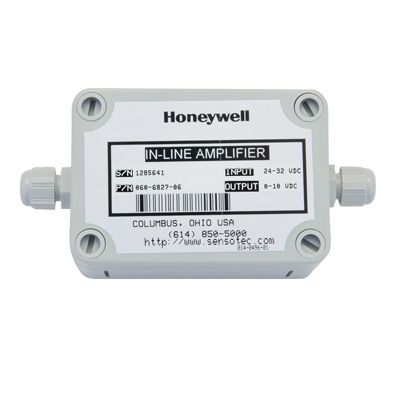

The Model UBP-10 bi-polar in-line amplifier supplies a highly-regulated, bridge excitation voltage for the transducer and converts the millivolt signal of the transducer to a ±10 Vdc signal. (-)OUTPUT is biased approximately 1/3 of the supply voltage. The output will swing 0 Vdc to 10 Vdc around the (-)OUTPUT reference voltage. The universal, in-line amplifier features three selectable excitation voltages, programmable gain settings, wide adjustment range on the zero and a buffered solid-state shunt cal relay for quick calibration.
Features
- For replacement only, not to be used in new design
- Strain gage sensor amplifier
- ±5 Vdc output
- ±15 Vdc supply voltage
- NEMA 4 housing
- Selectable excitation voltages: 3 V, 5 V, or 10 V @ 70 mA
- Increases signal-to-noise ratio in noisy environments
- Effects of voltage drops in excitation sources are eliminated
- Signals may be sent to the data systems from low impedence sources
