basic switches
ZD Series
Up to 3 A ac & dc (UL, cUL, ENEC, CQC). Variety of actuators, forces, terminations. Mounting includes 9,5 mm centers & integral pins
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

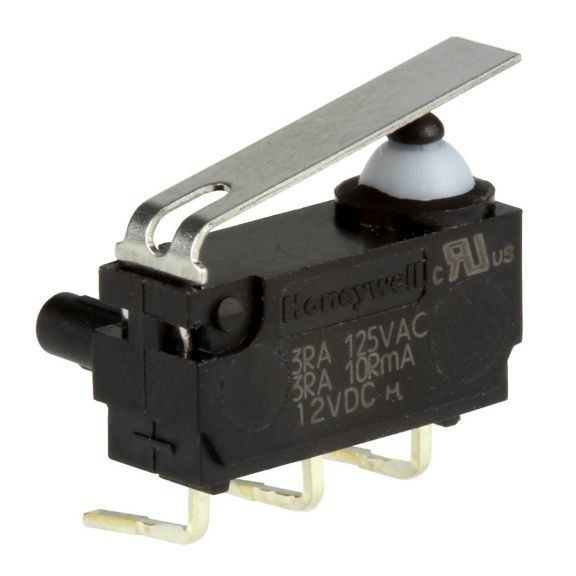

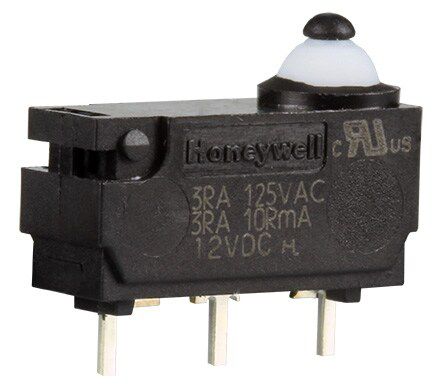

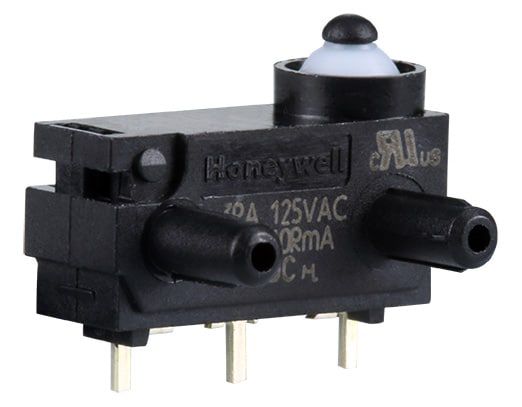

Honeywell’s MICRO SWITCH ZD Series is a sealed subminiature snap action switch. Although small in size, the ZD Series is rated for controlling electrical loads ranging from logic-level (low current, low voltage) to limited power-duty switching (up to 3 A/125 Vac).

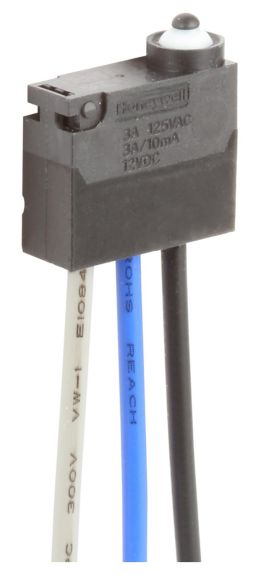

The switch when provided with integral wire leads is sealed to IP67 and is suitable for applications where the switch assembly would be exposed to liquids or particulate contaminates in the environment.
