压力传感器

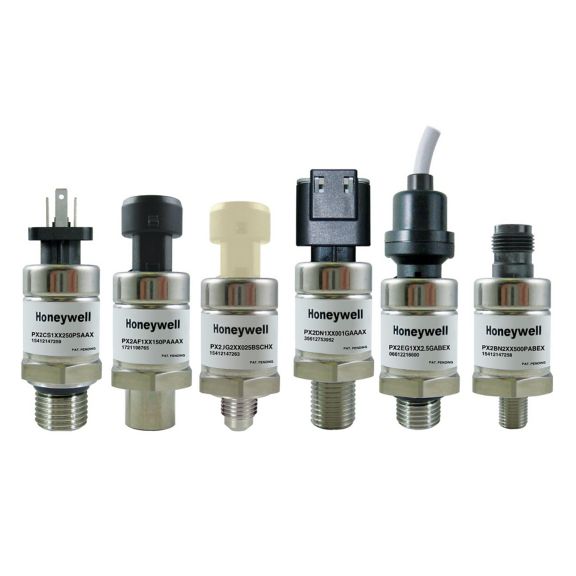

PX2 系列
放大式。±2 %FSS TEB. 绝压、密封表压、通气表压。外壳材料：304 SS；范围：1 bar 至 70 bar、100 kPa 至 7 Mpa、15 psi 至 1000 psi
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
霍尼韦尔 PX2 系列重载压力传感器产品组合丰富，包括各种可配置的压力传感器。这些传感器采用基于 ASIC（专用集成电路）信号调理的压阻传感技术，并配置不锈钢外壳。PX2 系列利用电路板上的 ASIC 进行全面的校准和对传感器零位、灵敏度、温度影响和非线性度进行补偿。此类传感器可测量绝压、密封表压或通气表压。绝压型传感器设有内部真空参考值，输出值与绝压成正比；密封表压型传感器设有内部压力参考值，大小等于以海平面为基准的一个大气压强；通气表压型传感器测量相对于环境压力的压力。这些产品均通过 RoHS 认证，并按照 ISO 9001 标准设计和制造。
PX2 系列提供三种压力范围：
- 1 bar 至 70 bar
- 100 kPa 至 7 MPa
- 15 psi 至 1000 psi
为客户创造价值
- 介质兼容性：常见的 HFC（氢氟烃）制冷剂，如 R410A 和 R134A；下一代较低全球变暖潜能 (GWP) 制冷剂，如 R448A (Solstice® N40)、R32 和 R1234ZE；发动机油；石油基液压液；DOT 3 制动液；以及干空气。对于氨和其他腐蚀性介质，请参见霍尼韦尔 SPT 系列。
- 更持久耐用：PX2 系列可在暖通空调/制冷和空气压缩机应用常见的恶劣环境中工作。该系列传感器至少可承受 1000 万次压力循环，入口保护等级高达 IP69K。
