M-Class Mark II Industrial Printer

M-Class Mark II Industrial Printer

Overview

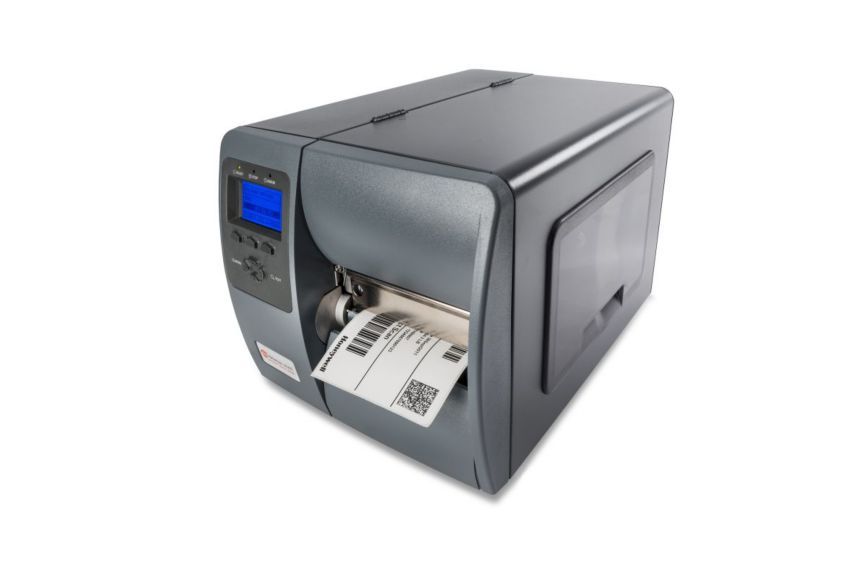

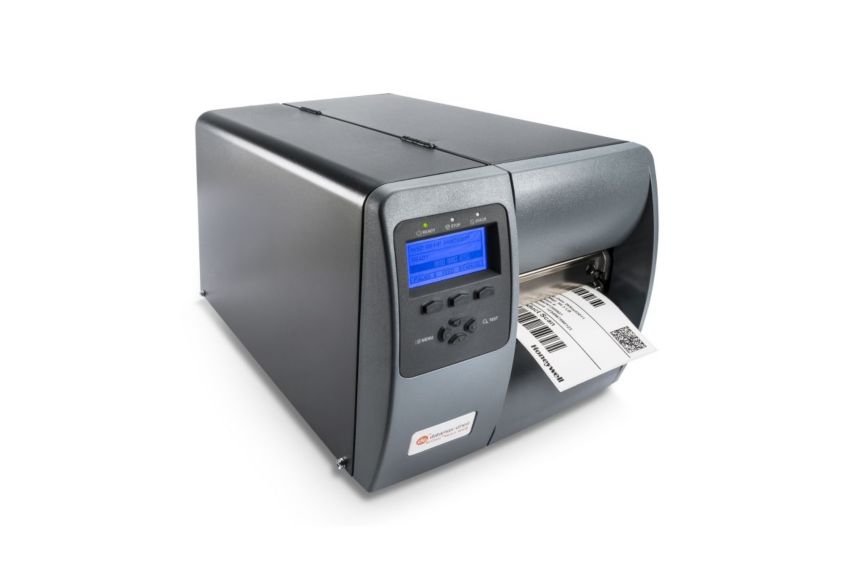

m class mk ii gallery image
This product is discontinued. We may offer firmware, drivers and manuals for your convenience, as well as online tech support. If you require additional support, please contact us using the links above.
Product Discontinuation Date:January 31, 2022
Service & Support Discontinuation Date: December 31, 2025

M-Class™: Mark II printers offer great value for warehouse, healthcare, logistics and retail applications. They keep up with high-label-demand applications, boasting faster performance than many printers in their class. M-Class printers also feature a modular design and field-installable options to cut back on downtime and improve efficiency.

  • Five-button, 128 x 64 LCD graphical backlit display is easy to read, enabling user-friendly label configuration setup.
  • Rugged construction features a precision die-cast aluminum frame.
  • Multi-language menu available in English, Spanish, German, Italian, and French.
  • Utilizes widely used DPL and supports PL-Z (Zebra), PL-I (Intermec), and PL-B (Boca) printer command languages for easy emulations.
  • Modular design allows for user field-upgradeable options like thermal transfer and internal rewinder.

M-Class Mark II Compact Industrial Printers are easy on your budget, while providing industrial printing performance in a compact footprint.They’:re perfect for warehouse, healthcare, logistics and retail applications. Measuring 259 x 257 x 462 mm (10.21 x 10.10 x 18.19 in), the smaller footprint is ideal for users who need the power of industrial printers but must consider space limitations.M-Class Mark II printers also reduces your total cost of ownership with easy-to-maintain components. They’:re versatile, too. Use them in a wide variety of applications with a range of media compatibility, connectivity, emulation support and options.

Specifications at a glance:

  • Printhead: Direct thermal: optional thermal transfer
  • Resolution: 8 dots/mm (203 dpi): optional 12 dots/mm (300 dpi)
  • Media roll width: 19 mm (0.75 in) to 118.1 mm (4.65 in)
  • Maximum print width: 108 mm (4.25 in)
  • Print speed: •: M-4206: 152 mms (6 ips), 8 mmps (203 dpi) •: M-4210: 254 mms (10 ips), 8 mmps (203 dpi) •: M-4308: 203 mms (8 ips), 12 mmps (300 dpi)
  • Communication ports: Serial, parallel, USB: optional Ethernet-wired LAN 10/100: optional wireless 802.11b/g#
Specifications

Applications & Compatibility

  • Compatible Software
    • DMX NetManager

Technical Specifications

  • Compatible Drivers
    • Windows NT
    • Windows Vista
    • Windows XP
  • Downloadable Font Type
    • Bitmap
    • TrueType
  • Linear Barcodes
    • Codabar
    • Code 11
    • Code 128
    • Code 3 of 9
    • Code 93
    • EAN-13
    • EAN-8
    • HIBC
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Planetcode
    • Plessey
    • Postnet
    • Std 2 of 5
    • Telepen
    • UCC/EAN Code 128
    • UPC 2- and 5-Digit Addendums
    • UPC-A
    • UPC-E
  • Resident Font
    • CG Triumvirate
    • OCR-A
    • OCR-B
  • Print Speeds
    • 10 ips
    • 6 ips
    • 8 ips
  • Print Method
    • Direct Thermal
    • Thermal Transfer
  • Resolutions
    • 203 dpi
    • 300 dpi
  • Printer Media Type
    • Label
    • Ribbon
  • Wireless Communication
    • RFID
    • WiFi
  • Printer Command Language
    • PL-B
    • PL-I
    • PL-Z
  • Memory
    • 8 MB Flash/16 MB RAM
  • Operating Frequency
    • 47 - 63 Hz
  • RFID Specifications
    • No RFID

Features

  • Door Options
    • Standard
  • Features
    • 5 Languages
    • Easy to Upgrade
    • Rugged
  • 2D Barcodes
    • Aztec
    • Codablock
    • Code 16k
    • Data Matrix
    • GS1 Databar
    • MaxiCode
    • Micro PDF417
    • PDF417
    • QR-Code
    • TLC 39
    • USD-8

Dimensions & Weight

  • Overall Dimensions
    • 10.21 x 10.10 x 18.19 in
    • 25.9 x 25.7 x 46.2 cm
  • Maximum Ribbon Length
    • 1,476 ft
    • 300 ft
    • 450 ft
    • 984 ft

Electrical Specifications

  • Operating Voltage
    • 180 - 264 V AC
    • 90 - 132 V AC

Operating Characteristics

  • Operating Temperature
    • 4 - 35 °C
    • 40 - 95 °F

Overview

  • Warranty Duration
    • 1 yr
  • Brand
    • Honeywell

Applications & Compatibility

  • Compatible Software
    • DMX NetManager

Technical Specifications

  • Compatible Drivers
    • Windows NT
    • Windows Vista
    • Windows XP
  • Downloadable Font Type
    • Bitmap
    • TrueType
  • Linear Barcodes
    • Codabar
    • Code 11
    • Code 128
    • Code 3 of 9
    • Code 93
    • EAN-13
    • EAN-8
    • HIBC
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Planetcode
    • Plessey
    • Postnet
    • Std 2 of 5
    • Telepen
    • UCC/EAN Code 128
    • UPC 2- and 5-Digit Addendums
    • UPC-A
    • UPC-E
  • Resident Font
    • CG Triumvirate
    • OCR-A
    • OCR-B
  • Print Speeds
    • 10 ips
    • 6 ips
    • 8 ips
  • Print Method
    • Direct Thermal
    • Thermal Transfer
  • Resolutions
    • 203 dpi
    • 300 dpi
  • Printer Media Type
    • Label
    • Ribbon
  • Wireless Communication
    • RFID
    • WiFi
  • Printer Command Language
    • PL-B
    • PL-I
    • PL-Z
  • Memory
    • 8 MB Flash/16 MB RAM
  • Operating Frequency
    • 47 - 63 Hz
  • RFID Specifications
    • No RFID

Features

  • Door Options
    • Standard
  • Features
    • 5 Languages
    • Easy to Upgrade
    • Rugged
  • 2D Barcodes
    • Aztec
    • Codablock
    • Code 16k
    • Data Matrix
    • GS1 Databar
    • MaxiCode
    • Micro PDF417
    • PDF417
    • QR-Code
    • TLC 39
    • USD-8

Dimensions & Weight

  • Overall Dimensions
    • 10.21 x 10.10 x 18.19 in
    • 25.9 x 25.7 x 46.2 cm
  • Maximum Ribbon Length
    • 1,476 ft
    • 300 ft
    • 450 ft
    • 984 ft

Electrical Specifications

  • Operating Voltage
    • 180 - 264 V AC
    • 90 - 132 V AC

Operating Characteristics

  • Operating Temperature
    • 4 - 35 °C
    • 40 - 95 °F

Overview

  • Warranty Duration
    • 1 yr
  • Brand
    • Honeywell
  • Compatible Software : DMX NetManager
  • Compatible Drivers : Windows NT|Windows Vista|Windows XP
  • Door Options : Standard
  • Features : 5 Languages|Easy to Upgrade|Rugged
  • Overall Dimensions : 10.21 x 10.10 x 18.19 in|25.9 x 25.7 x 46.2 cm
  • Downloadable Font Type : Bitmap|TrueType
  • Linear Barcodes : Codabar|Code 11|Code 128|Code 3 of 9|Code 93|EAN-13|EAN-8|HIBC|Industrial 2 of 5|Interleaved 2 of 5|Planetcode|Plessey|Postnet|Std 2 of 5|Telepen|UCC/EAN Code 128|UPC 2- and 5-Digit Addendums|UPC-A|UPC-E
  • Resident Font : CG Triumvirate|OCR-A|OCR-B
  • Print Speeds : 10 ips|6 ips|8 ips
  • Print Method : Direct Thermal|Thermal Transfer
  • Resolutions : 203 dpi|300 dpi
  • 2D Barcodes : Aztec|Codablock|Code 16k|Data Matrix|GS1 Databar|MaxiCode|Micro PDF417|PDF417|QR-Code|TLC 39|USD-8
  • Maximum Ribbon Length : 1,476 ft|300 ft|450 ft|984 ft
  • Printer Media Type : Label|Ribbon
  • Wireless Communication : RFID|WiFi
  • Printer Command Language : PL-B|PL-I|PL-Z
  • Memory : 8 MB Flash/16 MB RAM
  • Operating Frequency : 47 - 63 Hz
  • Operating Voltage : 180 - 264 V AC|90 - 132 V AC
  • Operating Temperature : 4 - 35 °C|40 - 95 °F
  • Warranty Duration : 1 yr
  • Brand : Honeywell
  • RFID Specifications : No RFID
Data Sheet
Name
Description
File Size
Date
Size
M-Class Mark II Industrial Printers Data Sheet
application/pdf 234.18 KB
7/14/2021
234.18 KB
Manuals and Guides
Name
Description
File Size
Date
Size
M-Class Mark II RFID Quick Start Guide
application/pdf 189.58 KB
7/14/2021
189.58 KB
M-Class Mark II RFID Ready
application/pdf 5.4 MB
7/14/2021
5.4 MB
Media Retainer
application/pdf 352.99 KB
7/14/2021
352.99 KB
Low Media Sensor for Printers Installation and Calibration Instructions- English (p/n: LMS-EN-IN Rev A)
application/pdf 515.27 KB
7/14/2021
515.27 KB
M-Class Mark II Media Hubs
application/pdf 3.98 MB
7/14/2021
3.98 MB
M-Class Mark II Printer Quick Start Guide (92-2482-01 Rev E)
application/pdf 586.58 KB
7/14/2021
586.58 KB
M-Class Mark II Cutter
application/pdf 1.32 MB
7/14/2021
1.32 MB
M-Class Mark II Operator's Manual
application/pdf 1.95 MB
7/14/2021
1.95 MB
M-Class Mark II Thermal Transfer
application/pdf 1013.93 KB
7/14/2021
1013.93 KB
M-Class Mark II Present Sensor
application/pdf 821.15 KB
7/14/2021
821.15 KB
Static Brush
application/pdf 880.15 KB
7/14/2021
880.15 KB
Class Series II Programmer's Manual
application/pdf 3.06 MB
7/14/2021
3.06 MB
M-Class Mark II Parts Catalog
application/pdf 698.44 KB
7/14/2021
698.44 KB
M-Class Mark II Rewinder
application/pdf 1.79 MB
7/14/2021
1.79 MB
M-Class Mark II DMXNET/rfNET III Card Option
application/pdf 2.79 MB
7/14/2021
2.79 MB
M-Class Mark II Peel & Present
application/pdf 4.36 MB
7/14/2021
4.36 MB
M-Class Mark II DMXNET/rfNET II Card Option
application/pdf 2.81 MB
7/14/2021
2.81 MB
Regulatory Information
Name
Description
File Size
Date
Size
Regulatory Sheet: M-Class Printer (MCLASS-ML-RS-01 Rev A)
application/pdf 1.68 MB
6/4/2022
1.68 MB
Name
Description
File Size
Date
Size
M-Class Mark II RFID Quick Start Guide
application/pdf 189.58 KB
7/14/2021
189.58 KB
M-Class Mark II RFID Ready
application/pdf 5.4 MB
7/14/2021
5.4 MB
Media Retainer
application/pdf 352.99 KB
7/14/2021
352.99 KB
Low Media Sensor for Printers Installation and Calibration Instructions- English (p/n: LMS-EN-IN Rev A)
application/pdf 515.27 KB
7/14/2021
515.27 KB
M-Class Mark II Media Hubs
application/pdf 3.98 MB
7/14/2021
3.98 MB
M-Class Mark II Printer Quick Start Guide (92-2482-01 Rev E)
application/pdf 586.58 KB
7/14/2021
586.58 KB
Regulatory Sheet: M-Class Printer (MCLASS-ML-RS-01 Rev A)
application/pdf 1.68 MB
6/4/2022
1.68 MB
M-Class Mark II Cutter
application/pdf 1.32 MB
7/14/2021
1.32 MB
M-Class Mark II Operator's Manual
application/pdf 1.95 MB
7/14/2021
1.95 MB
M-Class Mark II Thermal Transfer
application/pdf 1013.93 KB
7/14/2021
1013.93 KB
M-Class Mark II Present Sensor
application/pdf 821.15 KB
7/14/2021
821.15 KB
Static Brush
application/pdf 880.15 KB
7/14/2021
880.15 KB
Class Series II Programmer's Manual
application/pdf 3.06 MB
7/14/2021
3.06 MB
M-Class Mark II Parts Catalog
application/pdf 698.44 KB
7/14/2021
698.44 KB
M-Class Mark II Rewinder
application/pdf 1.79 MB
7/14/2021
1.79 MB
M-Class Mark II DMXNET/rfNET III Card Option
application/pdf 2.79 MB
7/14/2021
2.79 MB
M-Class Mark II Peel & Present
application/pdf 4.36 MB
7/14/2021
4.36 MB
M-Class Mark II DMXNET/rfNET II Card Option
application/pdf 2.81 MB
7/14/2021
2.81 MB
M-Class Mark II Industrial Printers Data Sheet
application/pdf 234.18 KB
7/14/2021
234.18 KB
Showing 1 to 3 of 3 parts
Product Number
Part Number
Description
Leaf Category
Thumbnail
DPR78-2767-01
KIT DISPLAY AND BEZEL
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-printers-internal-components
DPR78-2767-01
KIT DISPLAY AND BEZEL
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-printers-internal-components
OPT78-2737-01
Peel and Present, 203 DPI - M-4206 & M-4210
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-m-class-mk-ii-printer
OPT78-2737-01
Peel and Present, 203 DPI - M-4206 & M-4210
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-m-class-mk-ii-printer
PHD20-2225-01
PRINT HEAD 300DPI M-4306
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-m-class-mk-ii-printer
PHD20-2225-01
PRINT HEAD 300DPI M-4306
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-m-class-mk-ii-printer
