Fall Protection Parts & Accessories

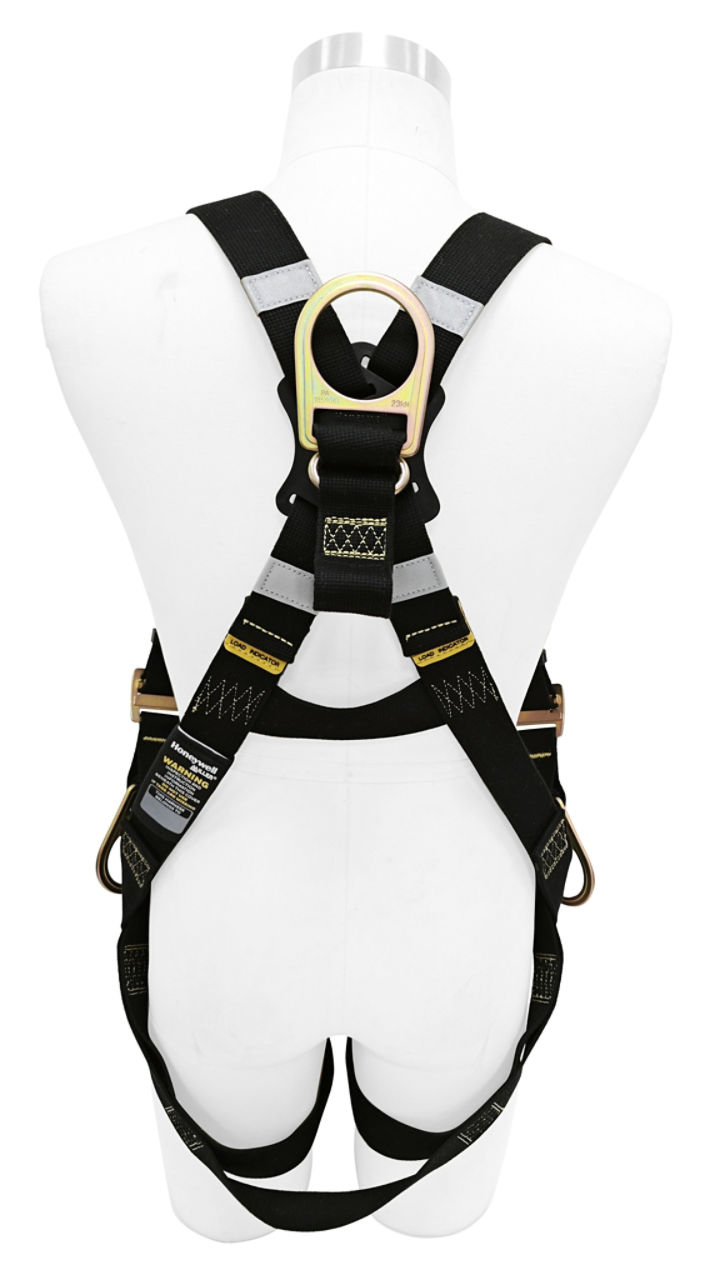

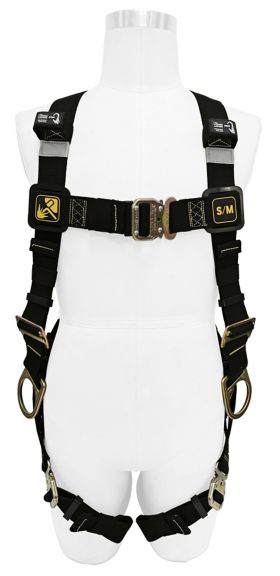

Miller H500 Welding Harness
The H500 welding harness is designed for working at height when welding, soldering or grinding. It protects against fire, burns, and fumes. Miller’s cost-effective H500 series offers heat-resistant and flame-retardant capabilities..
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features & Benefits;
- NEW! Specially formulated Heat Resistant and flame-retardant (FR) webbing flexes to accommodate movement and body contours for optimum comfort around legs
- and shoulders.
- User-friendly resettable lanyard keepers. Allows users to attach lanyard when not in use.
- Optimized label protection with self-contained and practical Velcro®-label FR material pouch.
- Easy visual sizing
- Outside personalization tag
- Dedicated SRL web link for easy attachment of personal SRLs
- Clearly identifiable smart impact indicators for hassle-free inspection.
- mproved visible stitch pattern for easy inspection.
- Offer with Quick Connect (QC) buckles on legs and chest.
- Maximum worker weight capacity rated OSHA and CSA 420 lb. and ANSI 310 lb.
- Meet OSHA1926.502, Certified ANSI Z359.11-2021 and CSA Z259.10-2018 CLASS A&A,P
Specifications
Others
- Attachment Point Type
- D-ring
- Webbing Type
- FR webing
- Webbing Material
- Para-Aramid inside. Meta-Aramid, Modacrylic and FR viscose outside
- Webbing Color
- Black
- Webbing Breaking Strength
- 22
- 5000
- Water Permeability
- Yes
- Suspension Loops
- No
- Sub-Pelvic Strap
- Yes
- Standards
- Meets OSHA 1926.502, Certified ANSI Z359.11-2021, CSA Z259.10-2018 Class A, AP.
- Shoulder Strap Buckle Type
- Friction Adjuster
- Shoulder Strap Buckle Material
- Galvanizing finish alloy steel
- Shoulder Strap Buckle Breaking Strength
- 5000 lb (22kN) US Pound BRP
- Shoulder Padding
- No
- Rescue Loops
- No
- RFID
- No
- Product Weight
- 4.0 - 4.3
- lb
- Product Family
- Miller H500 Full Body Harness Welding
- Number of D-Rings
- 3
- Maximum Lifespan
- 5 Years years
- Leg Strap Buckle Type
- Quick-Connect (QC)
- Leg Strap Buckle Material
- Galvanized finish alloy steel
- Leg Strap Buckle Breaking Strength
- 22
- 5000
- Lanyard Rings
- Yes
- Harness Style
- Vest style
- Harness Size
- S/M, UNIV, XXL
- D-Ring Material
- Galvanized finish alloy steel
- D-Ring Locations
- Back
- Side
- Chest Strap Buckle Type
- Quick-Connect (QC)
- Chest Strap Buckle Material
- Galvanized finish alloy steel
- Chest Strap Buckle Breaking Strength
- 22
- 5000
Others
- Attachment Point Type
- D-ring
- Webbing Type
- FR webing
- Webbing Material
- Para-Aramid inside. Meta-Aramid, Modacrylic and FR viscose outside
- Webbing Color
- Black
- Webbing Breaking Strength
- 22
- 5000
- Water Permeability
- Yes
- Suspension Loops
- No
- Sub-Pelvic Strap
- Yes
- Standards
- Meets OSHA 1926.502, Certified ANSI Z359.11-2021, CSA Z259.10-2018 Class A, AP.
- Shoulder Strap Buckle Type
- Friction Adjuster
- Shoulder Strap Buckle Material
- Galvanizing finish alloy steel
- Shoulder Strap Buckle Breaking Strength
- 5000 lb (22kN) US Pound BRP
- Shoulder Padding
- No
- Rescue Loops
- No
- RFID
- No
- Product Weight
- 4.0 - 4.3
- lb
- Product Family
- Miller H500 Full Body Harness Welding
- Number of D-Rings
- 3
- Maximum Lifespan
- 5 Years years
- Leg Strap Buckle Type
- Quick-Connect (QC)
- Leg Strap Buckle Material
- Galvanized finish alloy steel
- Leg Strap Buckle Breaking Strength
- 22
- 5000
- Lanyard Rings
- Yes
- Harness Style
- Vest style
- Harness Size
- S/M, UNIV, XXL
- D-Ring Material
- Galvanized finish alloy steel
- D-Ring Locations
- Back
- Side
- Chest Strap Buckle Type
- Quick-Connect (QC)
- Chest Strap Buckle Material
- Galvanized finish alloy steel
- Chest Strap Buckle Breaking Strength
- 22
- 5000
- Attachment Point Type : D-ring
- Webbing Type : FR webing
- Webbing Material : Para-Aramid inside. Meta-Aramid, Modacrylic and FR viscose outside
- Webbing Color : Black
- Webbing Breaking Strength : 22|5000
- Water Permeability : Yes
- Suspension Loops : No
- Sub-Pelvic Strap : Yes
- Standards : Meets OSHA 1926.502, Certified ANSI Z359.11-2021, CSA Z259.10-2018 Class A, AP.
- Shoulder Strap Buckle Type : Friction Adjuster
- Shoulder Strap Buckle Material : Galvanizing finish alloy steel
- Shoulder Strap Buckle Breaking Strength : 5000 lb (22kN) US Pound BRP
- Shoulder Padding : No
- Rescue Loops : No
- RFID : No
- Product Weight : 4.0 - 4.3|lb
- Product Family : Miller H500 Full Body Harness Welding
- Number of D-Rings : 3
- Maximum Lifespan : 5 Years years
- Leg Strap Buckle Type : Quick-Connect (QC)
- Leg Strap Buckle Material : Galvanized finish alloy steel
- Leg Strap Buckle Breaking Strength : 22|5000
- Lanyard Rings : Yes
- Harness Style : Vest style
- Harness Size : S/M, UNIV, XXL
- D-Ring Material : Galvanized finish alloy steel
- D-Ring Locations : Back|Side
- Chest Strap Buckle Type : Quick-Connect (QC)
- Chest Strap Buckle Material : Galvanized finish alloy steel
- Chest Strap Buckle Breaking Strength : 22|5000
