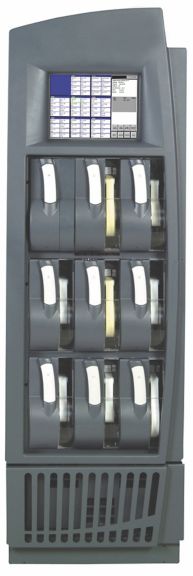

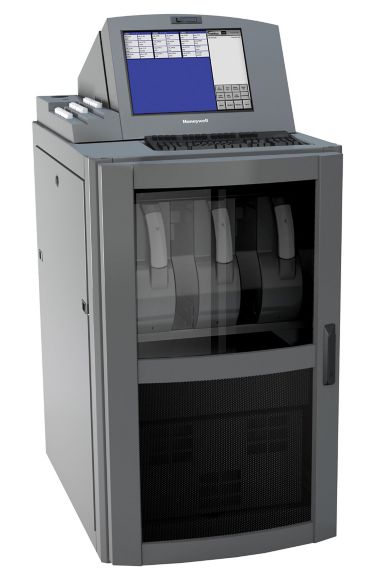

Vertex™ 多点有毒气体监控系统
将最先进的 Chemcassette®、软件和光学技术整合到一个具有多达 72 个气体探测点的灵活、可靠监控系统中。 • •
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
产品概述
多达 72 点连续气体探测。Vertex 将最先进的 Chemcassette、软件和光学技术整合到一个灵活易用并且可靠的气体监控系统中。
灵活
您的 Vertex™ 系统的启动运行只需 8 个监控点即可。Vertex™ 可随着监控需要的变化进行扩展，直至为您提供多达 72 个连续气体监控点。您可以将采样点布置在距离系统 400 英尺（120 米）内的任何位置。可选择通用分析仪模块和/或热解分析仪。
可靠
Vertex™ 提供强大的内置系统冗余度作为标准装备，以
有效地防止停机。
易于使用
配备使数据访问更方便的触摸屏
通过 CD-ROM 或网络将软件更新到所有系统组件上
无需使设备离线即可编辑配置文件和 检索数据
射频识别标签 (RFID) 可确保 Chemcassettes 安装到 适当的编程分析仪中，从而消除人为失误
在线帮助系统
安全
多达 72 点连续气体探测。Vertex 将最先进的 Chemcassette、软件和光学技术整合到一个灵活易用并且可靠的气体监控系统中。
灵活
您的 Vertex™ 系统的启动运行只需 8 个监控点即可。Vertex™ 可随着监控需要的变化进行扩展，直至为您提供多达 72 个连续气体监控点。您可以将采样点布置在距离系统 400 英尺（120 米）内的任何位置。可选择通用分析仪模块和/或热解分析仪。
可靠
Vertex™ 提供强大的内置系统冗余度作为标准装备，以
有效地防止停机。
- 备用泵和内部电源模块
- Chemcassette® 技术可提供气体事件的有形展示
- 系统数据备份。如果主数据采集 PC 机出现故障，分析仪可继续监控、记录数据并报警
- 耐滴帽可保护系统免受顶部渗漏的影响
- 管线完整性自动泄漏测试选项
易于使用
配备使数据访问更方便的触摸屏
通过 CD-ROM 或网络将软件更新到所有系统组件上
无需使设备离线即可编辑配置文件和 检索数据
射频识别标签 (RFID) 可确保 Chemcassettes 安装到 适当的编程分析仪中，从而消除人为失误
在线帮助系统
安全
- 多级密码保护
- 无需使设备离线即可重新配置安全设置
- Vertex™ 占地面积小、点密度更大，可降低您的 每点监控成本
- 每台分析仪负责 8 个点，降低了 Chemcassette® 的成本。
- 与其他连续探测器相比，最大化的 72 点系统 可提供更低的每点监控成本
- 一个系统可监控多达九大类 40 种以上的气体
- 您可以将样本分配到多台分析仪上
- 采用成本效益高的 XP Chemcassettes®，可提供 长达三个月的连续监控
- Chemcassettes® 的更换得到简化并可以进行自动光学检验
- 无需动态校准
- 无需流量平衡测试
- 易于从前置面板访问分析仪、泵、电源和 触摸屏
- 采用了带有整体视频的屏幕交互式电子手册
- 内置可配置 PLC，有 176 个继电器触点可供选择
- 标准 OPC 接口，可轻松集成到您现有的工厂自动化系统或 HMI 中
- 可选 Ethernet/CIP、LonWorks®、DeviceNetTMDF1 接口、Profibus、Modbus Plus、Modbus/TCP、ControlNet 或隔离式 4-20mA 输出
- 可选 Chemcam 相机可查看本地痕迹或 远程痕迹，以作为气体事件的证据。图像以电子方式保存以备将来 检索。
- 可选的远程控制/查看软件可实现 监控器屏幕在远程 PC 上总体可视化。
