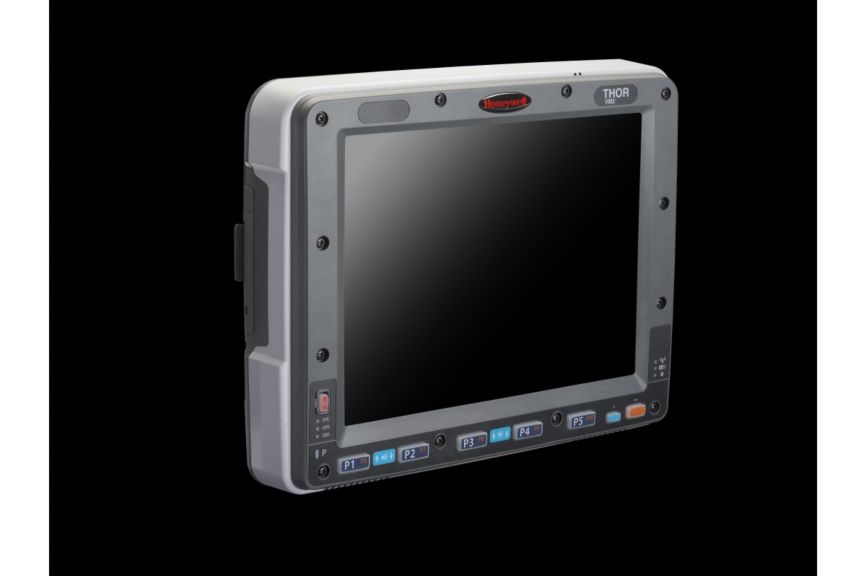

Thor VM2 车载电脑
Thor VM2 车载电脑
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product is discontinued. We may offer firmware, drivers and manuals for your convenience, as well as online tech support. If you require additional support, please contact us using the links above.
Product Discontinuation Date:October 1, 2021
Service & Support Discontinuation Date: December 31, 2026
Product Replacement:
ThorTM VM3 车载电脑
Thor™: VM2 计算机非常适合仓库、码头和堆场的过程自动化作业。融合了 24.63 厘米（9.7 英寸）显示屏和突破性创新技术，为您的工作流快速带来价值。
- 消除了车辆电池用尽造成的维修花费和生产率的降低：在点火开关被关断后的某个时间点（可自定义），设备可以配置为自动进入待机或休眠状态，节省操作时间，同时消除了仓库管理的顾虑。
- 将最易磨损和被破坏的两个部件——键盘和触摸屏，设计为用户可更换的模块化配件，减少了投资和维护成本：以备用前面板取代备用计算机，进一步降低了使用者的系统投资。
- 像使用笔记本电脑扩展坞底座一样，只要几秒钟就能实现主机安装和拆卸，且具有高工业等级的耐用性和密封性：随着工作量的变化，动态转换使用者和计算机，可大大提升工作效率；同时支持计算机从一辆车快速转移安装到另一辆上，耗时只有标准时间的 1/6，大大降低了维护成本。
您的供应链工作人员可能面临严峻的条件和独特的挑战 Thor VM2 计算机让他们能从容应对与调整，同时提升工作流效率并保持低成本。Thor VM2 计算机允许将另一个尺寸适中的显示屏连接至 Thor VM 线路，从而增加了多样化功能（例如：可编程的多功能键和广阔的室外作业中的 WWAN 连接功能）。VM2 计算机的设计还便于应用程序开发。它支持多种基于 Windows 的操作系统，与许多行业标准的终端仿真应用程序相兼容。与 Thor VM1 和 VM3 计算机一样， VM2 计算机也采用突破性创新技术，为您的工作流快速带来价值。智能底座让用户在工作量变更时能够快速将计算机从一台叉车移动至另一台叉车，实现动态换班，在节约支持与维护成本方面获得立竿见影的效果。现场可更换前面板：将最易磨损和受损的两个部件——键盘和触摸屏，设计为用户可更换的模块化配件，减少了投资和维护成本。该功能还为备用计算机更换备用前面板，从而减少成本。点火控制允许您设置电源管理参考值，节省启动时间并延长车辆电池寿命。
Specifications
Features
- 应用
- 配送
Dimensions
- 整体尺寸
- 10.6 x 8.4 x 2.1 英寸
- 26.8 x 21.4 x 5.3 厘米
Network
- 蓝牙规格
- v2.0
Software & Firmware
- 操作系统
- Windows 7 Pro
- Windows CE 6.0
- Windows Embedded Standard
Hardware
- 连接接口
- CANbus
- RF 天线
- RS-232
- USB
- 音频
- 显示屏尺寸
- 24.6 厘米
- 9.7 英寸
- 显示器分辨率
- 1024 x 768
- 处理器
- Intel® Atom Z530 1.6GHz
Environmental
- 工作湿度
- 5 - 95 %
- 工作温度
- - 20 - 50 °C
- - 4 - 122 °F
- 存储温度范围
- - 20 - 50 °C
- - 4 - 122 °F
Standards & Approvals
- 抗振性
- MIL-STD-810F
Service Terms
- 保修期限
- 1 年
ERP
- 品牌
- Honeywell
Features
- 应用
- 配送
Dimensions
- 整体尺寸
- 10.6 x 8.4 x 2.1 英寸
- 26.8 x 21.4 x 5.3 厘米
Network
- 蓝牙规格
- v2.0
Software & Firmware
- 操作系统
- Windows 7 Pro
- Windows CE 6.0
- Windows Embedded Standard
Hardware
- 连接接口
- CANbus
- RF 天线
- RS-232
- USB
- 音频
- 显示屏尺寸
- 24.6 厘米
- 9.7 英寸
- 显示器分辨率
- 1024 x 768
- 处理器
- Intel® Atom Z530 1.6GHz
Environmental
- 工作湿度
- 5 - 95 %
- 工作温度
- - 20 - 50 °C
- - 4 - 122 °F
- 存储温度范围
- - 20 - 50 °C
- - 4 - 122 °F
Standards & Approvals
- 抗振性
- MIL-STD-810F
Service Terms
- 保修期限
- 1 年
ERP
- 品牌
- Honeywell
- 应用 : 配送
- 整体尺寸 : 10.6 x 8.4 x 2.1 英寸|26.8 x 21.4 x 5.3 厘米
- 蓝牙规格 : v2.0

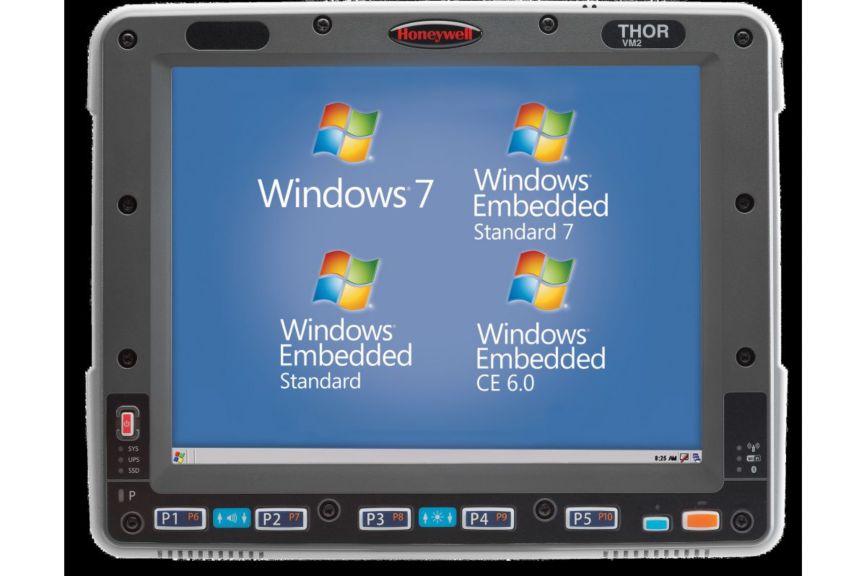

- 操作系统 : Windows 7 Pro|Windows CE 6.0|Windows Embedded Standard
- 连接接口 : CANbus|RF 天线|RS-232|USB|音频
- 显示屏尺寸 : 24.6 厘米|9.7 英寸
- 显示器分辨率 : 1024 x 768
- 处理器 : Intel® Atom Z530 1.6GHz
- 工作湿度 : 5 - 95 %
- 工作温度 : - 20 - 50 °C|- 4 - 122 °F
- 存储温度范围 : - 20 - 50 °C|- 4 - 122 °F
- 抗振性 : MIL-STD-810F
- 保修期限 : 1 年
- 品牌 : Honeywell
