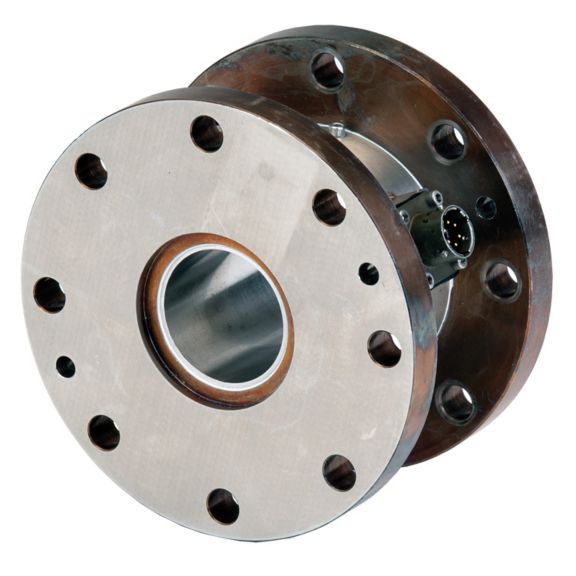

Model QFFH-9
Flange Reaction Torque Transducer
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Model QFFH-9 flange reaction torque transducer is designed for installation between test pieces such as motors, switches, axles or shafts and their mounting plate. These models operate and are calibrated in both directions. Stainless steel construction enhances durability in harsh, industrial environments. These models have no moving parts and utilize four bonded strain gages on a special machined portion of the transducer to achieve a maximum non-linearity of 0.1% over a wide dynamic range. Typical applications include tire braking, motor dynamometers, friction-skid testing, and twist measurement.
Features
- 3,000in-lb to 24,000in-lb capacities
- 0.1% non-linearity and hysteresis
- Wide dynamic range
- High frequency response
- Stainless steel construction
