压力传感器
Super TJE 型

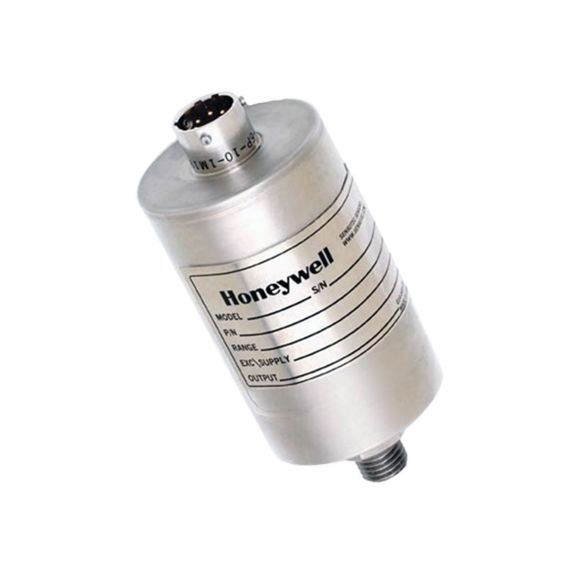

超精密超级 TJE 压力传感器可以承受超高温和高压测量要求。
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Super TJE 型是目前最准确的工业压力传感器。Super TJE 的精度达到 0.05 %，零温度误差小于 0.0015 % FS/°F。我们把一个不锈钢双绝热罩外壳与我们的专有“真正的表压”第二隔膜焊接在一起，使应力计电路与大气污染隔离，来维持这些规格。型号 STJE 采用 17-4 PH 不锈钢以及 15-5 PH 不锈钢，分别可测量 2,000 psi 的压强和 2,000 及以上的压强范围。其具有 5 Vdc 或 10 Vdc 和 4 mA 到 20 mA 的高输出选项，使数据系统不再需要放大器电路插板。可选的签名校准芯片通过 SC 型 4 或 12 电路数字指示器提供自动装置的校准信息。Super TJE 型计量器是一个基于应变计的传感器，并拥有独特的“真正的表压”设计，该设计采用了二次焊接的不锈钢隔膜，把传感器线路与大气污染完全隔离开来。这个设计的膜片以大气压力为参考，提供稳定零位。绝对 Super TJE 型具有全焊接真空基准室，确保长期稳定性。
特征
- 10 psig至 7500 psig（绝压）
- 17-4 PH 不锈钢接液材料的适用压力范围 ≤ 2,000 psi 的压强，而 15-5 PH 不锈钢接液材料的压力范围则为 ＞2,000 psi
- 隔热的双壁结构
- 增强的温度稳定性
- 精度：0.05%
- 提供本身所具备的安全选项
