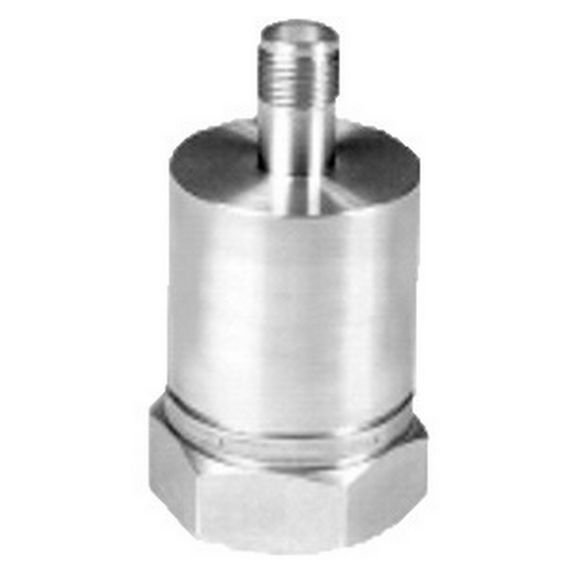

加速度计
MAQ13型号系列
通用电荷输出型微型加速度计。顶部出线。10-32 UNF 内螺纹安装孔。±800 G 动态范围
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Model MAQ13 电荷输出型微型加速度计适用于工业试验和自动化环境中，包括实验室试验、模态研究，以及可能出现高温、空间有限，且需要薄型或较高固有频率单元的试验车间。MAQ13 是自生成的阻抗式传感器，没有内置电子元件且无需外部电源便可操作。
这些装置通常连接到本机电荷放大器，在低温环境下尽可能就近安装。MAQ13 型固有频率高，频率量程宽，对不同温度范围的温度响应敏感度低。感震器在机械方面与安装底座分离，因此应变灵敏度低。不锈钢材料为非磁性材料，不易受磁场干扰。这些特征连同密封结构一起，可确保获得准确且可靠的数据。
特征
- 体积小
- 电荷输出 (pC/G)
- 安装频率：30 kHz
- 常规用途
- 适用于高温度
- 侧面可带Microdot连接器
- 无内部电子元件
