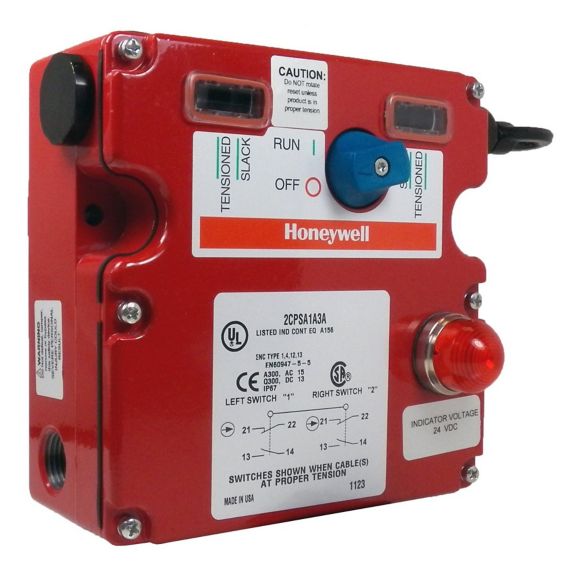

安全限位开关
2CPS 系列
双向拉绳。UL、CSA、CE、SIL3。IP67. NEMA 1, 4, 12, 13. 银触点和金触点
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
霍尼韦尔的 MICRO SWITCH CPS 系列拉绳式安全开关配备随时可用的紧急停止信号，比使用多个紧急停止按钮的解决方案更具性价比。CPS 系列拉绳安全开关的内部机制在松弛拉绳（拉）和拉紧拉绳上均有内部机构锁存器。
1CPS 系列适用于拉绳跨度≤ 76 m [250 英尺] 的应用。它是针对典型自动化系统的更短运行时间或区域保护的一个经济型解决方案。2CPS 系列适合拉升跨度 ≤ 152 m [500 英尺] 的应用，如仓库中的长输送线。
电缆张力窗口中央点的电缆指示正确的张力，提供轻松安装。当执行电缆处于正确的张力下，且复位旋钮设为 RUN 时，直接断开开关触点保持关闭状态。当执行电缆拉动、松弛或断裂时，凸轮正向断开 NC（常闭）开关触点。
当此电缆拉动、松弛或断裂时，速动行程操作几乎同时会导致开关触点更改状态，并以机械方式锁存。NC 开关触点保持打开状态，直至通过适当地调整电缆张力并手动旋转复位旋钮以对 CPS 进行复位。
当直接开关触点断开，辅助触点也将致动（断开的触点关闭）。辅助触点与正向开关触点为电气隔离。这些 NO（常开）触点可用于监控或信令。
