速度传感器

SNDH-T 系列

霍尔效应正交输出速度和方向传感器。电源电压范围：4.5 至 18 Vdc。1 Hz 至 15 kHz 工作频率

Overview
SNDH-T Series
支持 购买渠道 联系我们

经销商库存

SNDH-T 系列是双差分霍尔效应传感器，使用相移 90 度的正交输出信号提供速度与方向信息。目标方向由输出超前/迟滞的相位差得出。

该产品设计用于要求极高分辨率的应用场合，支持 1 kHz 至 15 kHz 的大分辨率范围以及大气隙。BiCMOS（双极互补金属氧化半导体）霍尔效应技术采用了先进的数字信号处理技术进行动态偏移消除，在绝大多数条件中均可提供增强的空气间隙性能和相位差精度。

封装 IC（集成电路）封装技术增进了输出相位差公差范围的精度。本产品封装坚固耐用，多数环境测试条件及强化的 EMI（电磁干扰）能满足在汽车发动机舱内使用要求的防护等级。提供多个连接选项，包括直接引线或集成 AMP 超级密封或AMP Jr. Timer 连接器的整体式连接。封装设计包括一个用于压力应用的 O 型密封圈以及一个固定的安装法兰。

Data Sheet
Name
Description
File Size
Date
Size
SNDH-T Series Quadrature General Industrial Speed and Direction Sensors
SNDH-T Series Quadrature General Industrial Speed and Direction Sensors
application/pdf 703.95 KB
11/17/2022
703.95 KB
Manuals and Guides
Name
Description
File Size
Date
Size
Speed Sensors Range Guide
Speed Sensors - Range Guide
application/pdf 3.62 MB
11/7/2024
3.62 MB
Speed Sensor Comparison
Speed Sensor Comparison
application/pdf 481.16 KB
11/17/2022
481.16 KB
Transportation Range Guide
Transportation Range Guide
application/pdf 16.68 MB
9/26/2022
16.68 MB
CAD Model
Name
Description
File Size
Date
Size
SNDH-T4C-G01 CAD Model.zip
SNDH-T4C-G01 CAD Model.zip
application/zip 45.41 KB
7/16/2021
45.41 KB
SNDH-T4L-G01 CAD Model.zip
SNDH-T4L-G01 CAD Model.zip
application/zip 91.24 KB
7/16/2021
91.24 KB
Brochure
Name
Description
File Size
Date
Size
Partners Providing Technical Safety and Productivity Solutions
Partners Providing Technical Safety and Productivity Solutions -
application/pdf 1.04 MB
4/11/2024
1.04 MB
Application Note
Name
Description
File Size
Date
Size
Platform Vehicles
Platform Vehicles
application/pdf 628.05 KB
12/20/2022
628.05 KB
Recreational Vehicles
All-Terrain Vehicle Solutions
application/pdf 803.57 KB
12/20/2022
803.57 KB
Forestry Vehicles
Forestry Vehicles
application/pdf 1.05 MB
12/20/2022
1.05 MB
Construction Vehicles
Construction Vehicles -
application/pdf 984.29 KB
12/20/2022
984.29 KB
Agricultural Vehicles
Agricultural Vehicles
application/pdf 1.11 MB
4/11/2024
1.11 MB
Defence Ground Vehicles
Defence Ground Vehicles -
application/pdf 872.87 KB
6/14/2023
872.87 KB
Sensors and Switches in Front Loaders
Sensors and Switches in Front Loaders
application/pdf 2.54 MB
12/20/2022
2.54 MB
Sensors and Switches in Mobile Cranes
Sensors and Switches in Mobile Cranes
application/pdf 1.97 MB
12/20/2022
1.97 MB
eBook
Name
Description
File Size
Date
Size
Military Defense Solutions eBook
Military Defense Solutions eBook
application/pdf 15.17 MB
2/17/2025
15.17 MB
High-Performing Solutions for Rugged Environments
Redefining Road Rail & Rugged Applications
application/pdf 28.35 MB
12/20/2022
28.35 MB
Product Photo
Name
Description
File Size
Date
Size

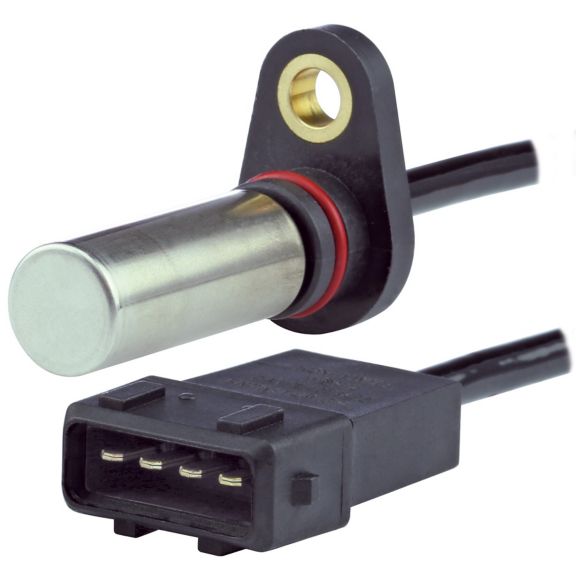

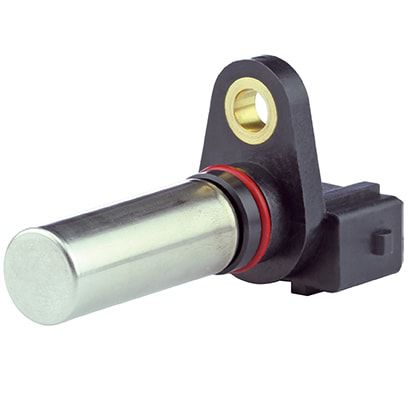

SNDH-T4C-G01 lowres photo
SNDH-T4C-G01 lowres photo
image/jpeg 14.58 KB
7/16/2021
14.58 KB
SNDH-T4P-G02 lowres photo
SNDH-T4P-G02 lowres photo
image/jpeg 26.07 KB
7/16/2021
26.07 KB
SNDH-T4C-G01 highres photo
SNDH-T4C-G01 highres photo
image/jpeg 130.12 KB
7/16/2021
130.12 KB
SNDH-T4P-G02 highres photo
SNDH-T4P-G02 highres photo
image/jpeg 209.13 KB
7/16/2021
209.13 KB
SNDH-T4L-G01 highres photo
SNDH-T4L-G01 highres photo
image/jpeg 119.68 KB
7/16/2021
119.68 KB

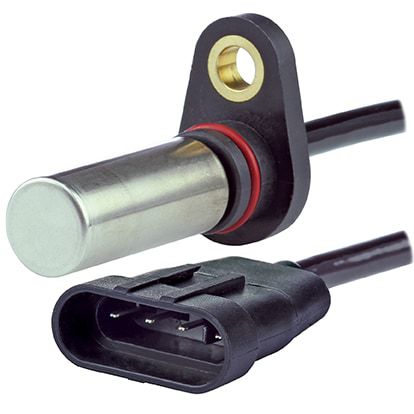

SNDH-T4P-G01 lowres photo
SNDH-T4P-G01 lowres photo
image/jpeg 25.95 KB
7/16/2021
25.95 KB
SNDH-T4P-G01 highres photo
SNDH-T4P-G01 highres photo
image/jpeg 220.42 KB
7/16/2021
220.42 KB

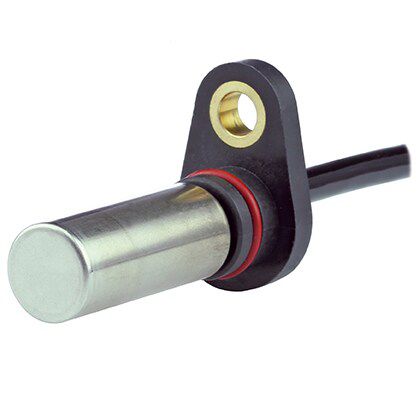

SNDH-T4L-G01 lowres photo
