磁性位置传感器

RPN 系列

其使用带磁性偏置的霍尔效应集成电路 (IC) 在设定的工作范围内检测执行器轴的旋转运动。

Overview
RPN Series
支持 购买渠道 联系我们

经销商库存

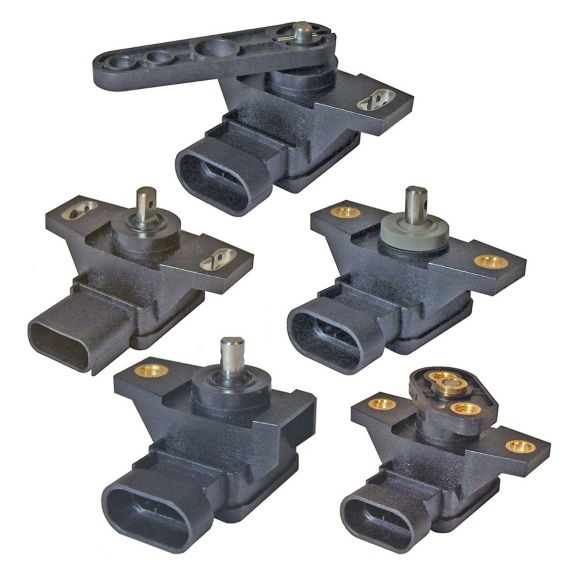

RPN 系列旋转位置传感器使用了带磁偏置的霍尔效应集成电路 (IC) 在设定的工作范围内测量执行器转轴的旋转运动。执行器转轴的旋转会改变集成电路与磁体之间的相对位置。由此所致的磁通量密度变化会转化为线性输出。集成电路连同调理和保护电路以及两个永磁体会密封在一个 IP67 等级或更高等级的坚固封装之中，即便在最为恶劣的环境中也经久耐用。

固态霍尔效应技术提供非接触式的操作、使用寿命长、低转矩执行以及减少磨损机制。八种工作范围（50°、60°、70°、90°、120°、180°、270° 以及 360°）均可耐受超行程，可以在绝大多数常见应用中使用。五种不同电压和八种不同输出配置（单位为 mA 或 Vdc）提高了与各种控制系统的兼容性。

两种版本所提供的双输出在可能需要额外输出（这种情况下需要冗余和备份）时使用。另一个潜在应用领域包括针对指示器使用第一个输出，而针对控制系统使用第二个输出。

提供多种杠杆版本。易于安装的传感器拥有一个安装法兰（带有两个圆形或椭圆形安装孔）。所有产品均配有 AMP 或 Deutsch 插座。
