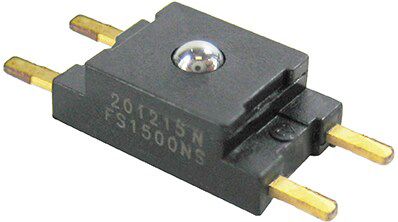

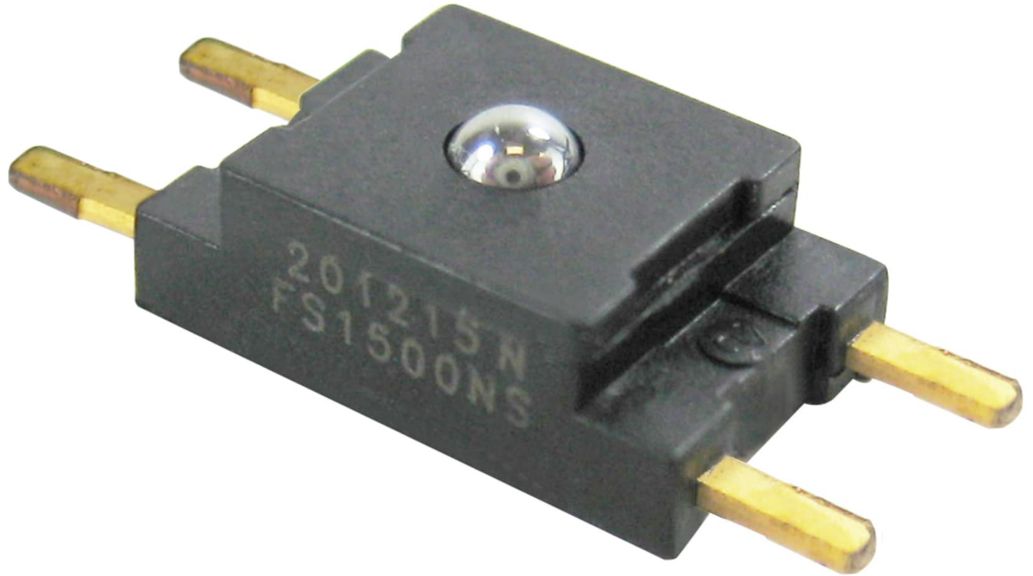

force sensors
FSS 系列
力范围：0 N 至 20 N。非放大式、非补偿式。典型输出：360 mV。低偏差。体积小
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
FSS 系列触力传感器用于以经济高效的价格在紧凑型商业级封装中提供精确可靠的力传感性能。该传感器采用经过证明的传感技术，该技术使用专用的压阻式微加工硅传感元件。低功耗、非放大、非补偿式惠斯通电桥电路设计可在力值范围内提供内在稳定的毫伏输出。
触力传感器的工作原理是当电阻受力弯曲时，植入于硅中的压阻效应的电阻值会增加。该传感器通过不锈钢球，将应用中的力直接集中到硅传感元件上。电阻值将随所受力的数值成比例地变化。电路电阻值的变化将导致相应的毫伏输出电平变化。
传感器封装设计集成了模块化结构。创新弹性连接技术与工程模制塑料的使用可实现高达三倍额定压力的过压能力。不锈钢球可以提供出色的机械稳定性，并能适应各种应用。
在 50°C [122°F] 下进行的平均故障周期 (MCTF) 可靠性测试中，FSS 系列传感器可以提供 2000 万次操作。该测试用于确定在满量程状态下出现故障前传感器可以执行的操作次数。
Specifications
请登录以访问更多文档。
登录后，您可以访问账户中的其他文档。
产品彩页
Name
Description
File Size
Date
Size
FSS Series Low Profile Force Sensors
application/pdf 350.85 KB
8/13/2025
350.85 KB
用户手册
Name
Description
File Size
Date
Size
Sensor Evaluation Board (SEB) User Instructions
application/pdf 1.53 MB
8/13/2025
1.53 MB
àirflow, Force and Pressure Sensors Product Range Guide
application/pdf 4.24 MB
10/2/2025
4.24 MB
安装指南
Name
Description
File Size
Date
Size
FSS Series Low Profile Force Sensors
application/pdf 372.38 KB
8/13/2025
372.38 KB
手册
Name
Description
File Size
Date
Size
Embedded Products in Hospital Applications
application/pdf 4.71 MB
9/23/2025
4.71 MB
Embedded Products For Hospital Applications - Brochure
application/pdf 2.34 MB
10/22/2025
2.34 MB
Sensors and Switches for Medical Applications Brochure
application/pdf 10.1 MB
8/14/2025
10.1 MB
应用说明
Name
Description
File Size
Date
Size
Sensors and Switches - Solutions for Medical Applications Application Note
application/pdf 1.04 MB
1/16/2026
1.04 MB
产品照片
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Embedded Products in Hospital Applications
application/pdf 4.71 MB
9/23/2025
4.71 MB
Sensor Evaluation Board (SEB) User Instructions
application/pdf 1.53 MB
8/13/2025
1.53 MB
Embedded Products For Hospital Applications - Brochure
application/pdf 2.34 MB
10/22/2025
2.34 MB
Sensors and Switches for Medical Applications Brochure
application/pdf 10.1 MB
8/14/2025
10.1 MB
àirflow, Force and Pressure Sensors Product Range Guide
application/pdf 4.24 MB
10/2/2025
4.24 MB
FSS Series Low Profile Force Sensors
application/pdf 350.85 KB
8/13/2025
350.85 KB
Sensors and Switches - Solutions for Medical Applications Application Note
application/pdf 1.04 MB
1/16/2026
1.04 MB
FSS Series Low Profile Force Sensors
application/pdf 372.38 KB
8/13/2025
372.38 KB
Name
Description
File Size
Date
Size
Sensor Evaluation Board (SEB) User Instructions
1.53 MB
8/13/2025
àirflow, Force and Pressure Sensors Product Range Guide
4.24 MB
10/2/2025
Embedded Products in Hospital Applications
4.71 MB
9/23/2025
Embedded Products For Hospital Applications - Brochure
2.34 MB
10/22/2025
Sensors and Switches for Medical Applications Brochure
10.1 MB
8/14/2025
Sensors and Switches - Solutions for Medical Applications Application Note
1.04 MB
1/16/2026
Product Number
请 登录后即可查看根据您的帐户可购买的零件编号 登入
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list
FSS005WNSB
Force sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS005WNSB
Force sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS010WNSB
Force sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS010WNSB
Force sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS015WNSB
Force sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS015WNSB
Force sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS020WNSB
触力传感器
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS020WNSB
触力传感器
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS020WNST
Force sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS020WNST
Force sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS1500NGR
Force sensor, 1500 GRAM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS1500NGR
Force sensor, 1500 GRAM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS1500NGT
Force Sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS1500NGT
Force Sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS1500NSB
Force Pressure
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS1500NSB
Force Pressure
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS1500NSR
Force Sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS1500NSR
Force Sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS1500NST
Force Sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
FSS1500NST
Force Sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-fss-series-1658-ciid-161041
