穿戴式移动数据终端

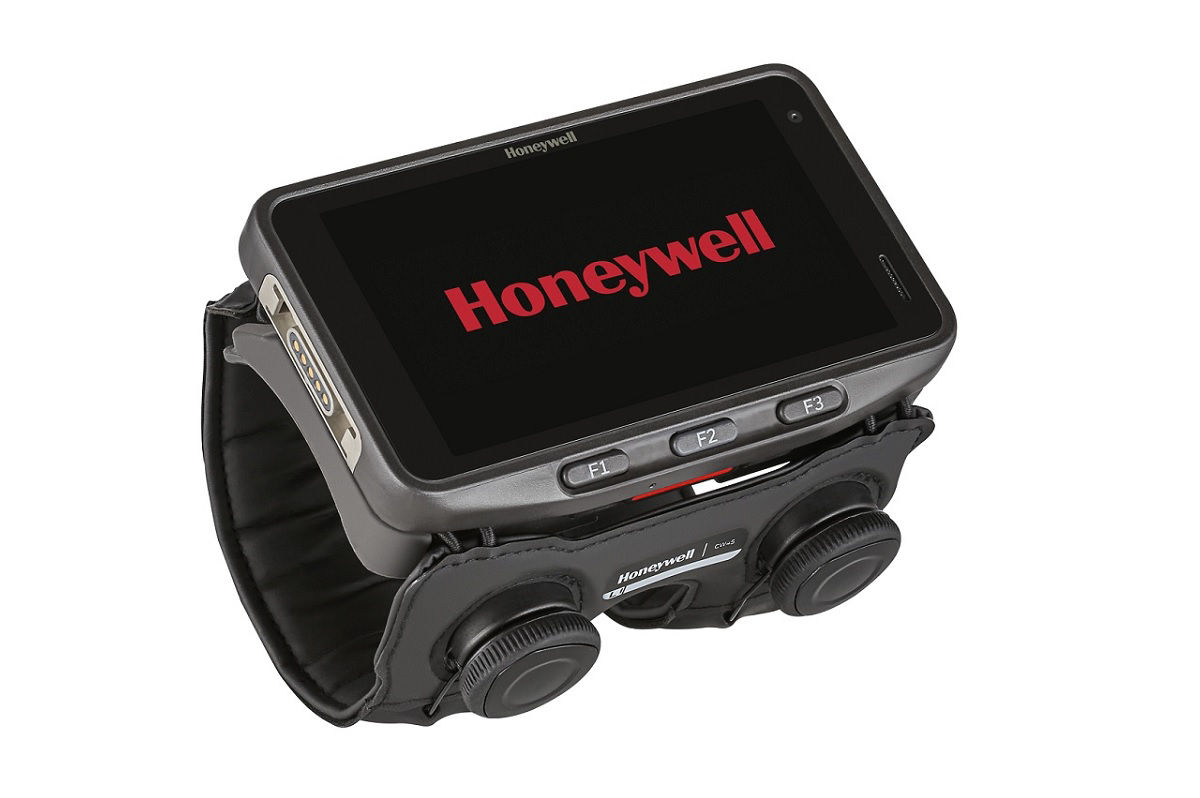

CW45 穿戴式计算机

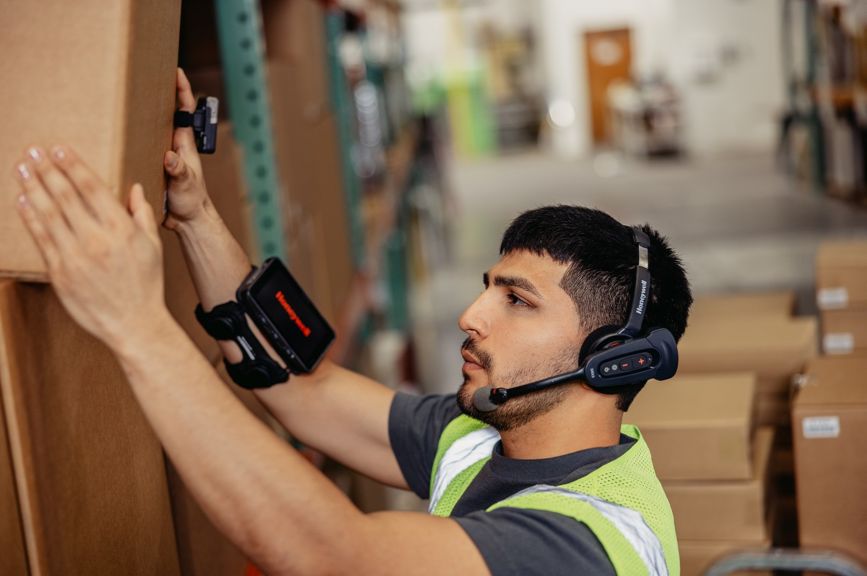

CW45 穿戴式移动计算机为臂磨损应用带来优化的人体工程学和性能。CW45 舒适、功能强大、小巧、耐用且易于使用，可最大程度提高解决方案投资回报。

Overview
CW45 Wearable Computer
支持 联系我们
CW45 穿戴式计算机是一款坚固耐用的高性能工具，以符合人体工程学的方式在活动点展示工作流程信息，并集成执行手头工作所需的工具，从而提高生产力。随时随地为仓库/配送中心、零售、物流和制造领域的一线移动工作人员提供所需的超可靠性能、数据连接和通信。CW45 采用全新设计，舒适、易用、可靠，提供薄型 4.7 英寸高清大显示屏、企业级坚固性和舒适、易于穿戴的配件。CW45 专为那些投资于复杂解决方案并需要一个耐用、稳定、安全的平台来实施这些解决方案的企业而设计。CW45 基于最新一代霍尼韦尔 Mobility Edge™ 平台，具有生命周期长、安全、耐用等优势，可优化长期的解决方案投资回报。
Specifications

Dimensions

  • 整体尺寸
    • 133 毫米 x 86 毫米 x 14 毫米

Scanning Specifications

  • 解码能力
    • 可以使用配对的扫描器配件或通过集成摄像头读取条码

Network

  • 计算机无线通信
    • WLAN、蓝牙、NFC
  • 蓝牙规格
    • 经典和低功耗蓝牙 5.1
  • WLAN 规格
    • Wi-Fi 6 认证：IEEE 802.11 a/b/g/n/ac/ax 和 2*2 MU-MIMO

Memory & Data

  • 内存
    • 6 GB DDR4x RAM，64 GB UFS 闪存

Electrical

  • 电池类型
    • 锂离子

Environmental

  • 存储温度范围
    • -30°C~+70°C（-22°F~+158°F）
  • 工作湿度
    • 5% 至 95%（无凝结）
  • 冷藏
    • 是。最低工作温度为 -20°C

Standards & Approvals

  • 防护等级
    • 防水和防尘等级经独立认证达到 IP65 和 IP67
  • 跌落规格
    • 符合 MIL-STD-810H 标准，可在 -20°C 至 +50°C（-4°F 至 +122°F）条件下承受多次从 1.8 米（6 英尺）高处到水泥地面的跌落
  • 滚动规格
    • 依照 IEC 60068-2-32 规格，可承受超过 1,000 次 0.5 米（1.64 英尺）高处的滚落

Others

  • 特点
    • 小巧舒适的 Mobility Edge™ 穿戴式计算机
  • 应用
    • 仓库
    • 制造
    • 电子商务
    • 配送中心 (DC)
    • 零售
  • 处理器
    • 高通 QCS4290/QCM4290 八核，2.0GHz
  • 电池容量
    • 3400 mAh（标准电池）
    • 6800 mAh（大容量电池）
  • 工作温度
    • -20°C 至 +50°C（-4°F 至 +122°F）
  • 保修期限
    • 1 年工厂保修

Dimensions

  • 整体尺寸
    • 133 毫米 x 86 毫米 x 14 毫米

Scanning Specifications

  • 解码能力
    • 可以使用配对的扫描器配件或通过集成摄像头读取条码

Network

  • 计算机无线通信
    • WLAN、蓝牙、NFC
  • 蓝牙规格
    • 经典和低功耗蓝牙 5.1
  • WLAN 规格
    • Wi-Fi 6 认证：IEEE 802.11 a/b/g/n/ac/ax 和 2*2 MU-MIMO

Memory & Data

  • 内存
    • 6 GB DDR4x RAM，64 GB UFS 闪存

Electrical

  • 电池类型
    • 锂离子

Environmental

  • 存储温度范围
    • -30°C~+70°C（-22°F~+158°F）
  • 工作湿度
    • 5% 至 95%（无凝结）
  • 冷藏
    • 是。最低工作温度为 -20°C

Standards & Approvals

  • 防护等级
    • 防水和防尘等级经独立认证达到 IP65 和 IP67
  • 跌落规格
    • 符合 MIL-STD-810H 标准，可在 -20°C 至 +50°C（-4°F 至 +122°F）条件下承受多次从 1.8 米（6 英尺）高处到水泥地面的跌落
  • 滚动规格
    • 依照 IEC 60068-2-32 规格，可承受超过 1,000 次 0.5 米（1.64 英尺）高处的滚落

Others

  • 特点
    • 小巧舒适的 Mobility Edge™ 穿戴式计算机
  • 应用
    • 仓库
    • 制造
    • 电子商务
    • 配送中心 (DC)
    • 零售
  • 处理器
    • 高通 QCS4290/QCM4290 八核，2.0GHz
  • 电池容量
    • 3400 mAh（标准电池）
    • 6800 mAh（大容量电池）
  • 工作温度
    • -20°C 至 +50°C（-4°F 至 +122°F）
  • 保修期限
    • 1 年工厂保修
  • 特点 : 小巧舒适的 Mobility Edge™ 穿戴式计算机
  • 应用 : 仓库|制造|电子商务|配送中心 (DC)|零售
  • 整体尺寸 : 133 毫米 x 86 毫米 x 14 毫米
  • 解码能力 : 可以使用配对的扫描器配件或通过集成摄像头读取条码
  • 计算机无线通信 : WLAN、蓝牙、NFC
  • 蓝牙规格 : 经典和低功耗蓝牙 5.1
  • WLAN 规格 : Wi-Fi 6 认证：IEEE 802.11 a/b/g/n/ac/ax 和 2*2 MU-MIMO
  • 内存 : 6 GB DDR4x RAM，64 GB UFS 闪存
  • 处理器 : 高通 QCS4290/QCM4290 八核，2.0GHz
  • 电池类型 : 锂离子
  • 电池容量 : 3400 mAh（标准电池）|6800 mAh（大容量电池）
  • 存储温度范围 : -30°C~+70°C（-22°F~+158°F）
  • 工作湿度 : 5% 至 95%（无凝结）
  • 工作温度 : -20°C 至 +50°C（-4°F 至 +122°F）
  • 冷藏 : 是。最低工作温度为 -20°C
  • 防护等级 : 防水和防尘等级经独立认证达到 IP65 和 IP67
  • 跌落规格 : 符合 MIL-STD-810H 标准，可在 -20°C 至 +50°C（-4°F 至 +122°F）条件下承受多次从 1.8 米（6 英尺）高处到水泥地面的跌落
  • 滚动规格 : 依照 IEC 60068-2-32 规格，可承受超过 1,000 次 0.5 米（1.64 英尺）高处的滚落
  • 保修期限 : 1 年工厂保修
