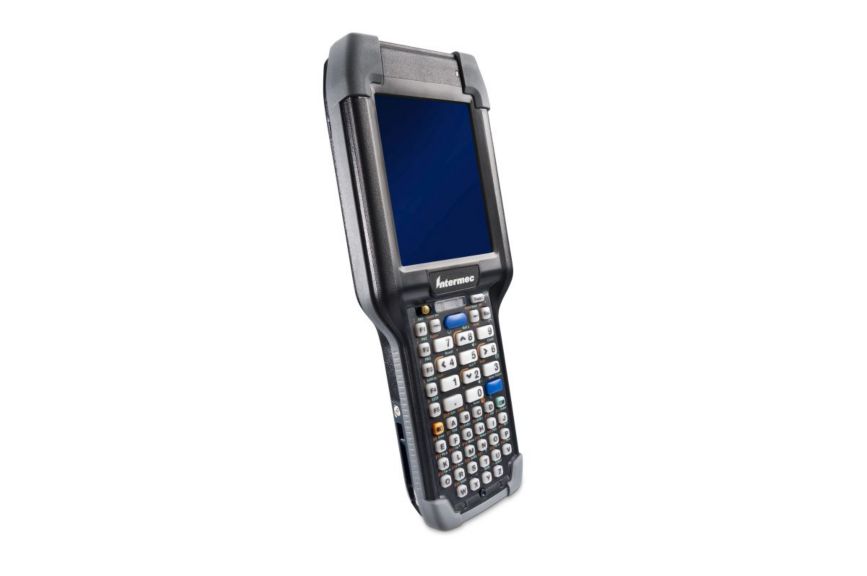

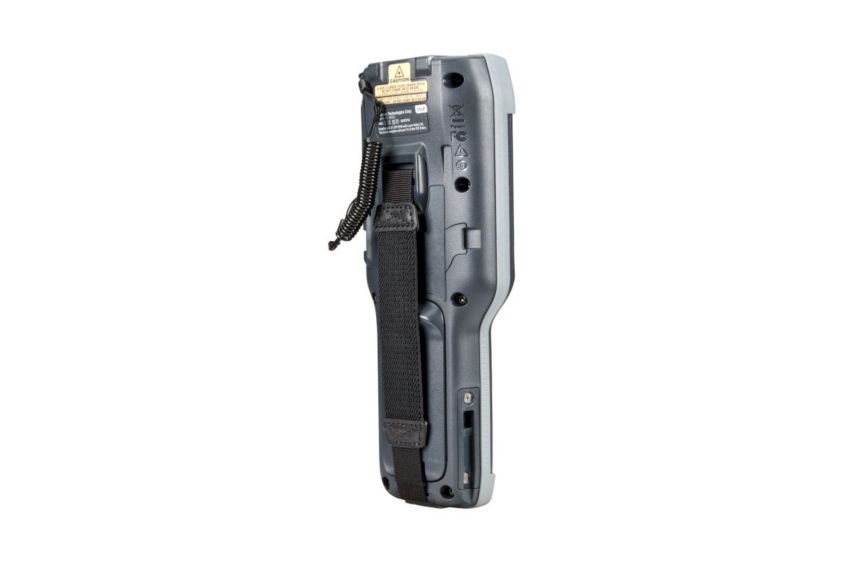

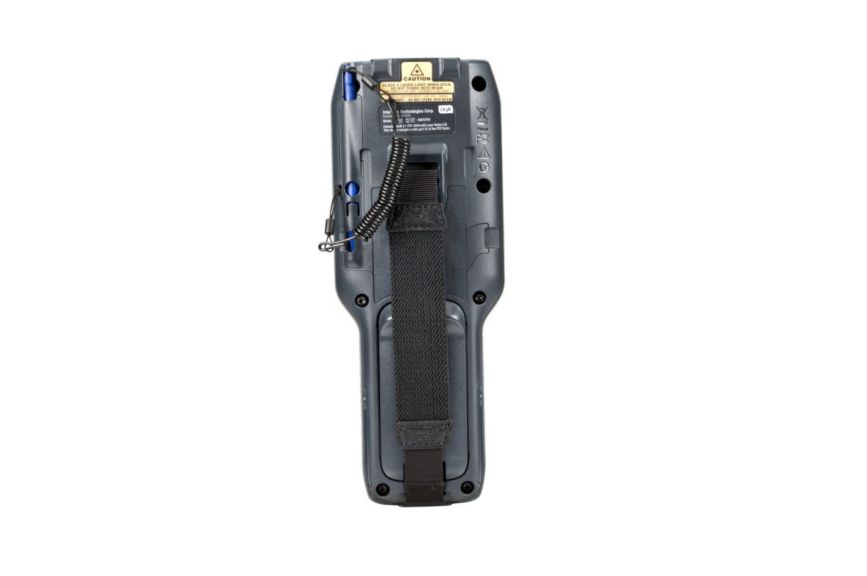

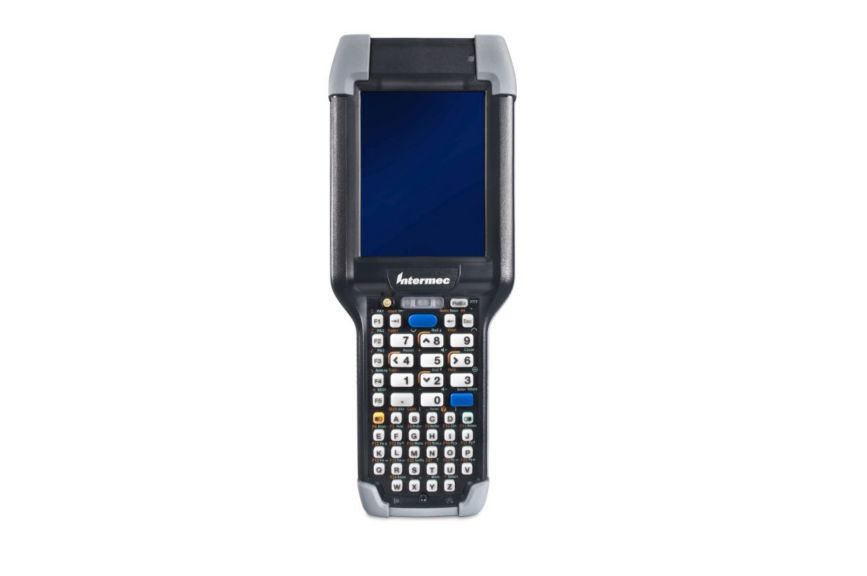

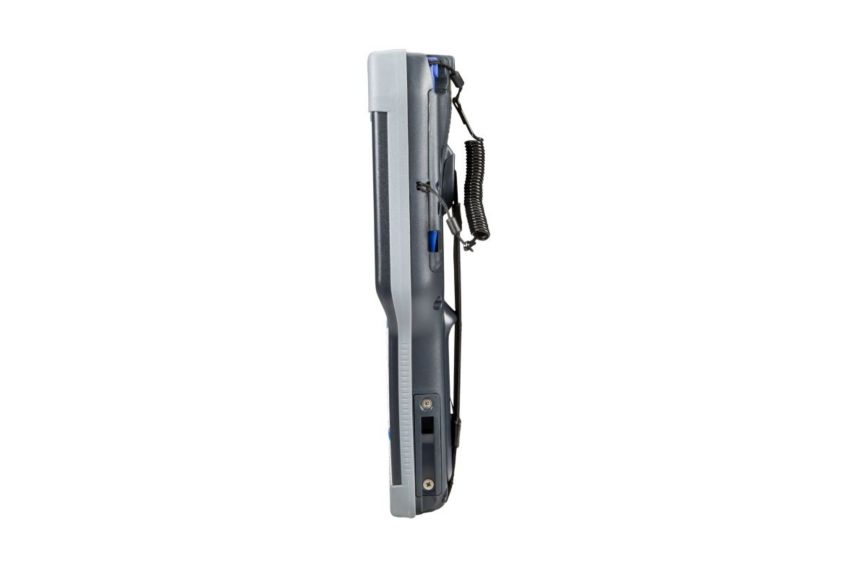

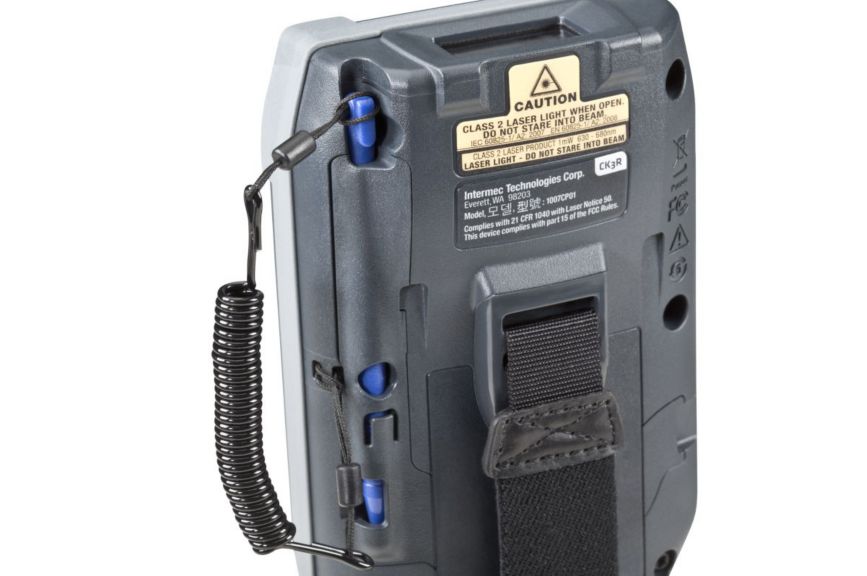

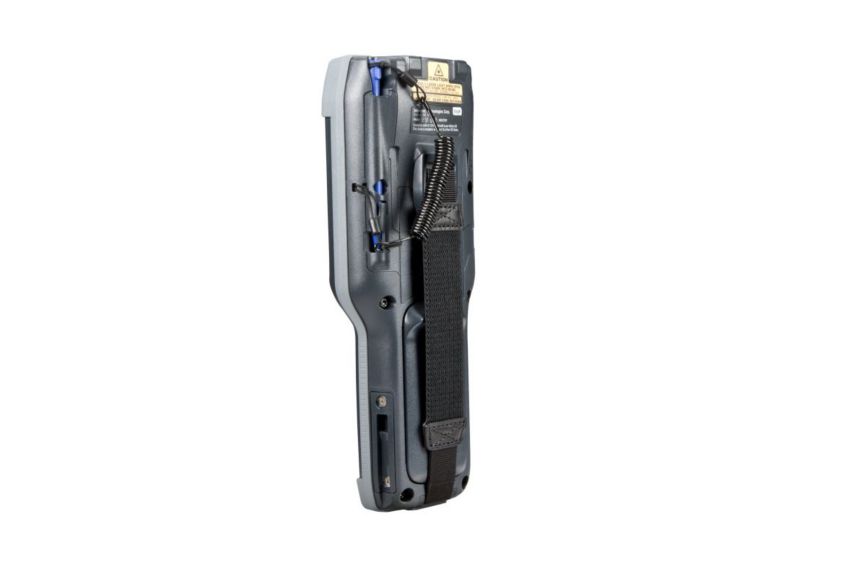

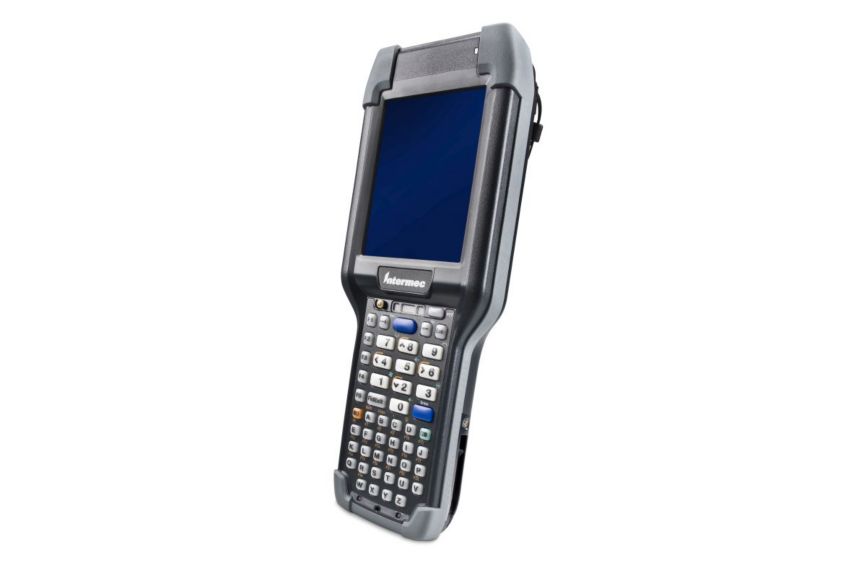

    CK3R 手提电脑

    CK3R 手持式计算机

    Overview
    支持 联系我们
    This product is discontinued. We may offer firmware, drivers and manuals for your convenience, as well as online tech support. If you require additional support, please contact us using the links above.
    Product Discontinuation Date:2021-01-31T00:00:00Z
    Service & Support Discontinuation Date: 2026-12-31T00:00:00Z
    Product Replacement: EDA61K (Scanpal系列) 移动数据终端

    易于使用。易于实施。CK3R 移动计算机采用坚固、节能的设计，扫描快速准确，可帮助贵公司享受到自动化的各种好处。

    • 配备节能型 1 GHz 多引擎 Texas Instruments 处理器、256MB RAM 和 512MB 闪存。
    • 支持行业标准的 802.11a/b/g/n 及蓝牙®:无线技术无线通信，可进行适应性通信。
    • 行业领先的电池性能，可持续整个班次甚至更长时间供电——不再受更换电池或充电的干扰。
    • 在整个工作温度范围内，可承受多次从 1.2 米（4 英尺）高处到水泥地面的跌落：IP54 密封等级，防雨、防潮、防尘：坚固的激光蚀刻键盘。

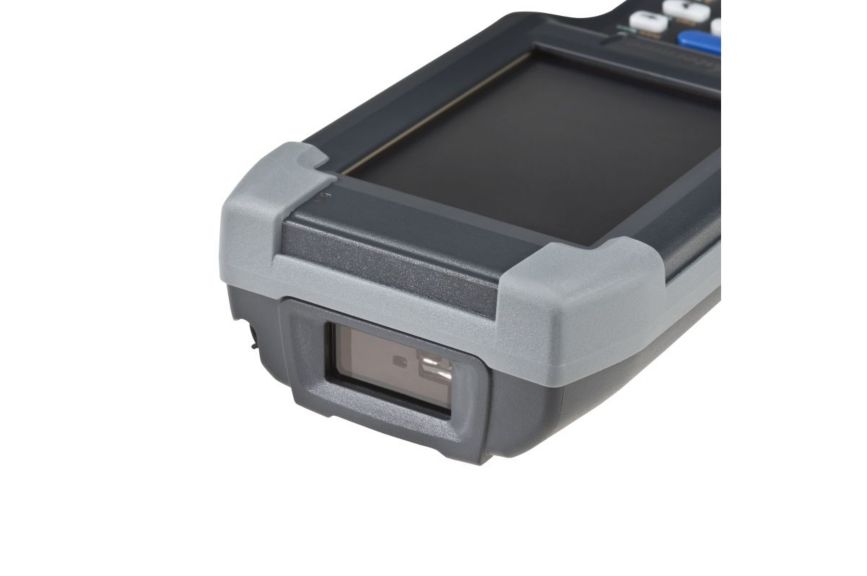

    • 集成的高运动公差二维面积成像器，可快速准确地对一维和二维条码进行高性能全向扫描。

    CK3R 移动计算机可实现高效、自动化、高性能的工作环境，优化您的运营。有了它，您的员工可以全速高效地工作。我们的目标是提升您的工作流程性能。由于采用了一流的节能设计，CK3R 能够在整个班次期间持续工作，即使是扫描密集型和网络密集型应用也不例外。CK3R 的设计纤巧轻便，使用起来非常舒适、轻松。此外，还有我们突破性的设备预配置技术 CloneNGo。利用这种技术，可以从单个主设备更快地配置和部署 CK3R 设备。无需复杂的 IT 支持。CK3R 计算机运行 Microsoft®: Windows Embedded Handheld 操作系统，支持各种企业软件应用程序。您还将得益于可选的霍尼韦尔客户包。它包含完整的终端仿真以及支持 HTML5 等新兴行业标准的锁定式 Web 浏览器。结果是：统一的用户界面和菜单结构，可确保工作流程得到有效管理且 Web 访问受限制。CK3R 移动计算机可与我们的打印机、扫描器和服务配合使用。如此一来，您就可以获得成熟的企业业务解决方案，它可以帮助您实现数据收集任务自动化，而且不会增加 IT 复杂性。

    Specifications

    Features

    • 外壳等级
      • 标准

    Dimensions

    • 整体尺寸
      • 21.6 x 8.3 x 2.8 厘米
      • 8.53 x 3.29 x 1.12 英寸

    Software & Firmware

    • 操作系统
      • Windows Embedded Handheld 6.5

    Hardware

    • 显示屏尺寸
      • 3.5 英寸
      • 8.9 厘米
    • 显示器分辨率
      • 240 x 320
    • 处理器
      • Texas Instruments 1 GHz

    Environmental

    • 工作温度
      • - 10 - 50 °C
      • 14 - 122 °F
    • 存储温度范围
      • - 20 - 70 °C
      • - 4 - 158 °F

    Standards & Approvals

    • 跌落规格
      • 在适宜环境温度下可承受多次从 1.5 米（5 英尺）高处到水泥地面的跌落；在工作温度范围内可承受多次从 1.2 米（4 英尺）高处到水泥地面的跌落
    • 滚动规格
      • 1,000 次 0.5 米高处的滚落

    ERP

    • 品牌
      • Honeywell

    Features

    • 外壳等级
      • 标准

    Dimensions

    • 整体尺寸
      • 21.6 x 8.3 x 2.8 厘米
      • 8.53 x 3.29 x 1.12 英寸

    Software & Firmware

    • 操作系统
      • Windows Embedded Handheld 6.5

    Hardware

    • 显示屏尺寸
      • 3.5 英寸
      • 8.9 厘米
    • 显示器分辨率
      • 240 x 320
    • 处理器
      • Texas Instruments 1 GHz

    Environmental

    • 工作温度
      • - 10 - 50 °C
      • 14 - 122 °F
    • 存储温度范围
      • - 20 - 70 °C
      • - 4 - 158 °F

    Standards & Approvals

    • 跌落规格
      • 在适宜环境温度下可承受多次从 1.5 米（5 英尺）高处到水泥地面的跌落；在工作温度范围内可承受多次从 1.2 米（4 英尺）高处到水泥地面的跌落
    • 滚动规格
      • 1,000 次 0.5 米高处的滚落

    ERP

    • 品牌
      • Honeywell
    • 外壳等级 : 标准
    • 整体尺寸 : 21.6 x 8.3 x 2.8 厘米|8.53 x 3.29 x 1.12 英寸
    • 操作系统 : Windows Embedded Handheld 6.5
    • 显示屏尺寸 : 3.5 英寸|8.9 厘米
    • 显示器分辨率 : 240 x 320
    • 处理器 : Texas Instruments 1 GHz
    • 工作温度 : - 10 - 50 °C|14 - 122 °F
    • 存储温度范围 : - 20 - 70 °C|- 4 - 158 °F
    • 跌落规格 : 在适宜环境温度下可承受多次从 1.5 米（5 英尺）高处到水泥地面的跌落；在工作温度范围内可承受多次从 1.2 米（4 英尺）高处到水泥地面的跌落
    • 滚动规格 : 1,000 次 0.5 米高处的滚落
    • 品牌 : Honeywell
