2D 条码扫描引擎

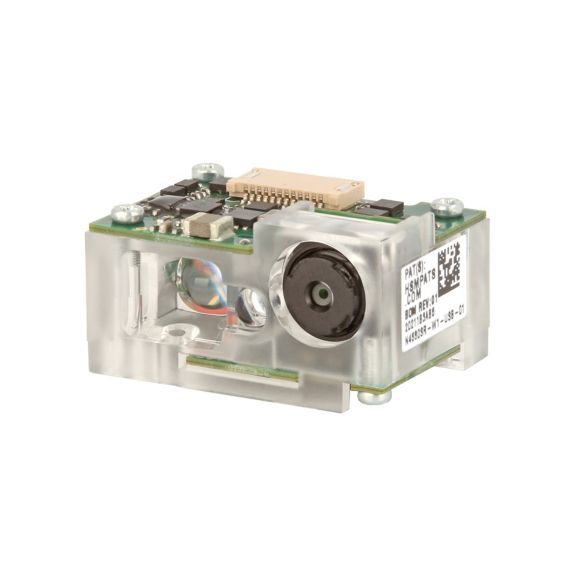

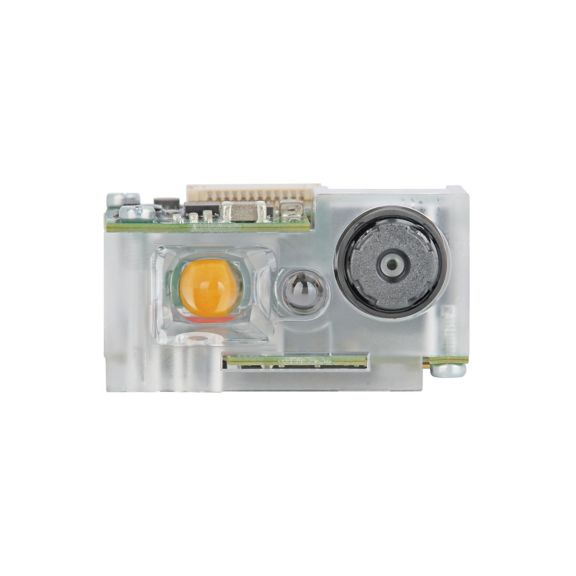

N4680 系列紧凑型解码 2D 扫描引擎
一体式设计且完全解码的 2D 扫描引擎，采用霍尼韦尔最新的成像和解码技术。.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
N4680 系列 2D 扫描引擎是霍尼韦尔的下一代紧凑型解码设备，提供 TTL 串口或 USB 接口型号，均配备行业标准的 12 针 ZIF 连接器。为方便使用之前型号（霍尼韦尔 N3680 系列）的客户无缝迁移，N4680 系列扫描引擎采用相同的机械尺寸，并提供相同的安装孔和电气引脚输出，可直接替换。对于使用 Gen5 5x00 和 EAxx 平台的老客户，N4680 系列提供了升级路径，以在更紧凑的一体式封装中提供更好的性能。
N4680 系列扫描引擎具有高达 6 m/s 的运动公差，图像捕获速率最高为 120 fps。强大的处理器速度提升 2.5 倍。这款设备采用霍尼韦尔最新的解码器平台，支持多种条码类型，包括 1D、2D 和 OCR。另外，还包括高级功能，支持读取印刷不良的条码和屏幕上的条码。这些属性使得 N4680 系列扫描引擎能有效用于无纸化、非接触式扫描，顺应当前发展趋势。
N4680 系列允许客户简单集成标准 TTL 串口或 USB 接口，外形紧凑，在处理额外的线缆和解码板时无机械设计问题。无论您是在寻找一个扫描引擎来处理扫描密集型应用（如许多手持终端），还是需要紧凑的外形来适应紧凑的机械设计，N4680 系列都能满足您的移动和固定应用要求。
特点与优势
- 直接替换具有相同电气和机械兼容性的霍尼韦尔 N3680 系列扫描引擎，但具有更高的运动公差，使客户能将设备设计为扫描密集型应用。
- 全集成的一体式设计扫描引擎，无需额外的解码板或主机解码器编程。N4680 系列不需要单独的 CPU 或操作系统即可集成到设备中。
- 敏捷性更好的全局快门，运动公差比卷帘快门高（全局快门为 6 m/s，而 卷帘快门 为 0.1 m/s）。
- 除条码以外，还支持其他功能，比如 OCR 和 TotalFreedom™。后者提供了一个开放系统架构，方便开发软件插件，以便实施增值的定制化功能，如霍尼韦尔的 EasyDL™。
- 较宽的工作温度范围，可提供应用灵活性。
