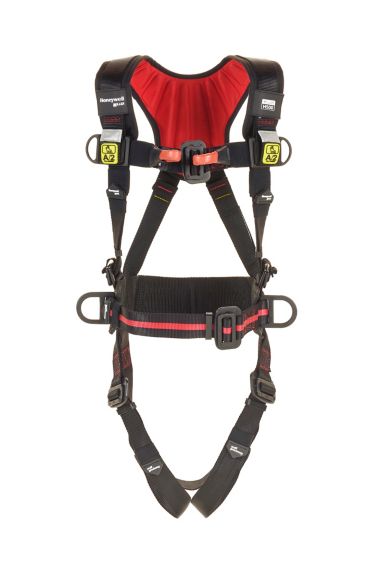

Miller h500 - arc flash
Miller H500 Arc Flash series has been conceived to to self-extinguish quickly and prevent melting or dripping in the event of an arc flash.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
- Polyamide webbing
- Removable shoulder padding
- Dielectric back D ring
- Polyamide front webbing loops
- Lanyard keepers
- Dielectric shoulder strap adjuster buckle
- Dielectric mating buckles.
- Dielectric side D rings
- Clearly identifiable fall impact indicators
- Flame retardant elastic keepers
- Protected label pouch
- Thick waist belt
- Lightweight (size 2 = 2.6 kg).
EN 361:2002, EN358:2018, ASTM F887-20
The Arc Flask lanyard is also available in single and double versions
- FPLARCM-SEU. Arc Flash Lanyard&thinsp:&mdash:&thinsp:Single leg
- FPLARCM-TEU Arc Flash Lanyard&thinsp:&mdash:&thinsp:Twin legs
Specifications
Others
- Webbing Breaking Strength
- 31 kN
- RFID
- No
- Attachment Point Locations (if not D-Ring)
- Polyamide Front webbing loops
- Chest Strap Buckle Material
- Dielectric Mating Buckle
- Leg Strap Buckle Material
- Dielectric Mating Buckle
- Maximum Weight Capacity
- 140
- 140
- Chest Strap Buckle Type
- Standard
- Leg Strap Buckle Type
- Standard
- Attachment Point Type
- Dielectric Back D-Ring
- Belt Buckle Material
- Dielectric Mating Buckles
- Number of D-Rings
- 5
- Webbing Material
- Polyamide- flame retardant
- D-Ring Locations
- back- front- side
- Belt Buckle Type
- Dielectric Mating Buckle
- D-Ring Material
- Dielectric
- Product Weight
- 2.6 kg
- 2.6 kg
- Product Family
- Miller H500 Full Body Harness
- Webbing Color
- Black/Red
- Harness Style
- Vest style
- Belt Material
- Polyamide
- Webbing Type
- Flame retardant
- Product Type
- Harness Degrees Celsius
- Harness Size
- S- M- L
- Standards
- EN 361:2002, EN358:2018, ASTM F887-20
- EN 361:2002- EN358:2018- ASTM F887-20
- Belt Type
- non-removable
Others
- Webbing Breaking Strength
- 31 kN
- RFID
- No
- Attachment Point Locations (if not D-Ring)
- Polyamide Front webbing loops
- Chest Strap Buckle Material
- Dielectric Mating Buckle
- Leg Strap Buckle Material
- Dielectric Mating Buckle
- Maximum Weight Capacity
- 140
- 140
- Chest Strap Buckle Type
- Standard
- Leg Strap Buckle Type
- Standard
- Attachment Point Type
- Dielectric Back D-Ring
- Belt Buckle Material
- Dielectric Mating Buckles
- Number of D-Rings
- 5
- Webbing Material
- Polyamide- flame retardant
- D-Ring Locations
- back- front- side
- Belt Buckle Type
- Dielectric Mating Buckle
- D-Ring Material
- Dielectric
- Product Weight
- 2.6 kg
- 2.6 kg
- Product Family
- Miller H500 Full Body Harness
- Webbing Color
- Black/Red
- Harness Style
- Vest style
- Belt Material
- Polyamide
- Webbing Type
- Flame retardant
- Product Type
- Harness Degrees Celsius
- Harness Size
- S- M- L
- Standards
- EN 361:2002, EN358:2018, ASTM F887-20
- EN 361:2002- EN358:2018- ASTM F887-20
- Belt Type
- non-removable
- Webbing Breaking Strength : 31 kN
- RFID : No
- Attachment Point Locations (if not D-Ring) : Polyamide Front webbing loops
- Chest Strap Buckle Material : Dielectric Mating Buckle
- Leg Strap Buckle Material : Dielectric Mating Buckle
- Maximum Weight Capacity : 140|140
- Chest Strap Buckle Type : Standard
- Leg Strap Buckle Type : Standard
- Attachment Point Type : Dielectric Back D-Ring
- Belt Buckle Material : Dielectric Mating Buckles
- Number of D-Rings : 5
- Webbing Material : Polyamide- flame retardant
- D-Ring Locations : back- front- side
- Belt Buckle Type : Dielectric Mating Buckle
- D-Ring Material : Dielectric
- Product Weight : 2.6 kg|2.6 kg
- Product Family : Miller H500 Full Body Harness
- Webbing Color : Black/Red
- Harness Style : Vest style
- Belt Material : Polyamide
- Webbing Type : Flame retardant
- Product Type : Harness Degrees Celsius
- Harness Size : S- M- L
- Standards : EN 361:2002, EN358:2018, ASTM F887-20|EN 361:2002- EN358:2018- ASTM F887-20
- Belt Type : non-removable
