扭矩传感器
1369 型
转向扭矩传感器，容量为 50 ft-lb、100 ft-lb 和 200 ft-lb，非线性度和迟滞为 < 0.50% 非线性度和迟滞。SAE 10 花键式柱子固定
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

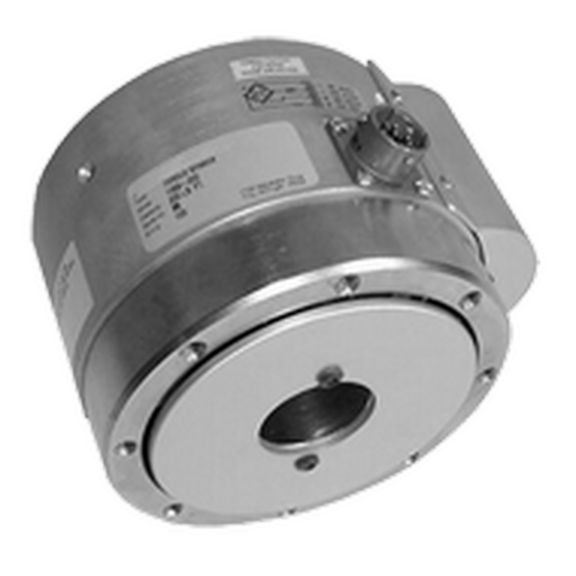

1369 型转向扭矩传感器适合汽车或海洋应用，可测量转向臂或转向轮上的扭力。转向扭矩传感器采用螺栓固定设计，可安装到汽车、卡车、公共汽车、船或材料加工处理设备的转向柱上，以代替常规车轮。通过电阻网络提供位置/角度编码。标准容量范围：50 ft-lb、100 ft-lb 和 200 ft-lb，可应要求提供其他容量。
特征
- 容量：50 ft-lb、100 ft-lb 和 200 ft-lb
- 非线性度和迟滞：< 0.50%
- 直接连接到转向柱附件
- 为汽车、卡车、公共汽车和材料加工处理设备提供真正的转向扭矩反馈
- 测量扭矩和对应位置的能力
