压力传感器
MIP 系列
重载介质隔离型压力传感器：1 bar 至 12 bar，15 psi 至 175 psi
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

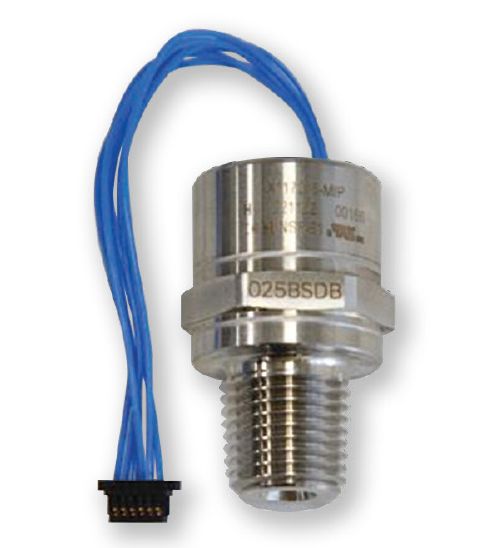

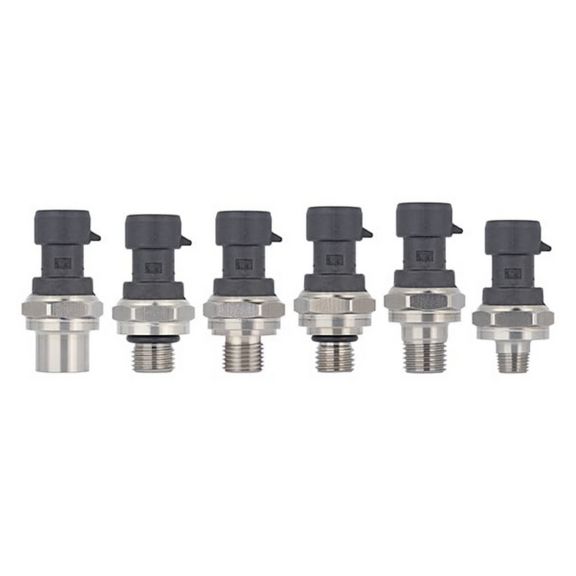

MIP 系列在紧凑的不锈钢结构内提供重载介质隔离型压力传感器，能够与各种介质一起使用，包括腐蚀性液体和水。MIP 系列能在恶劣环境中为大量潜在应用提供具成本竞争力的解决方案。
为客户创造价值
- 总误差带 (TEB) ±0.75% FSS 至 ±1.0% FSS（满量程）@ -40°C 至 125°C：在温度补偿范围内提供真实测量性能；误差小，有助于延长系统正常运行时间并提高效率。
- EMC（电磁兼容）性能：在存在电磁场（例如，无线信号、RF 通信和电气装置）的情况下能够可靠地运行。
- 气密焊接设计支持几乎任何介质，无需使用内部密封。传感器旨在用于能看到腐蚀性介质的恶劣环境内。
差异化
- 诊断：了解传感器功能优势和内外部故障模式需求非常重要。
- 较高的客户价值：多种配置可能性使应用更灵活，无需前期 NRE 或工具费用。
- 耐用：具有严苛工况所需的各项性能，包括长期稳定性、绝缘电阻和介电强度、外部抗冻融性，以及 EMC（电磁兼容）性能。
特征
- 坚固耐用的不锈钢结构
- 成比例输出：0.5 Vdc 至 4.5 Vdc
- 工作温度：-40°C 至 125°C
- 总误差带：±0.75% FSS 至 ±1.0% FSS（-40°C 至 125°C）
- 精确度业内领先：±0.15% FSS BFSL
- 长期稳定性：±0.25% FSS
- 辐射抗扰：100 V/m
- 饮用水认证：NSF/ANSI/CAN 61
- 符合 CE、RoHS、REACH 标准
- 误接线保护
- 过压保护：±40 Vdc
应用领域
- 工业：泵（水、液压液）、压缩机（压缩空气）、工艺（食品、饮料、石油、天然气、蒸汽）
- HVAC/R：制冷剂（丁烷、丙烷、氨、CO2、R134A、R407C、R410A、R448A/Solstice® N40、R32 和 R1234ze、R1234YF、乙二醇 + 水
- 运输：汽油、柴油、发动机油、制动液、冷却剂、CNG
- 医疗：O2、N2、CO2、N2O、空气
