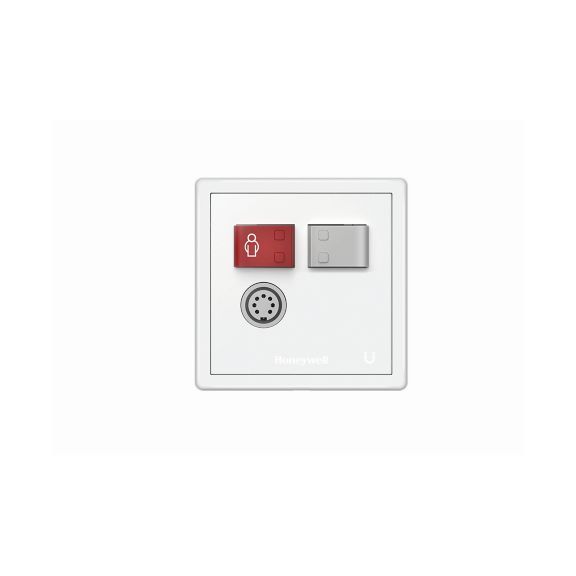

Systevo Bed Unit, DIN-7 call socket, call and cancel buttons
Systevo Bed Unit, to provide the suitable nurse call and domotic control funct. at the patient or resident bed.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Part Number: 73091B
Systevo Bed Unit, to provide the suitable nurse call and domotic control funct. at the patient or resident bed.
Connection of a patient handset or authorised device for call initiation using the DIN7 socket.
Equipped with call button with easily recognizable as well sensible pressure point is the device prepared for safe call initiation. Also equiped with call button (in data bus operating mode only) as well as to unsubscribe a connected handset.
Option: Bed intercom in combination with a multifunctional patient handset for communication with nursing staff.
Controlled by a superordinated room controller (IP) via the data bus (DBUS) or call input (I/O), such as a room terminal or a room electronic module. In data bus mode: connection of an ext. call unit to the call input (I/O).
Handsets are monitored by the bed units according the specifications of VDE 0834 using an interactive data bus.
The bed unit is equipped with 2 control outputs for managing up to 2 light sources.
Additional firmware licenses required to deploy new device functionalities.
Features
Equipment:
- 1 DIN7 socket for connection of patient handset
- 1 call button (red LED)
- 1 cancel button (green LED)
- Galvanic isolation req. to control 3rd party device (acc. EN 60601.1.1)
Inputs / outputs:
- Power supply 24V DC
- Data bus (DBUS)
- Call input / output (I/O)
- 2 control outputs
- TV sound input, galvanic isolation required according to EN 60601.1.1
Features:
- Call triggering, local call cancellation, available via the data bus (DBUS)
- Unsubscription of connected handset
- Control function for 2 light sources
- Control function for nurse call
- Configurable system funct. (Input)
Accessories:
- Cover plate, frame, buttons f. medical supply unit (grey with icon)
Scope of delivery
Systevo Bed Unit, screw connection terminals
Accessories
88885B3 Cover plate Systevo bed unit, DIN7 Call button red/cancel button grey, design Systevo Call
88914A5 Frame single for 1 coverplate design Systevo Call
88914B5 Frame double for 2 coverplates design Systevo Call
88914C5 Frame triple for 3 coverplates design Systevo Call
Others
- Storage Temperature
- -20 °C ... 70 °C
- Weight (g)
- approx. 90 g gram
- Operating voltage (A)
- 24 V DC +/-10 %
- Current Consumption
- 50 mA ampere
- Type Of Protection
- IP20, when installed incl. suitable cover plate
- Dimensions
- D: 25 mm (installation depth)
- W: 71 mm H: 71 mm D: 33 mm
- Mounting
- in flush-mounting box, DIN 49073
- Ambient Temperature
- 5 °C ... 55 °C
Others
- Storage Temperature
- -20 °C ... 70 °C
- Weight (g)
- approx. 90 g gram
- Operating voltage (A)
- 24 V DC +/-10 %
- Current Consumption
- 50 mA ampere
- Type Of Protection
- IP20, when installed incl. suitable cover plate
- Dimensions
- D: 25 mm (installation depth)
- W: 71 mm H: 71 mm D: 33 mm
- Mounting
- in flush-mounting box, DIN 49073
- Ambient Temperature
- 5 °C ... 55 °C
- Storage Temperature : -20 °C ... 70 °C
- Weight (g) : approx. 90 g gram
- Operating voltage (A) : 24 V DC +/-10 %
- Current Consumption : 50 mA ampere
- Type Of Protection : IP20, when installed incl. suitable cover plate
- Dimensions : D: 25 mm (installation depth)|W: 71 mm H: 71 mm D: 33 mm
- Mounting : in flush-mounting box, DIN 49073
- Ambient Temperature : 5 °C ... 55 °C
