固定式气体探测器

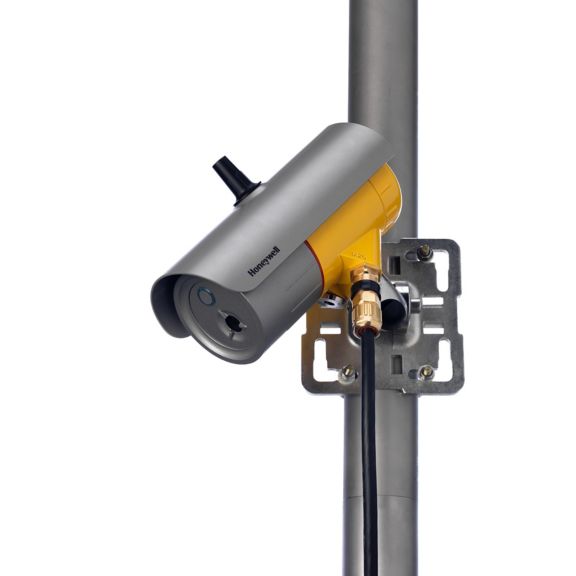

Searchline Excel™ Plus

开路红外气体检测仪 - 中短程

Overview
Searchline Excel™ Plus 可燃碳氢化合物气体检测仪可在极为严苛的环境条件中,以卓越的运行时间提供稳健的探测性能。即使在极低可见度下也可最大程度确保安全覆盖此设备运用先进的光学气体探测技术,可提供卓越的消防与气体安全防护,相比基于 NDIR 或激光技术的其他开路气体检测仪有着更强的浓雾穿透能力。Searchline Excel™ Plus 中短程气体检测仪专为油气行业全局应用情境设计而成,包括上游、下游与海陆环境,保护您的人员、设施和系统免受可燃气体泄漏的危害。特点与优势:探测性能可靠:
  • 即使在低可见度下,也可对可燃碳氢化合物气体作出快速响应
  • 窗口清晰度与校准精度等高级诊断功能,以确保最佳运行时间
易使用:
  • Honeywell 的固定平台通用支架与全新校准范围可确保轻松安装
  • 蓝牙连接,以确保简单而非侵入式的安装与维护。
一目了然的仪器状态:
  • 高可见度多色 LED HALO 光圈,提供关于设备状态的明确指示
规格一览:
  • 探测范围从 2 至 120 米不等(6 至 393 英尺)
  • 多种输出,包括 4-20mA、继电器、HART®、Modbus 与蓝牙通信
  • 可对一系列广泛的碳氢化合物气体作出响应,例如甲烷、乙烷、丙烷、丁烷、戊烷、己烷、乙烯与丙烯
  • 响应速度 (T90) 少于 3 秒
Specifications

Overview

  • 品牌
    • Honeywell

Features

  • 子类别
    • 开路气体检测仪与变送器
  • Alarm Settings
    • 建议低位报警 - 1 LEL.m
    • 建议高位报警 - 3 LEL.m
  • 特点
    • 蓝牙®已启用
  • Wireless Technology
    • 蓝牙®(范围至 20 米 [66 英尺])
  • Visual Indicators
    • 变送器 LED 与接收器高可见度 HALO 光圈

Technical Specifications

  • 工作湿度
    • 0–99 % RH 无凝结
  • Sensor Range
    • 2 米至 120 米(6 至 393 英尺)
  • 模拟输出信号类型
    • 4-20mA 标准
  • 继电器额定负载
    • 最大 32 Vdc/ac,最大电阻性负载 2 A
  • 继电器输出配置
    • 继电器 1 为报警 1 级,继电器 2 为报警 2 级,继电器 3 指示故障
  • Relay Activation Settings
    • 单刀双掷 (SPDT)
  • 感应方式
    • 近带红外
  • 传感器类型
    • 开路红外
  • 继电器输出数量
    • 3
  • 底座
    • 包含通用安装支架
  • 可检测气体
    • 可燃碳氢化合物
  • Maximum Pressure
    • 105.5 kPa(1055 mBar,非补偿式)

Standards & Certifications

  • Standards
    • EN 50270:(EMC)IEC/EN 61000-6-4;无线电设备指令 2014/53/EUNEWLINEIEC/EN/UL/CSA 61010(电气安全)NEWLINEFCC / ICNEWLINERoHS,中国 RoHS
  • NEMA 等级
    • Type 4X,与 NEMA 250 一致
  • Ingress Protection
    • IP 66 / 67

Material Specifications

  • 材料
    • 316L 不锈钢

Overview

  • 品牌
    • Honeywell

Features

  • 子类别
    • 开路气体检测仪与变送器
  • Alarm Settings
    • 建议低位报警 - 1 LEL.m
    • 建议高位报警 - 3 LEL.m
  • 特点
    • 蓝牙®已启用
  • Wireless Technology
    • 蓝牙®(范围至 20 米 [66 英尺])
  • Visual Indicators
    • 变送器 LED 与接收器高可见度 HALO 光圈

Technical Specifications

  • 工作湿度
    • 0–99 % RH 无凝结
  • Sensor Range
    • 2 米至 120 米(6 至 393 英尺)
  • 模拟输出信号类型
    • 4-20mA 标准
  • 继电器额定负载
    • 最大 32 Vdc/ac,最大电阻性负载 2 A
  • 继电器输出配置
    • 继电器 1 为报警 1 级,继电器 2 为报警 2 级,继电器 3 指示故障
  • Relay Activation Settings
    • 单刀双掷 (SPDT)
  • 感应方式
    • 近带红外
  • 传感器类型
    • 开路红外
  • 继电器输出数量
    • 3
  • 底座
    • 包含通用安装支架
  • 可检测气体
    • 可燃碳氢化合物
  • Maximum Pressure
    • 105.5 kPa(1055 mBar,非补偿式)

Standards & Certifications

  • Standards
    • EN 50270:(EMC)IEC/EN 61000-6-4;无线电设备指令 2014/53/EUNEWLINEIEC/EN/UL/CSA 61010(电气安全)NEWLINEFCC / ICNEWLINERoHS,中国 RoHS
  • NEMA 等级
    • Type 4X,与 NEMA 250 一致
  • Ingress Protection
    • IP 66 / 67

Material Specifications

  • 材料
    • 316L 不锈钢
  • 品牌 : Honeywell
  • 子类别 : 开路气体检测仪与变送器
  • 工作湿度 : 0–99 % RH 无凝结
  • Sensor Range : 2 米至 120 米(6 至 393 英尺)
  • Alarm Settings : 建议低位报警 - 1 LEL.m|建议高位报警 - 3 LEL.m
  • 模拟输出信号类型 : 4-20mA 标准
  • Standards : EN 50270:(EMC)IEC/EN 61000-6-4;无线电设备指令 2014/53/EUNEWLINEIEC/EN/UL/CSA 61010(电气安全)NEWLINEFCC / ICNEWLINERoHS,中国 RoHS
  • 特点 : 蓝牙®已启用
  • 材料 : 316L 不锈钢
  • 继电器额定负载 : 最大 32 Vdc/ac,最大电阻性负载 2 A
  • 继电器输出配置 : 继电器 1 为报警 1 级,继电器 2 为报警 2 级,继电器 3 指示故障
  • Relay Activation Settings : 单刀双掷 (SPDT)
  • 感应方式 : 近带红外
  • 传感器类型 : 开路红外
  • Wireless Technology : 蓝牙®(范围至 20 米 [66 英尺])
  • 继电器输出数量 : 3
  • 底座 : 包含通用安装支架
  • 可检测气体 : 可燃碳氢化合物
  • Visual Indicators : 变送器 LED 与接收器高可见度 HALO 光圈
  • NEMA 等级 : Type 4X,与 NEMA 250 一致
  • Maximum Pressure : 105.5 kPa(1055 mBar,非补偿式)
  • Ingress Protection : IP 66 / 67
