Torque Transducers

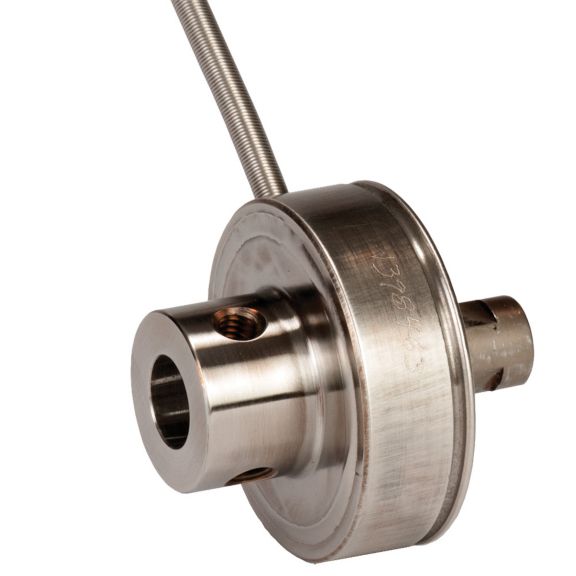

Model QWFK-8M
Miniature Reaction Torque Transducer
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Models QWFK-8M miniature reaction torque transducers is engineered for minimum size and to achieve 0.1% maximum nonlinearity. Four bonded strain gages are positioned on a special machined portion of the transducer to effectively measure even slight torque motion. These models operate and are calibrated in both directions. A modular, stainless steel construction and no moving parts provide excellent durability under harsh industrial conditions. Potential miniature reaction torque transducer applications include motor dynamometer, tire braking, twist measurement, and friction-skid test measurements.
Features
- 25 in-oz to 300 in-lb
- 0.1 % non-linearity and hysteresis
- Compact size
- High frequency
- Stainless steel construction
- Integral cable (standard)
