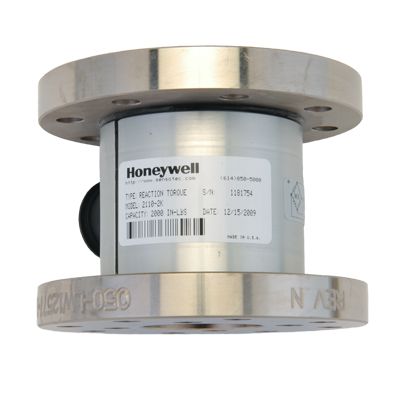

2110 Series Reaction Torque Sensor
The 2110 Series flanged reaction torque sensor installs between a test piece such as a motor or shaft and its mounting plate, calibrated in both directions. Four bonded strain gages and no moving parts give 0.1 % maximum non-linearity.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Model 2110-2116 flanged reaction torque sensor is designed for installation between test pieces such as motors, switches, axles, or shafts and their mounting plate. These models operate and are calibrated in both directions. Nickel-plated alloy steel construction enhances durability in harsh, industrial environments. These models have no moving parts and utilize four bonded strain gages on a special machined portion of the transducer to achieve a maximum non-linearity of 0.1 % over a wide dynamic range. Typical applications include tire braking, motor dynamometers, friction-skid testing, and twist measurement. 2,000 in-lb to 2,400,000 in-lb capacities.
Features
- 2000 in-lb to 2400000 in-lb capacities
- 0.1 % non-linearity and hysteresis
- High torsional stiffness
- Higher resistance to bending moments
- Low-end sensitivity due to absence of moving parts
Specifications
Others
- Industry
- Aerospace
- Energy
- Manufacturing
Others
- Industry
- Aerospace
- Energy
- Manufacturing
- Industry : Aerospace|Energy|Manufacturing
Please sign in to access more documents.
Once signed in, you may be able to access additional documents for your account.
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list
060-1765-02-01
BT111TV,1A,2U,6B,9A,15C:MODEL QSFK-9,
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
060-1765-02-01
BT111TV,1A,2U,6B,9A,15C:MODEL QSFK-9,
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2110-2K
2110-2K,1AD,2U,6AC,15C:MODEL 2110, 2,000
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2110-2K
2110-2K,1AD,2U,6AC,15C:MODEL 2110, 2,000
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2110-5K
Model 2110 Flanged Reaction Torque Transducer, 5000 in-lb, 21 °C to 75 °C [70 °F to 170 °F] Temperature Compensation, Non-amplified (mvv), Amphenol MS3102A-14S-5P electrical connector, radial electical exit orientation
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2110-5K
Model 2110 Flanged Reaction Torque Transducer, 5000 in-lb, 21 °C to 75 °C [70 °F to 170 °F] Temperature Compensation, Non-amplified (mvv), Amphenol MS3102A-14S-5P electrical connector, radial electical exit orientation
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2111-10K
Model 2111 Flanged Reaction Torque Transducer, 10000 in-lb, 21 °C to 75 °C [70 °F to 170 °F] Temperature Compensation, Non-amplified (mvv), Amphenol MS3102A-14S-5P electrical connector, radial electical exit orientation
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2111-10K
Model 2111 Flanged Reaction Torque Transducer, 10000 in-lb, 21 °C to 75 °C [70 °F to 170 °F] Temperature Compensation, Non-amplified (mvv), Amphenol MS3102A-14S-5P electrical connector, radial electical exit orientation
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2111-128-20K
MODEL 2110, 20,000 IN-LBS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2111-128-20K
MODEL 2110, 20,000 IN-LBS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2111-20K
Model 2111 Flanged Reaction Torque Transducer, 20000 in-lb, 21 °C to 75 °C [70 °F to 170 °F] Temperature Compensation, Non-amplified (mvv), Amphenol MS3102A-14S-5P electrical connector, radial electical exit orientation
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2111-20K
Model 2111 Flanged Reaction Torque Transducer, 20000 in-lb, 21 °C to 75 °C [70 °F to 170 °F] Temperature Compensation, Non-amplified (mvv), Amphenol MS3102A-14S-5P electrical connector, radial electical exit orientation
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2111-30K
2111-30K,1AD,2U,6AC,15C:MODEL 2110, 30,
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2111-30K
2111-30K,1AD,2U,6AC,15C:MODEL 2110, 30,
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2112-100K
Model 2112 Flanged Reaction Torque Transducer, 100000 in-lb, 21 °C to 75 °C [70 °F to 170 °F] Temperature Compensation, Non-amplified (mvv), Amphenol MS3102A-14S-5P electrical connector, radial electical exit orientation
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2112-100K
Model 2112 Flanged Reaction Torque Transducer, 100000 in-lb, 21 °C to 75 °C [70 °F to 170 °F] Temperature Compensation, Non-amplified (mvv), Amphenol MS3102A-14S-5P electrical connector, radial electical exit orientation
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2112-50K
2112-50K,1AD,2U,6AC,15C:MODEL 2110
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2112-50K
2112-50K,1AD,2U,6AC,15C:MODEL 2110
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2113-200K
2113-200K,1AD,2U,6AC,15C:MODEL 2110, 200
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-l-model-2110-torque-400x400-front-ciid-161717
2113-200K
2113-200K,1AD,2U,6AC,15C:MODEL 2110, 200
