    Pressure Transducers

    Model LL-V

    Vertical entry liquid level sensor. 20 in-H2O to 50 psig. True gage design. Conduit connection. 17-4 PH Stainless Steel wetted material

    Overview

    The Model LL-V Liquid Level Sensor is manufactured out of 17-4 PH Stainless Steel and is designed for vertical entry into a tank or stilling well for complete submersion in the fluid. The all-welded stainless steel housing and pressure sensing diaphragm provides corrosion resistance to most fluids. The electrical cable exits through a 1/2-14 NPT threaded conduit fitting which allows the attachment of a variety of tubing or flexible conduit. The electrical cable is vulcanized to a welded on stainless steel ferrel. The four conductor electrical cable has an atmospheric vent tube inside the cable jacket and is attached to the ̶0:true gage̶1: all-welded chamber inside the sensor to provide an atmospheric zero reference.

    Features
    • True gage design
    • Conduit connection
    • Submersible
    • All-welded stainless steel construction
    • 0.1 % accuracy
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Pressure Accessories Datasheet
    application/pdf 379.5 KB
    7/17/2021
    379.5 KB
    Model LL-V Submersible Pressure Transducer Datasheet
    application/pdf 227.95 KB
    7/17/2021
    227.95 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Test & Measurement Pressure Transducer Range Guide
    application/pdf 1.03 MB
    7/17/2021
    1.03 MB
    Brochure
    Name
    Description
    File Size
    Date
    Size
    T&M Overview Brochure
    application/pdf 418.77 KB
    7/17/2021
    418.77 KB
    Technical Note
    Name
    Description
    File Size
    Date
    Size
    Model LL-V External Wiring Diagram - Current (2 wire) Submersible
    application/pdf 139.3 KB
    7/17/2021
    139.3 KB
    Model LL-V External Wiring Diagram - Current (3-wire) or Vehicle Voltage Submersible
    application/pdf 27.63 KB
    7/17/2021
    27.63 KB
    Model LL-V Outline Drawing
    application/pdf 57.94 KB
    7/17/2021
    57.94 KB
    Model LL-V External Wiring Diagram - Current (3-wire) or Vehicle Voltage Submersible No Shunt Calibration
    application/pdf 143.84 KB
    7/17/2021
    143.84 KB
    Application Note
    Name
    Description
    File Size
    Date
    Size
    Exploded view diagram of Honeywell sensors and switches in oil rig applications
    application/pdf 6.35 MB
    9/23/2022
    6.35 MB
    Aerospace Test and Measurement Capabilities
    application/pdf 1.94 MB
    7/17/2021
    1.94 MB
    eBook
    Name
    Description
    File Size
    Date
    Size
    Redefining Road Rail & Rugged Applications
    application/pdf 28.35 MB
    12/20/2022
    28.35 MB
    Others
    Name
    Description
    File Size
    Date
    Size

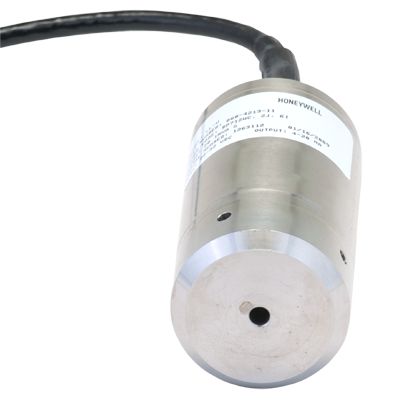

    Model LL-V Front View
    image/png 99.19 KB
    7/17/2021
    99.19 KB

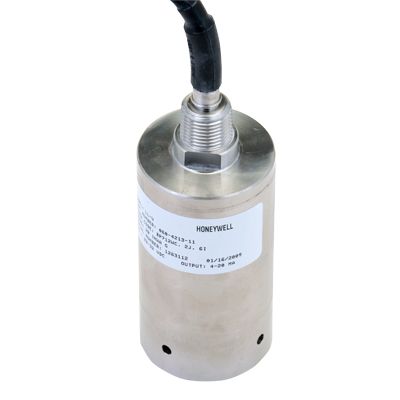

    Model LL-V Top Angle View
