    Pressure Transducers

    Model JH

    Digital pressure gauge. High pressure grade. 15000 psi to 60000 psi. 0.2% FS accuracy. 15-5 PH Stainess steel wetted material.

    Overview

    Using high pressure autoclave fittings, the Series JH digital pressure test gauge with 0.2 % full scale accuracy uses transducer technology and is manufactured from 15-5 PH Stainess Steel wetted material for high over pressure protection. The transducer technology provides enhanced accuracy over the entire pressure range.

    The JH has no moving parts and thus, may provide a long life with fewer re-calibrations. The stainless steel NEMA construction also provides EMI and RFI protection. The JH provides high resolution with an easy to read digital display. There are no operator errors due to interpolation of hash marks or parallax errors. The units can be scaled to read in various engineering units. PSI pressures are read x 10 with the 4½-digit display.

    The Model JHB provides a 4 mA to 20 mA, two-wire output. The Model JHE provides a 0 Vdc to 5 Vdc output. The Model JHR has two programmable limits and relays with no analog output. The Model JHX provides a 0 Vdc to 5 Vdc output with two programmable limits and relays for process control or alarm indication. The Model JHW is powered by one or two common 9 V alkaline batteries. The Model JHT is powered by a 110 Vac adapter. The JHV, JHB, JHE, JHR and JHX models are powered by an 11 Vdc to 32 Vdc power supply.

    Each unit has a membrane face with raised buttons and tactile feedback for setup and operation. The high, low, and clear but­tons are easily accessible on this front membrane. Zero adjust­ment and zero offset/tare functions are standard on each unit. Calibration and setup parameters are stored on a memory chip to protect from loss even when power is interrupted. Unauthorized set ups and calibrations are also blocked with internal security. Various combinations of the front panel buttons can be deactivated.

    Features
    • Pressure ranges from 15000 psi to 60000 psi gage
    • Two programmable limits and relays (optional)
    • Accuracy - 0.2 % full scale
    • High and low detection - Microprocessor based
    • 4 mA to 20 mA (two-wire) and 0 Vdc to 5 Vdc analog outputs (optional)
    • Customer recalibration
    • 4½ digit display with 0.5 in height
    • Zero offset/tare
    • On/off switch disable feature
    • Two programmable limits and relays (optional)
    • NEMA 4 rating (optional)
    • NIST statement (standard)
    • NIST traceable (optional)
    • Optional carrying case and panel mounting ring
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Model JH High Pressure Digital Gauge Datasheet
    application/pdf 310.14 KB
    7/17/2021
    310.14 KB
    Pressure Accessories Datasheet
    application/pdf 379.5 KB
    7/17/2021
    379.5 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Test & Measurement Pressure Transducer Range Guide
    application/pdf 1.03 MB
    7/17/2021
    1.03 MB
    Brochure
    Name
    Description
    File Size
    Date
    Size
    T&M Overview Brochure
    application/pdf 418.77 KB
    7/17/2021
    418.77 KB
    Technical Note
    Name
    Description
    File Size
    Date
    Size
    Model JH External Wiring Diagram - V Power Code
    application/pdf 40.94 KB
    7/17/2021
    40.94 KB
    Model JH External Wiring Diagram - R Power Code
    application/pdf 52.65 KB
    7/17/2021
    52.65 KB
    Model JH External Wiring Diagram - T Power Code
    application/pdf 85.28 KB
    7/17/2021
    85.28 KB
    Model JH External Wiring Diagram - X Power Code
    application/pdf 52.9 KB
    7/17/2021
    52.9 KB
    Model JH External Wiring Diagram - E Power Code
    application/pdf 40.94 KB
    7/17/2021
    40.94 KB
    Model JH External Wiring Diagram - B Power Code
    application/pdf 96.84 KB
    7/17/2021
    96.84 KB
    Model JH External Wiring Diagram - W Power Code
    application/pdf 75.59 KB
    7/17/2021
    75.59 KB
    Application Note
    Name
    Description
    File Size
    Date
    Size
    Aerospace Test and Measurement Capabilities
    application/pdf 1.94 MB
    7/17/2021
    1.94 MB
    eBook
    Name
    Description
    File Size
    Date
    Size
    Redefining Road Rail & Rugged Applications
    application/pdf 28.35 MB
    12/20/2022
    28.35 MB
    Others
    Name
    Description
    File Size
    Date
    Size
    Model JH Front View
    image/jpeg 234.63 KB
    7/17/2021
    234.63 KB

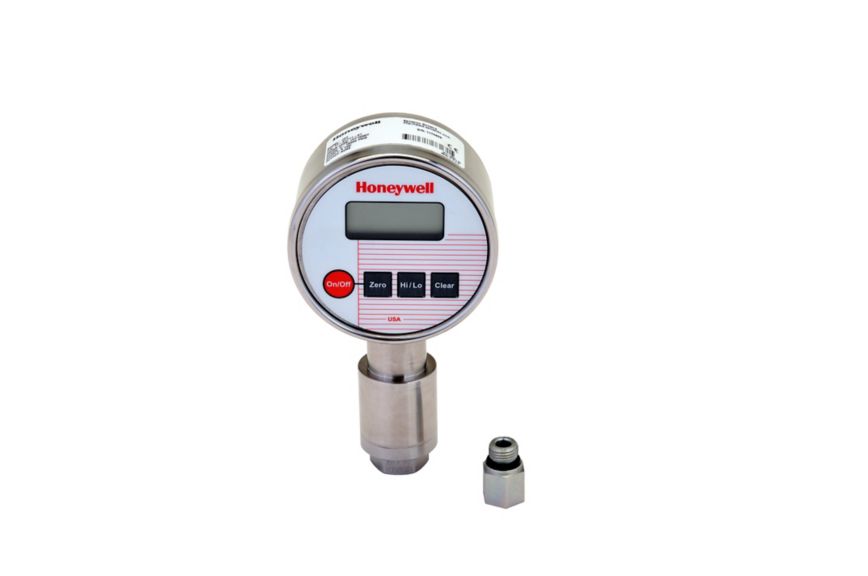

    Model JH Top Angle View
    image/jpeg 225.38 KB
    7/17/2021
    225.38 KB
    Model JH Bottom View
    image/jpeg 190.47 KB
    7/17/2021
    190.47 KB

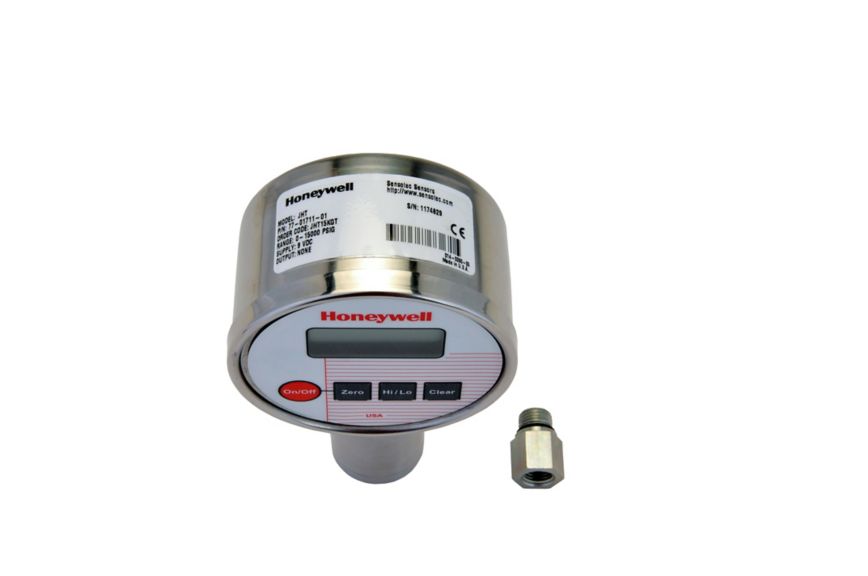

    Model JH Top View
