    Pressure Transducers

    Model 434

    Wing union pressure transducers. Standard aperture. 0 psi to 20,000 psi. ±0.2 % full-scale accuracy.

    Overview

    Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are designed for demanding oil and gas applications as well as stimulation and circulation systems. They are constructed as an all-welded, stainless steel assembly with the sensor diaphragm and wing union fitting machined as one part, which provides hermetic integrity and minimizes media leakage versus multi-piece parts. The isolated pressure sensing diaphragm minimizes zero-shift during hammer up and eliminates long-term signal drift in the field. The Weco® 1502, 2002, and 2202 Wing Union-compatible fittings are machined of Inconel® X-750, or optional NACE-compliant Inconel® 718, allowing for use with abrasive and corrosive media. The Honeywell proprietary stainless steel electrical connection provides enhanced secondary pressure containment. Special assembly processes provide enhanced shock and vibration for reliable performance in the field.

    Value to Customers
    • Durable: Weco® Wing Union-compatible fittings are machined of Inconel® X-750, or optional NACE-compliant Inconel® 718, allowing for use with abrasive and corrosive media. Protective cage option provides electrical connection protection.
    • Reliable: All-welded, stainless steel assembly, shock/vibration ratings, and isolated pressure sensing diaphragm increase reliability.
    • Accurate: High accuracy option provides confidence in the actual measured pressure value, particularly for smaller changes in pressure, allowing drilling operation adjustments as needed.
    • Availability and service: Global manufacturing and support allow Honeywell to quickly provide customized products, helping customers meet project timelines.
    Differentiators
    • High or standard accuracy allow ability to obtain tighter system requirements and lower error bands than comparable competitive models
    • Shunt calibration option enhances configurability and flexibility: 1-wire shunt calibration is achievable with a single barrier application, helping to minimize installation costs
    • IEC Ex approval allows for use in hazardous areas, in Asia-Pacific and EMEA, and by the U.S. Coast Guard
    • Protective cage option
    • Welded construction
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Datasheet: Models 434, 435 & 437 Wing Union Pressure Sensors
    application/pdf 670.43 KB
    7/17/2021
    670.43 KB
    Pressure Accessories Datasheet
    application/pdf 379.5 KB
    7/17/2021
    379.5 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Test & Measurement Pressure Transducer Range Guide
    application/pdf 1.03 MB
    7/17/2021
    1.03 MB
    Installation Instructions
    Name
    Description
    File Size
    Date
    Size
    Installation Instructions: Models 434, 435 & 437 Wing Union Pressure Sensors
    application/pdf 1.07 MB
    3/8/2022
    1.07 MB
    Brochure
    Name
    Description
    File Size
    Date
    Size
    Oil and Gas Brochure -
    application/pdf 3.4 MB
    10/25/2022
    3.4 MB
    T&M Overview Brochure
    application/pdf 418.77 KB
    7/17/2021
    418.77 KB
    Application Note
    Name
    Description
    File Size
    Date
    Size
    Pressure Sensors for Oil & Gas
    application/pdf 5.11 MB
    10/19/2021
    5.11 MB
    Aerospace Test and Measurement Capabilities
    application/pdf 1.94 MB
    7/17/2021
    1.94 MB
    Measurement While Drilling (MWD) for Oil Rigs
    application/pdf 440.15 KB
    7/17/2021
    440.15 KB
    Exploded view diagram of Honeywell sensors and switches in oil rig applications
    application/pdf 6.35 MB
    9/23/2022
    6.35 MB
    eBook
    Name
    Description
    File Size
    Date
    Size
    Redefining Road Rail & Rugged Applications
    application/pdf 28.35 MB
    12/20/2022
    28.35 MB
    Others
    Name
    Description
    File Size
    Date
    Size

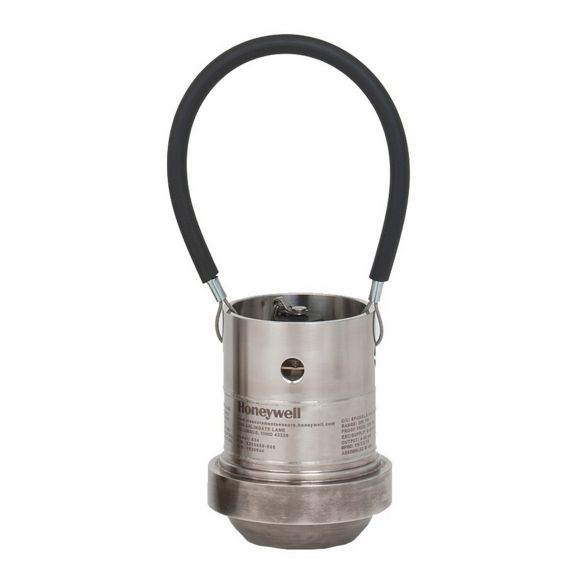

    Model 434 Top View
    image/png 117.93 KB
    7/17/2021
    117.93 KB
    434 highres photo
    image/jpeg 37.84 KB
    7/17/2021
    37.84 KB
    434 lowres photo
    image/jpeg 3.64 KB
    7/17/2021
    3.64 KB

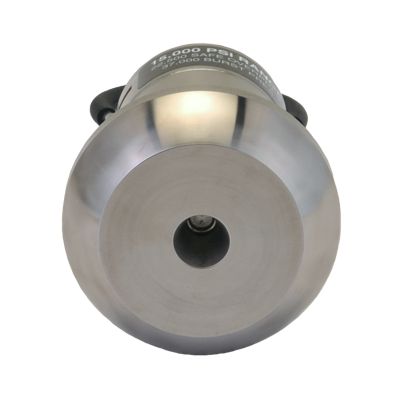

    Model 434 Bottom View
    image/png 96.17 KB
    7/17/2021
    96.17 KB

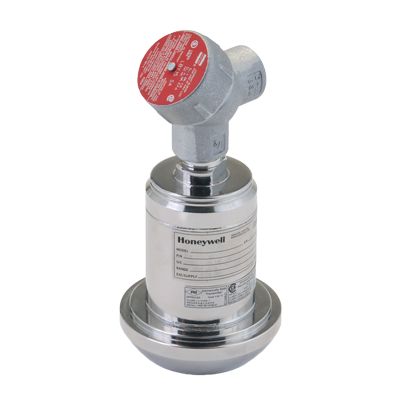

    Model 434 Front View
