    Speed Sensors

    SNDH-T Series

    Hall-effect speed and direction sensor with quadrature output. 4.5 Vdc to 18 Vdc supply voltage. 1 Hz to 15 kHz operating frequency.

    Overview

    The SNDH-T Series is a dual differential Hall-effect sensor that provides speed and direction information using a quadrature output with signals 90° phase shifted from each other. Target direction is determined by output lead/lag phase shifting.

    This product is designed for applications where extremely high resolution is required at wide frequency ranges, 1 Hz to 15 kHz, and large air gaps. BiCMOS (bipolar complementary metal-oxide-semiconductor) Hall-effect technology, using advanced digital signal processing for dynamic offset cancellation, provides enhanced air gap performance and phase shift accuracy over most conditions.

    Unique patented (pending) IC (integrated circuit) packaging provides output phase shift tolerancing with enhanced accuracy. The robust package is automotive under-the-hood grade for most environmental conditions as well as EMI (electromagnetic interference) hardened. Multiple connection options, including wire harness and integral connector versions using AMP super seal or AMP Jr. Timer connectors, are available. Package design includes an O-ring seal for pressure applications and a fixed mounting flange.

    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    SNDH-T Series Quadrature General Industrial Speed and Direction Sensors
    application/pdf 703.95 KB
    11/17/2022
    703.95 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Speed Sensors Range Guide
    application/pdf 777.88 KB
    7/16/2021
    777.88 KB
    Speed Sensor Comparison
    application/pdf 481.16 KB
    11/17/2022
    481.16 KB
    Transportation Range Guide
    application/pdf 16.68 MB
    9/26/2022
    16.68 MB
    CAD Model
    Name
    Description
    File Size
    Date
    Size
    SNDH-T4L-G01 CAD Model.zip
    application/zip 91.24 KB
    7/16/2021
    91.24 KB
    SNDH-T4C-G01 CAD Model.zip
    application/zip 45.41 KB
    7/16/2021
    45.41 KB
    Brochure
    Name
    Description
    File Size
    Date
    Size
    Partners Providing Technical Safety and Productivity Solutions -
    application/pdf 1.04 MB
    4/11/2024
    1.04 MB
    Application Note
    Name
    Description
    File Size
    Date
    Size
    Defence Ground Vehicles -
    application/pdf 872.87 KB
    6/14/2023
    872.87 KB
    All-Terrain Vehicle Solutions
    application/pdf 803.57 KB
    12/20/2022
    803.57 KB
    Forestry Vehicles
    application/pdf 1.05 MB
    12/20/2022
    1.05 MB
    Platform Vehicles
    application/pdf 628.05 KB
    12/20/2022
    628.05 KB
    Sensors and Switches in Mobile Cranes
    application/pdf 1.97 MB
    12/20/2022
    1.97 MB
    Sensors and Switches in Valves and Flowmeters
    application/pdf 1.78 MB
    9/23/2022
    1.78 MB
    Construction Vehicles -
    application/pdf 984.29 KB
    12/20/2022
    984.29 KB
    Agricultural Vehicles
    application/pdf 1.11 MB
    4/11/2024
    1.11 MB
    Sensors and Switches in Front Loaders
    application/pdf 2.54 MB
    12/20/2022
    2.54 MB
    eBook
    Name
    Description
    File Size
    Date
    Size
    Redefining Road Rail & Rugged Applications
    application/pdf 28.35 MB
    12/20/2022
    28.35 MB
    Product Photo
    Name
    Description
    File Size
    Date
    Size

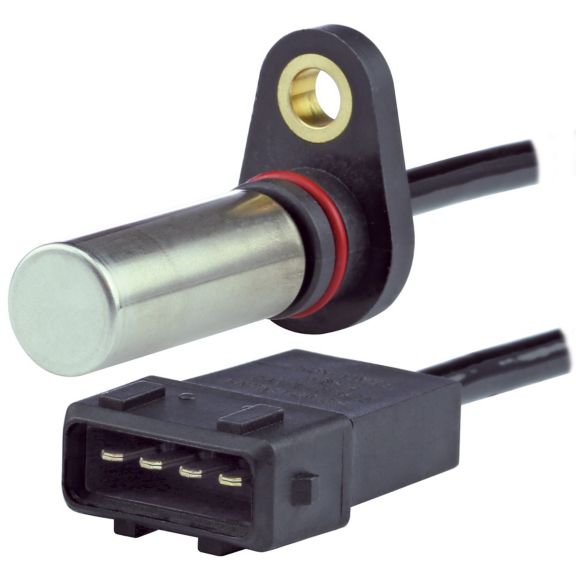

    SNDH-T4P-G02 lowres photo
    image/jpeg 26.07 KB
    7/16/2021
    26.07 KB
    SNDH-T4P-G02 highres photo
    image/jpeg 209.13 KB
    7/16/2021
    209.13 KB
    SNDH-T4P-G01 highres photo
    image/jpeg 220.42 KB
    7/16/2021
    220.42 KB
    SNDH-T4P-G01 lowres photo
    image/jpeg 25.95 KB
    7/16/2021
    25.95 KB

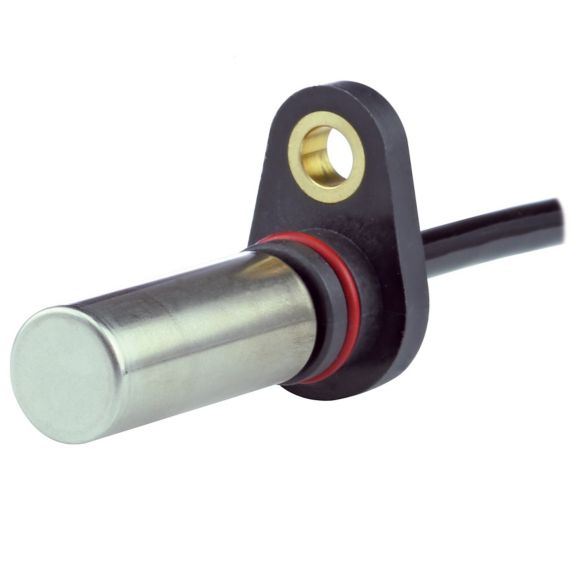

    SNDH-T4L-G01 highres photo
    image/jpeg 119.68 KB
    7/16/2021
    119.68 KB
    SNDH-T4C-G01 lowres photo
    image/jpeg 14.58 KB
    7/16/2021
    14.58 KB
    SNDH-T4L-G01 lowres photo
    image/jpeg 15.54 KB
    7/16/2021
    15.54 KB

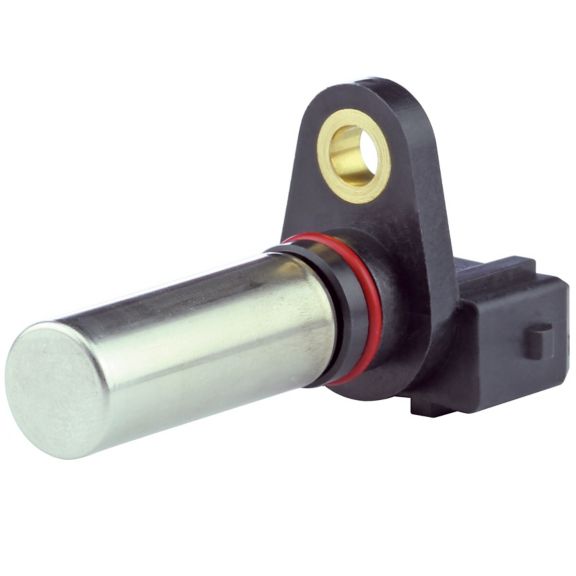

    SNDH-T4C-G01 highres photo
