Sensores de pressão
26PC Series
Compensated. Low pressure. mV output. Differential, wet/wet differential, gage. DIP, SIP, SMT. Linearity & hysteresis: 0.5 % typ.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Pressure Ranges
- 0.5 psi to 250 psi (SIP, DIP)
- 1 psi to 15 psi (SMT)

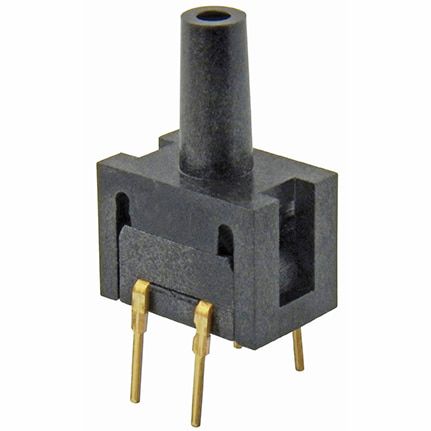

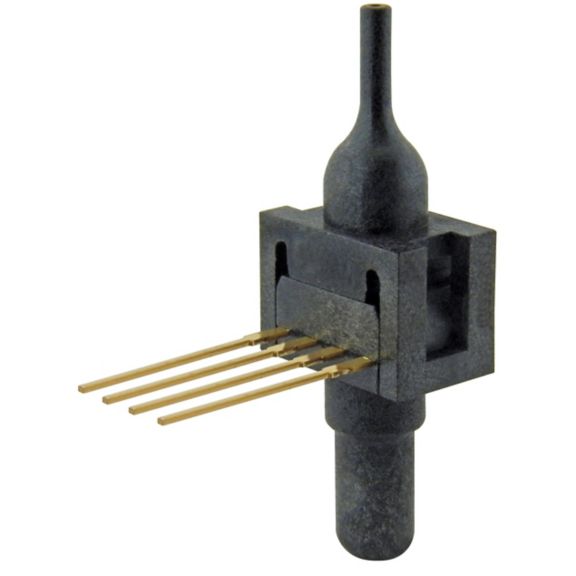

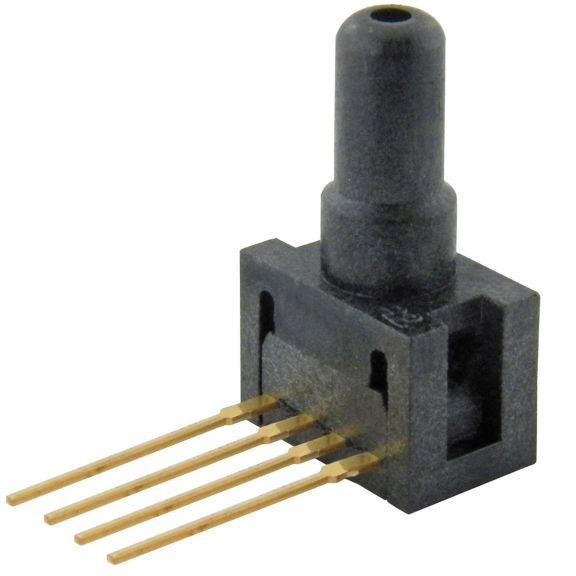

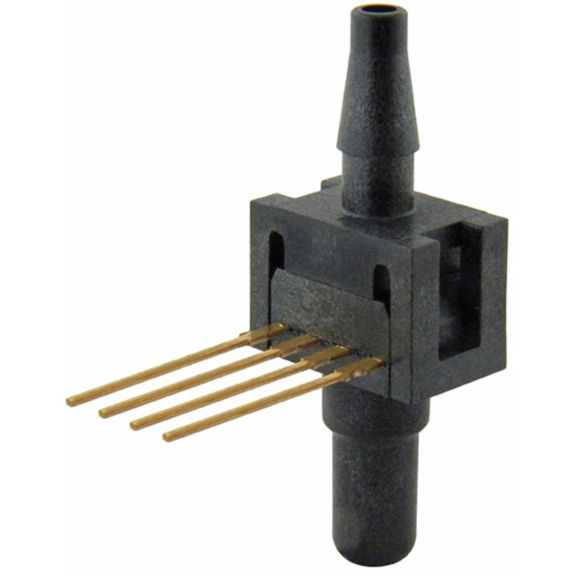

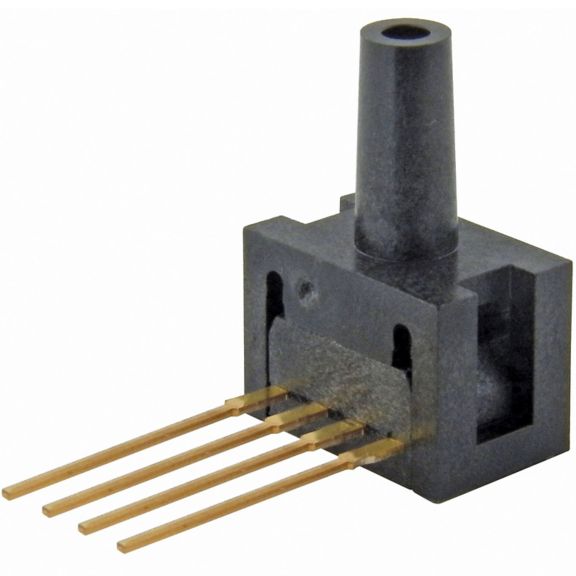

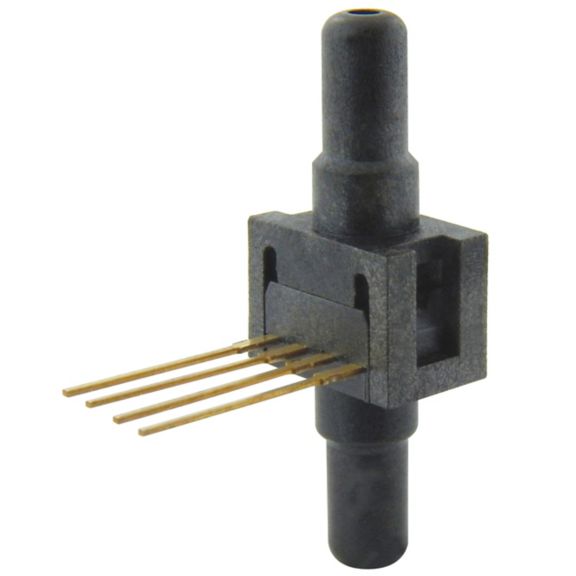

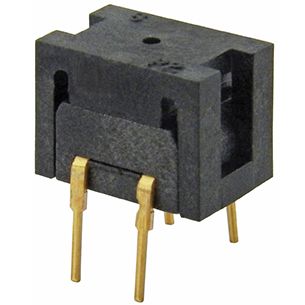

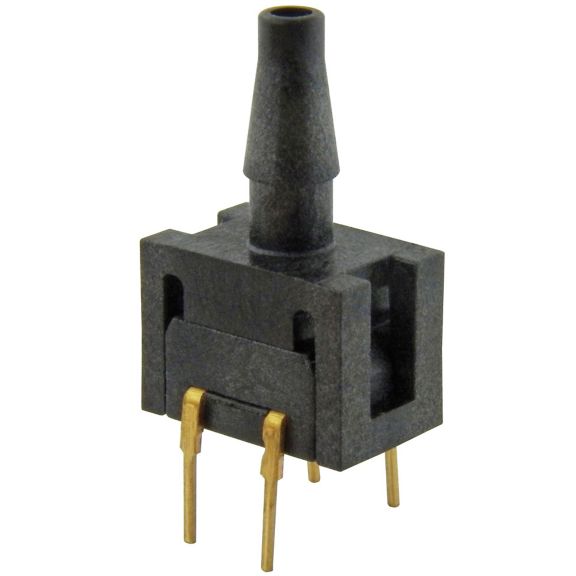

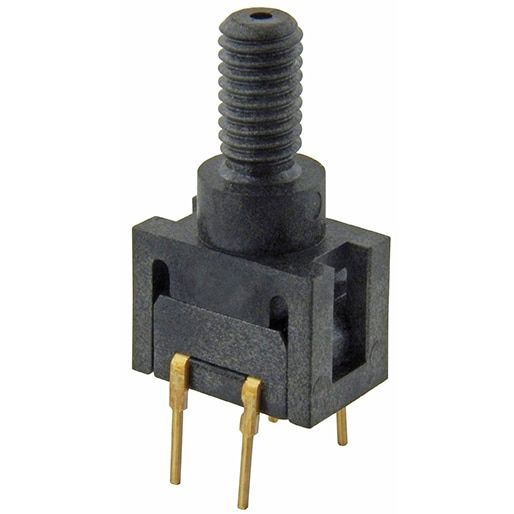

The factory calibrated 26PC Series miniature pressure sensors provide reliable gage pressure sensing performance in a compact package. The sensor features a proven sensing technology that utilizes a specialized piezoresistive micro-machined sensing element which allows part interchangeability, high performance, reliability, and accuracy. The low power, non-amplified, non-compensated Wheatstone bridge circuit design provides inherently stable mV outputs over 1.0 psi through 250 psi sensing ranges.
