Leitor portátil robusto

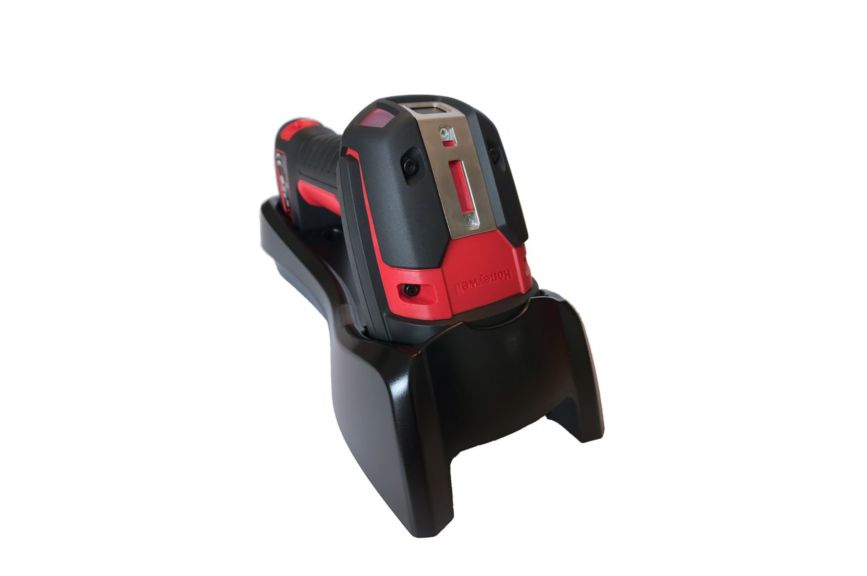

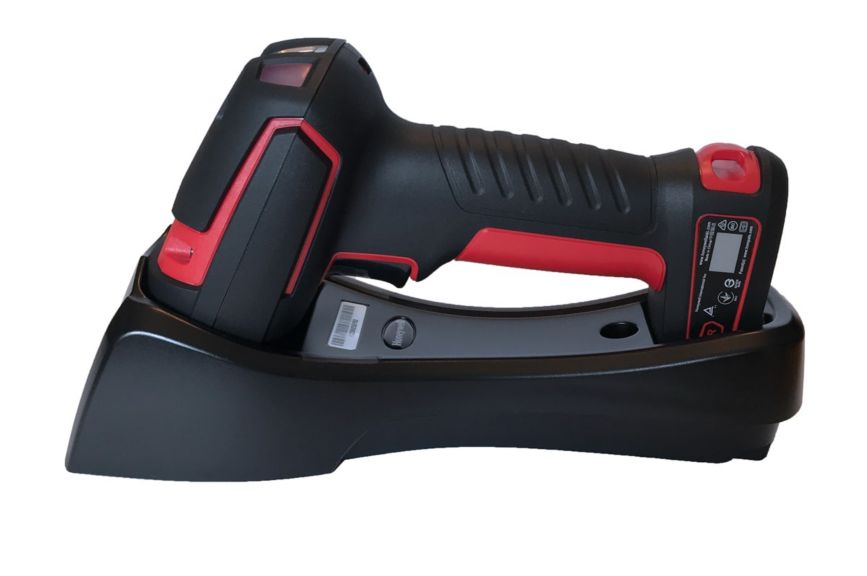

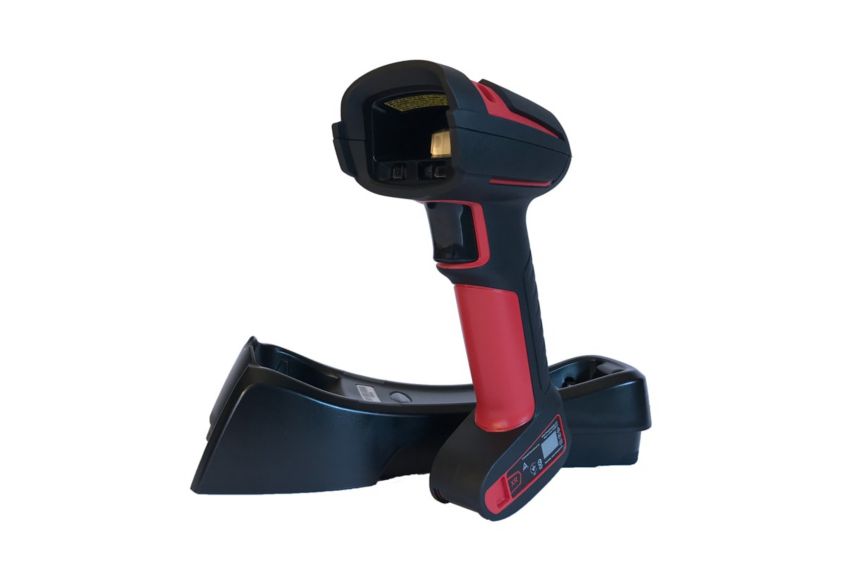

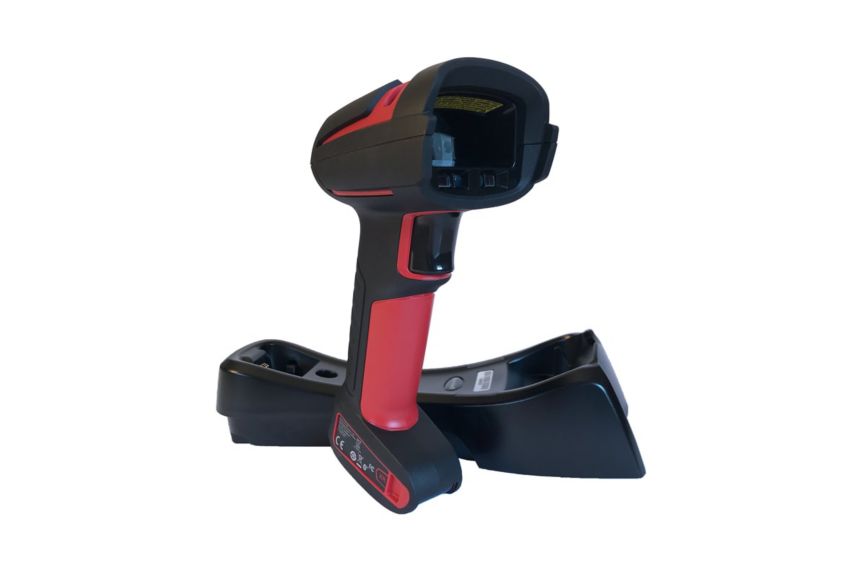

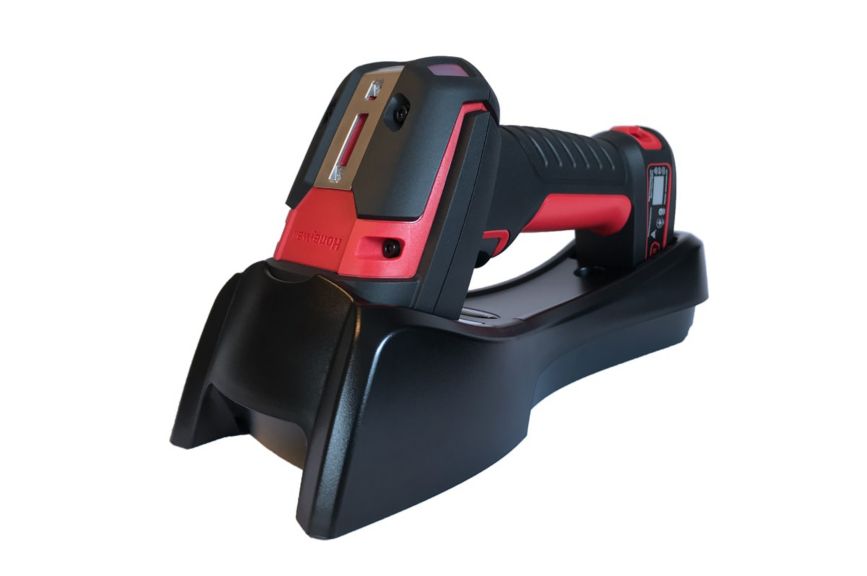

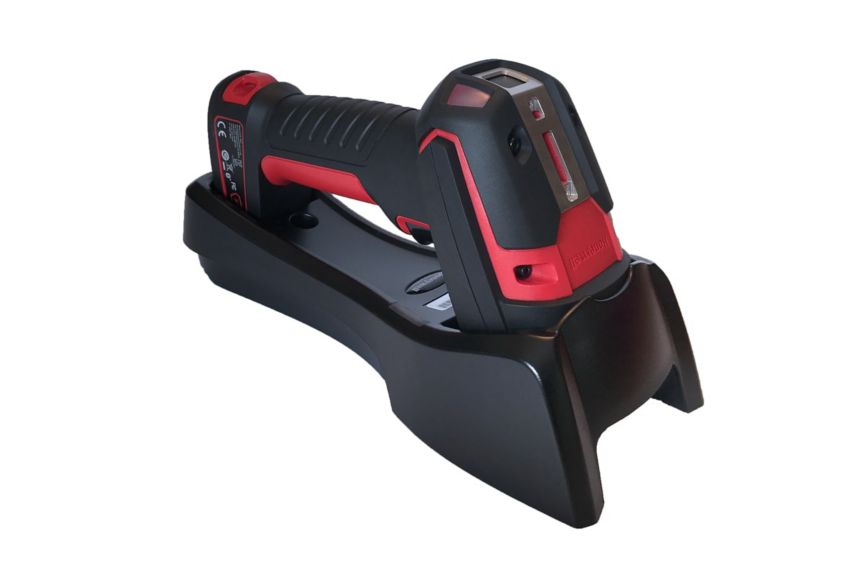

Scanner de alcance padrão ultrarrobusto Granit 1991iSR
Scanner de alcance padrão ultrarrobusto Granit 1991iSR
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Garanta o máximo de produtividade e tempo de atividade com o leitor de códigos de barras ultrarrobusto de alcance standard Granit™ 1991iXR. A melhor durabilidade da categoria garante baixo TCO. O desempenho de escaneamento premium garante até mesmo escaneamento de códigos danificados ou de baixa qualidade rapidamente. O Granit XP expande as capacidades e redefine a leitura ultrarrobusto.
....- Criado para sobreviver a tratamentos agressivos, incluindo quedas de 3 m (10 ft), 7.000 tombos de 1 m (3,3 ft), temperaturas operacionais de -30° C a 50° C (-22° F a 122° F) e vedação IP67, o Granit XP reduz os custos de serviço e aumenta o tempo de operação do dispositivo.
- O Granit fornece escaneamento de desempenho extremo, mesmo em códigos de barras danificados e de baixa qualidade. Códigos de barras de alta qualidade escaneiam e transmitem mais rápido do que nunca.
- O modelo SR é ideal para operações normais de escaneamento de campo próximo em códigos de barras 1D e 2D. Para distâncias mais longas, consulte outros modelos na família Granit.
- O software de inteligência operacional da Honeywell fornece informações de varredura sob demanda, permitindo maior produtividade e rendimento dos funcionários.
- O utilitário de gerenciamento de leitor (SMU) da Honeywell cria uma solução holística que automatiza a forma como você implanta e atualiza os leitores em seu ambiente.
Após um legado de implantações bem-sucedidas, os leitores Granit™ XP de última geração expandem os recursos e redefinem a leitura ultrarrobusta. Com a melhor especificação de queda de 10 ft da categoria, o Granit™ XP é projetado para continuar trabalhando após o impacto das quedas das docas de carga, empilhadeiras e caminhões de coleta. O teste de tombo de 1 metro (3,3 ft) indica durabilidade a longo prazo com batidas e quedas diárias da estação de trabalho ou altura da cintura. A melhor especificação de 7.000 tombos da categoria garante que os leitores Granit™ estarão prontos para trabalhar a longo prazo. E a vedação contra poeira e umidade IP67 protege o desempenho de escaneamento sob tratamento agressivo.Os códigos de barras tornam a entrada de dados mais rápida e precisa, maximizando a produtividade em suas operações. No entanto, códigos de barras danificados e de baixa qualidade podem tornar as transações lentas e dolorosas. Etiquetas ruins geralmente ocorrem no armazém/CD e espaço industrial devido à impressão de baixa qualidade ou danos durante o manuseio. O Granit XP, construído sobre a plataforma de imagem de última geração da Honeywell, garante que etiquetas de outro modo desafiadoras não criem um gargalo em seu processo. O modelo Granit™ XP 1991iSR oferece varredura de alta durabilidade e desempenho extremo para operações de alcance padrão. Criado para aplicações em que o escaneamento de alta velocidade é necessário para maximizar a produtividade e onde a durabilidade não é negociável para baixo custo total de propriedade, o leitor Granit™ XP 1991iSR oferece a solução ideal.
Specifications
Scanning Specifications
- Tolerância ao movimento
- Até 177 pol./s
- Até 4.500 mm/s
- Recursos de decodificação
- 1D/2D
- Pitch
- 45°
- Padrão de leitura
- Imageador de área (matriz de 1.280 x 800 pixels)
- Número de leituras
- Até 50.000 leituras por carga
- Inclinação
- 65°
- Faixa de leitura
- Alcance padrão (SR)
- Contraste de impressão
- Mínimo de 20% de diferença de reflexão
- Brilho
- 0 a 100.000 lux
- 9.290 pés-velas
Network
- Bluetooth
- Sim
Hardware
- Sem fio
- Classe 1: 100 m (330 pés) de linha de visão
- Interfaces do sistema host
- RS-232 TTL
- USB
- Wedge via teclado
Electrical
- Potência de espera
- 0,6 W
Environmental
- Umidade operacional
- Até 95% de umidade relativa, sem condensação
- Faixa de temperatura de armazenamento
- -40 °C a 70 °C
- -40 °F a 158 °F
Standards & Approvals
- Classificações de proteção
- IP65
- IP67
Others
- Tipo de bateria
- Íons de lítio de 2450 mAh no mínimo
- Tensão de entrada
- 4,0 VCC a 5,5 VCC
- Potência de operação
- 5 W (1000 mA a 5 VCC)
- Temperatura de operação
- -20 °C a 50 °C
- -4 °F a 122 °F
- Duração da garantia
- Garantia de fábrica de três anos
- Marca
- Honeywell
- Tipo de conector de energia
- Sem fio
Scanning Specifications
- Tolerância ao movimento
- Até 177 pol./s
- Até 4.500 mm/s
- Recursos de decodificação
- 1D/2D
- Pitch
- 45°
- Padrão de leitura
- Imageador de área (matriz de 1.280 x 800 pixels)
- Número de leituras
- Até 50.000 leituras por carga
- Inclinação
- 65°
- Faixa de leitura
- Alcance padrão (SR)
- Contraste de impressão
- Mínimo de 20% de diferença de reflexão
- Brilho
- 0 a 100.000 lux
- 9.290 pés-velas
Network
- Bluetooth
- Sim
Hardware
- Sem fio
- Classe 1: 100 m (330 pés) de linha de visão
- Interfaces do sistema host
- RS-232 TTL
- USB
- Wedge via teclado
Electrical
- Potência de espera
- 0,6 W
Environmental
- Umidade operacional
- Até 95% de umidade relativa, sem condensação
- Faixa de temperatura de armazenamento
- -40 °C a 70 °C
- -40 °F a 158 °F
Standards & Approvals
- Classificações de proteção
- IP65
- IP67
Others
- Tipo de bateria
- Íons de lítio de 2450 mAh no mínimo
- Tensão de entrada
- 4,0 VCC a 5,5 VCC
- Potência de operação
- 5 W (1000 mA a 5 VCC)
- Temperatura de operação
- -20 °C a 50 °C
- -4 °F a 122 °F
- Duração da garantia
- Garantia de fábrica de três anos
- Marca
- Honeywell
- Tipo de conector de energia
- Sem fio
- Tolerância ao movimento : Até 177 pol./s|Até 4.500 mm/s
- Recursos de decodificação : 1D/2D
- Pitch : 45°
- Padrão de leitura : Imageador de área (matriz de 1.280 x 800 pixels)
- Número de leituras : Até 50.000 leituras por carga
- Inclinação : 65°
- Faixa de leitura : Alcance padrão (SR)
- Contraste de impressão : Mínimo de 20% de diferença de reflexão
- Brilho : 0 a 100.000 lux|9.290 pés-velas
- Bluetooth : Sim
- Sem fio : Classe 1: 100 m (330 pés) de linha de visão
- Interfaces do sistema host : RS-232 TTL|USB|Wedge via teclado
- Tipo de bateria : Íons de lítio de 2450 mAh no mínimo
- Tensão de entrada : 4,0 VCC a 5,5 VCC
- Potência de operação : 5 W (1000 mA a 5 VCC)
- Potência de espera : 0,6 W
- Umidade operacional : Até 95% de umidade relativa, sem condensação
- Temperatura de operação : -20 °C a 50 °C|-4 °F a 122 °F
- Faixa de temperatura de armazenamento : -40 °C a 70 °C|-40 °F a 158 °F
- Classificações de proteção : IP65|IP67
- Duração da garantia : Garantia de fábrica de três anos
- Marca : Honeywell
- Tipo de conector de energia : Sem fio
