Torque Transducers
Model 651
Mid-range reaction torque watch gauges. 2.8 gm-cm to 600 gm-cm range. ±2 % rated output.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

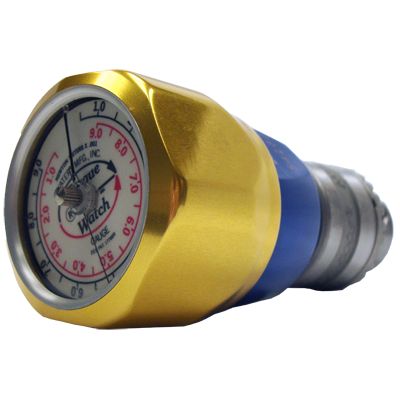

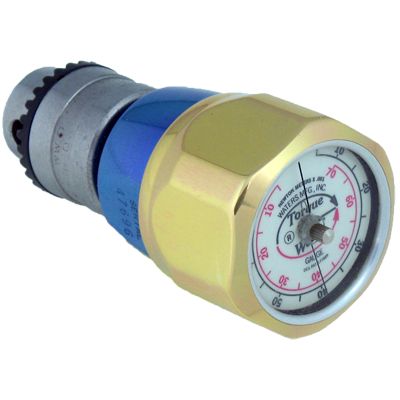

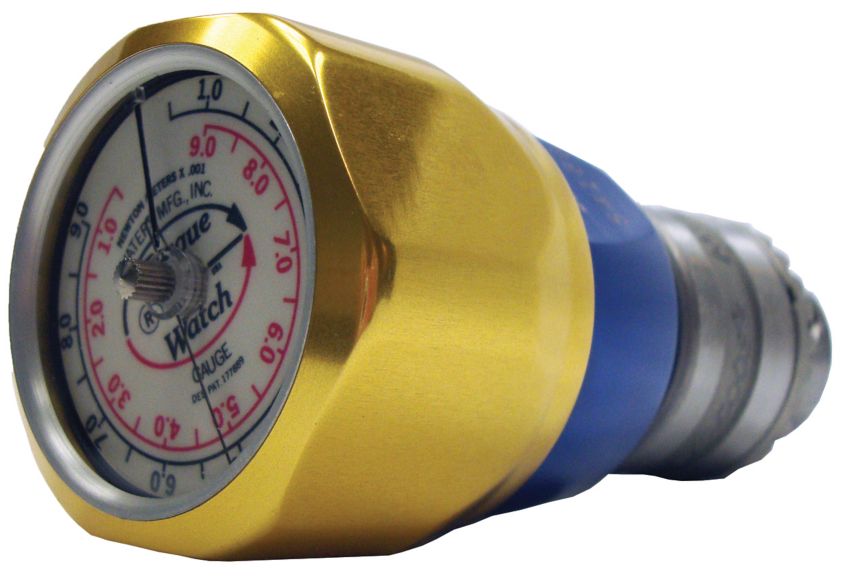

The 651 mid-range torque watch gauge series provides accurate measurement of low static torque. A 1/4 inch keyed chuck provides a simple means of coupling to the device under measurement. The 651 Series utilizes a calibrated spring, shaft, and pointer assembly within a rugged steel and aluminum housing. The unit can measure torque in either a clockwise or counterclockwise direction. Internal stainless steel rotation stops help prevent damage from over-torque up to two times the normal range.
Features
- 2.5 gm-cm to 2.8 k gm-cm [0.05 in-oz to 40 in-oz] [0.5 N-mm to 265 N-mm ] capacity
- 2 % accuracy

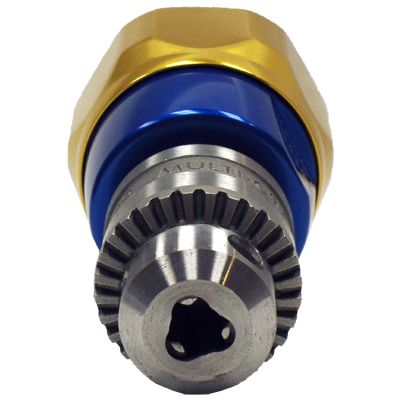

- 1/4-in keyed chuck standard
- Dial indication
- Overload protection
Data Sheet
Name
Description
File Size
Date
Size
Test & Measurement Torque Accessories Datasheet
application/pdf 585.15 KB
7/17/2021
585.15 KB
Test & Measurement Model 651 Mid Range Torque Watch Gauge Datasheet
application/pdf 137.25 KB
7/17/2021
137.25 KB
Manuals and Guides
Name
Description
File Size
Date
Size
Model 651 Mid Range Torque Watch Gauge Manual
application/pdf 142.72 KB
7/17/2021
142.72 KB
T&M Torque Transducer Range Guide
application/pdf 3.05 MB
7/17/2021
3.05 MB
Brochure
Name
Description
File Size
Date
Size
White Paper: New Ways to Measure Torque
application/pdf 195.77 KB
7/17/2021
195.77 KB
Others
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Model 651 Mid Range Torque Watch Gauge Manual
application/pdf 142.72 KB
7/17/2021
142.72 KB
White Paper: New Ways to Measure Torque
application/pdf 195.77 KB
7/17/2021
195.77 KB
Test & Measurement Torque Accessories Datasheet
application/pdf 585.15 KB
7/17/2021
585.15 KB
Test & Measurement Model 651 Mid Range Torque Watch Gauge Datasheet
application/pdf 137.25 KB
7/17/2021
137.25 KB
T&M Torque Transducer Range Guide
application/pdf 3.05 MB
7/17/2021
3.05 MB
Name
Description
File Size
Date
Size
Test & Measurement Torque Accessories Datasheet
585.15 KB
7/17/2021
Test & Measurement Model 651 Mid Range Torque Watch Gauge Datasheet
137.25 KB
7/17/2021
Model 651 Mid Range Torque Watch Gauge Manual
142.72 KB
7/17/2021
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
060-SQF41205-01
TQ651C1:MODEL 651 0.05 - 1.2 IN-OZS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41205-01
TQ651C1:MODEL 651 0.05 - 1.2 IN-OZS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41207-01
TQ651X3:MODEL 651 0.25 - 5.0 IN-OZS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41207-01
TQ651X3:MODEL 651 0.25 - 5.0 IN-OZS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41208-01
TQ651X4:MODEL 651 0.5 - 10.0 IN-OZS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41208-01
TQ651X4:MODEL 651 0.5 - 10.0 IN-OZS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41209-01
Model 651 Mid Range Torque Watch, 1 in-oz to 20 in-oz, ±2 % accuracy
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41209-01
Model 651 Mid Range Torque Watch, 1 in-oz to 20 in-oz, ±2 % accuracy
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41210-01
Model 651 Mid Range Torque Watch, 2 in-oz to 40 in-oz, ±2 % accuracy
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41210-01
Model 651 Mid Range Torque Watch, 2 in-oz to 40 in-oz, ±2 % accuracy
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41211-01
TQ651C1M:MODEL 651 2.5 - 80 GM-CM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41211-01
TQ651C1M:MODEL 651 2.5 - 80 GM-CM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41213-01
TQ651X3M:MODEL 651 10 - 300 GM-CM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41213-01
TQ651X3M:MODEL 651 10 - 300 GM-CM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41215-01
TQ651C2M:MODEL 651 50 -1200 GM-CM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41215-01
TQ651C2M:MODEL 651 50 -1200 GM-CM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41216-01
TQ651C3M:MODEL 651 150 - 2800 GM-CM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41216-01
TQ651C3M:MODEL 651 150 - 2800 GM-CM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41217-01
TQ651C2SI:MODEL 651 10 -140 N-MM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
060-SQF41217-01
TQ651C2SI:MODEL 651 10 -140 N-MM
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-model-651-torquewatchgauge-highres-side-ciid-161596
