pressure transducers
Model HP
High pressure transducers. 50000 psi to 100000 psi. AE F-250-C port. 0.5% accuracy. Custom 465 Stainless steel wetted material.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

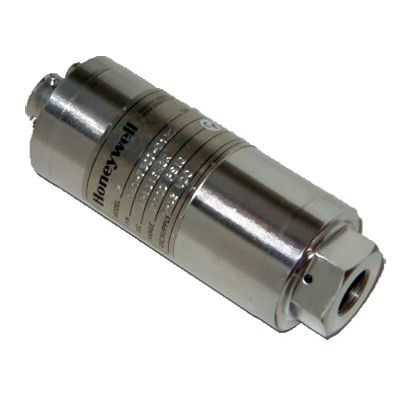

The high pressure transducer Model HP is designed to accept extreme pressure ranges of 50,000 psi to 100,000 psi. Manufactured out of Custom 465 Stainless Steel and are equipped with a special safety blow out plug in its outer case, this transducer will allow the excess pressure to gradually leak out should the pressure element rupture. These transducers operate in a wide temperature range from -65 °F through 250 °F. Temperature effects on span and zero are 0.005 % each and a full scale accuracy of 0.5 % is achieved.
Features
- 50000 psi to 100000 psi
- AE F-250-C port
- 0.5 % accuracy
- mV/V, 4 mA to 20 mA, 0 Vdc to 5 Vdc, or 0 Vdc to 10 Vdc output
- Intrinsically safe available (2N option only)
- CE approved
Specifications
Others
- Industry
- Aerospace
- Energy
- Manufacturing
Others
- Industry
- Aerospace
- Energy
- Manufacturing
- Industry : Aerospace|Energy|Manufacturing
Please sign in to access more documents.
Once signed in, you may be able to access additional documents for your account.
Data Sheet
Name
Description
File Size
Date
Size
Model HP High Pressure Transducer Datasheet
application/pdf 330.72 KB
8/13/2025
330.72 KB
Pressure Accessories Datasheet
application/pdf 379.5 KB
8/13/2025
379.5 KB
