    Amplifiers

    UBP-10 Series

    Universal bipolar strain gauge. 24 to 32 single voltage supply to inline wiring. Programmable gain settings. Wide adjustment range on the zero.

    Overview
    SUPPORT Where to buy CONTACT US

    The Model UBP-10 bi-polar in-line amplifier supplies a highly-regulated, bridge excitation voltage for the transducer and converts the millivolt signal of the transducer to a ±10 Vdc signal. (-)OUTPUT is biased approximately 1/3 of the supply voltage. The output will swing 0 Vdc to 10 Vdc around the (-)OUTPUT reference voltage. The universal, in-line amplifier features three selectable excitation voltages, programmable gain settings, wide adjustment range on the zero and a buffered solid-state shunt cal relay for quick calibration.

    Features
    • For replacement only, not to be used in new design
    • Strain gage sensor amplifier
    • ±5 Vdc output
    • ±15 Vdc supply voltage
    • NEMA 4 housing
    • Selectable excitation voltages: 3 V, 5 V, or 10 V @ 70 mA
    • Increases signal-to-noise ratio in noisy environments
    • Effects of voltage drops in excitation sources are eliminated
    • Signals may be sent to the data systems from low impedence sources
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    7/19/2021
    649.85 KB
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    application/pdf 243.43 KB
    7/21/2021
    243.43 KB
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    10/21/2021
    649.85 KB
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    5/24/2021
    649.85 KB
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    application/pdf 243.43 KB
    7/17/2021
    243.43 KB
    application/pdf 654.3 KB
    5/20/2025
    654.3 KB
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    application/pdf 243.43 KB
    10/22/2021
    243.43 KB
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    7/21/2021
    649.85 KB
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    application/pdf 243.43 KB
    7/19/2021
    243.43 KB
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    application/pdf 243.43 KB
    5/24/2021
    243.43 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    application/pdf 411.7 KB
    10/22/2021
    411.7 KB
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    application/pdf 411.7 KB
    7/21/2021
    411.7 KB
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    application/pdf 411.7 KB
    5/24/2021
    411.7 KB
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    application/pdf 411.7 KB
    7/19/2021
    411.7 KB
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    application/pdf 411.7 KB
    7/17/2021
    411.7 KB
    Product Photo
    Name
    Description
    File Size
    Date
    Size
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    application/zip 341.14 KB
    6/1/2021
    341.14 KB
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    application/zip 341.14 KB
    7/19/2021
    341.14 KB
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    application/zip 341.14 KB
    7/21/2021
    341.14 KB
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    application/zip 341.14 KB
    10/22/2021
    341.14 KB
    Others
    Name
    Description
    File Size
    Date
    Size
    Model UBP-10 Top View
    Model UBP-10 Top View
    image/png 81.54 KB
    7/21/2021
    81.54 KB
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    image/png 87.39 KB
    7/19/2021
    87.39 KB
    Model UBP_highres_photo
    Model UBP_highres_photo
    image/jpeg 102.29 KB
    7/17/2021
    102.29 KB
    Model UBP_highres_photo
    Model UBP_highres_photo
    image/jpeg 102.29 KB
    7/19/2021
    102.29 KB
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    image/png 87.39 KB
    7/17/2021
    87.39 KB
    Model UBP-10 Top View
    Model UBP-10 Top View
    image/png 81.54 KB
    7/17/2021
    81.54 KB
    Model UBP_highres_photo
    Model UBP_highres_photo
    image/jpeg 102.29 KB
    5/24/2021
    102.29 KB
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    image/png 87.39 KB
    5/24/2021
    87.39 KB
    Model UBP_lowres_photo
    Model UBP_lowres_photo
    image/jpeg 14.81 KB
    5/24/2021
    14.81 KB
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    image/png 87.39 KB
    7/21/2021
    87.39 KB
    Model UBP-10 Top View
    Model UBP-10 Top View
    image/png 81.54 KB
    7/19/2021
    81.54 KB
    Model UBP_highres_photo
    Model UBP_highres_photo
    image/jpeg 102.29 KB
    7/21/2021
    102.29 KB
    Model UBP-10 Top View
    Model UBP-10 Top View
    image/png 81.54 KB
    5/24/2021
    81.54 KB
    Model UBP-10 Front View
    Model UBP-10 Front View
    image/png 60.19 KB
    7/21/2021
    60.19 KB
    Model UBP-10 Front View
    Model UBP-10 Front View
    image/png 60.19 KB
    7/19/2021
    60.19 KB
    Model UBP-10 Front View
    Model UBP-10 Front View
    image/png 60.19 KB
    7/17/2021
    60.19 KB
    Model UBP-10 Front View
    Model UBP-10 Front View
    image/png 60.19 KB
    5/24/2021
    60.19 KB
    Name
    Description
    File Size
    Date
    Size
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    7/19/2021
    649.85 KB
    Model UBP-10 Top View
    Model UBP-10 Top View
    image/png 81.54 KB
    7/21/2021
    81.54 KB
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    application/zip 341.14 KB
    6/1/2021
    341.14 KB
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    application/pdf 243.43 KB
    7/21/2021
    243.43 KB
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    image/png 87.39 KB
    7/19/2021
    87.39 KB
    Model UBP_highres_photo
    Model UBP_highres_photo
    image/jpeg 102.29 KB
    7/17/2021
    102.29 KB
    Model UBP_highres_photo
    Model UBP_highres_photo
    image/jpeg 102.29 KB
    7/19/2021
    102.29 KB
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    application/pdf 411.7 KB
    10/22/2021
    411.7 KB
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    image/png 87.39 KB
    7/17/2021
    87.39 KB
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    10/21/2021
    649.85 KB
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    application/pdf 411.7 KB
    7/21/2021
    411.7 KB
    Model UBP-10 Top View
    Model UBP-10 Top View
    image/png 81.54 KB
    7/17/2021
    81.54 KB
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    5/24/2021
    649.85 KB
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    application/zip 341.14 KB
    7/19/2021
    341.14 KB
    Model UBP_highres_photo
    Model UBP_highres_photo
    image/jpeg 102.29 KB
    5/24/2021
    102.29 KB
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    application/pdf 243.43 KB
    7/17/2021
    243.43 KB
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    image/png 87.39 KB
    5/24/2021
    87.39 KB
    application/pdf 654.3 KB
    5/20/2025
    654.3 KB
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    application/pdf 243.43 KB
    10/22/2021
    243.43 KB
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    application/pdf 411.7 KB
    5/24/2021
    411.7 KB
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    application/pdf 411.7 KB
    7/19/2021
    411.7 KB
    Model UBP_lowres_photo
    Model UBP_lowres_photo
    image/jpeg 14.81 KB
    5/24/2021
    14.81 KB
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    application/pdf 411.7 KB
    7/17/2021
    411.7 KB
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    7/21/2021
    649.85 KB
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    image/png 87.39 KB
    7/21/2021
    87.39 KB
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    application/pdf 243.43 KB
    7/19/2021
    243.43 KB
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    application/zip 341.14 KB
    7/21/2021
    341.14 KB
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    application/zip 341.14 KB
    10/22/2021
    341.14 KB
    Model UBP-10 Top View
    Model UBP-10 Top View
    image/png 81.54 KB
    7/19/2021
    81.54 KB
    Model UBP_highres_photo
    Model UBP_highres_photo
    image/jpeg 102.29 KB
    7/21/2021
    102.29 KB
    Model UBP-10 Top View
    Model UBP-10 Top View
    image/png 81.54 KB
    5/24/2021
    81.54 KB
    Model UBP-10 Front View
    Model UBP-10 Front View
    image/png 60.19 KB
    7/21/2021
    60.19 KB
    Model UBP-10 Front View
    Model UBP-10 Front View
    image/png 60.19 KB
    7/19/2021
    60.19 KB
    Model UBP-10 Front View
    Model UBP-10 Front View
    image/png 60.19 KB
    7/17/2021
    60.19 KB
    Model UBP-10 Front View
    Model UBP-10 Front View
    image/png 60.19 KB
    5/24/2021
    60.19 KB
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    application/pdf 243.43 KB
    5/24/2021
    243.43 KB
    Name
    Description
    File Size
    Date
    Size
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    7/19/2021
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    243.43 KB
    7/21/2021
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    10/21/2021
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    5/24/2021
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    243.43 KB
    7/17/2021
    654.3 KB
    5/20/2025
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    243.43 KB
    10/22/2021
    Test & Measurement Instrumentation Accessories Datasheet
    Test & Measurement Instrumentation Accessories Datasheet
    649.85 KB
    7/21/2021
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    243.43 KB
    7/19/2021
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
    243.43 KB
    5/24/2021
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    411.7 KB
    10/22/2021
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    411.7 KB
    7/21/2021
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    411.7 KB
    5/24/2021
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    411.7 KB
    7/19/2021
    Model UBP-10 In-Line Transducer Product Manual
    Model UBP-10 In-Line Transducer Product Manual
    411.7 KB
    7/17/2021
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    341.14 KB
    6/1/2021
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    341.14 KB
    7/19/2021
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    341.14 KB
    7/21/2021
    UBP-10 Series Product Photos
    UBP-10 Series Product Photo
    341.14 KB
    10/22/2021

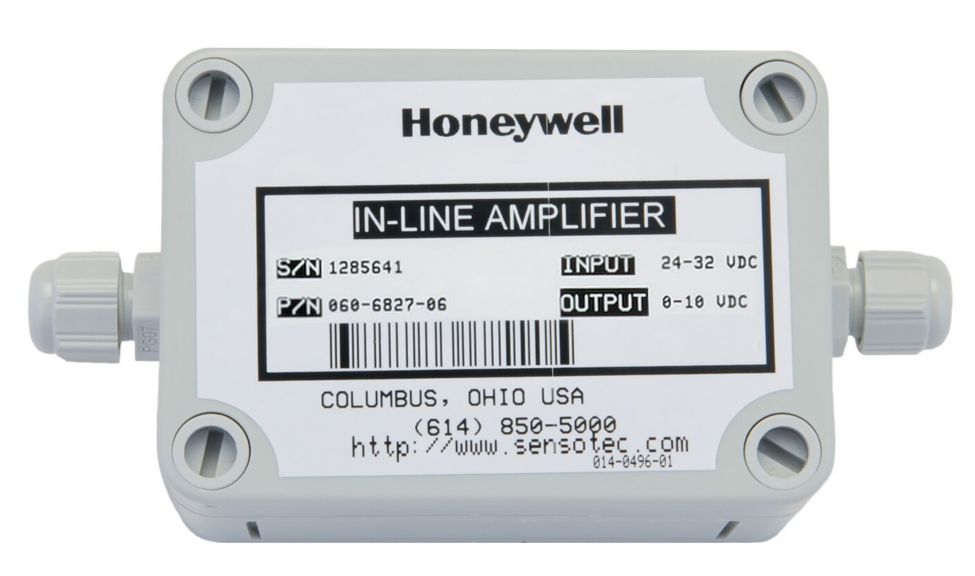

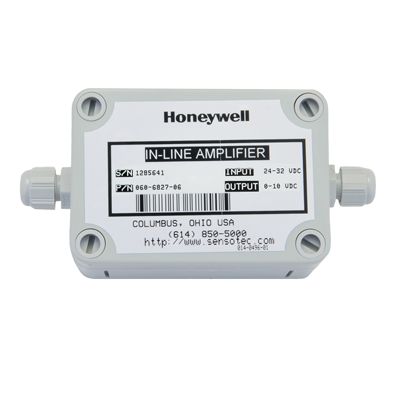

    Model UBP-10 Top View
    Model UBP-10 Top View
    81.54 KB
    7/21/2021
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    87.39 KB
    7/19/2021
    Model UBP_highres_photo
    Model UBP_highres_photo
    102.29 KB
    7/17/2021
    Model UBP_highres_photo
    Model UBP_highres_photo
    102.29 KB
    7/19/2021
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    87.39 KB
    7/17/2021
    Model UBP-10 Top View
    Model UBP-10 Top View
    81.54 KB
    7/17/2021
    Model UBP_highres_photo
    Model UBP_highres_photo
    102.29 KB
    5/24/2021
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    87.39 KB
    5/24/2021
    Model UBP_lowres_photo
    Model UBP_lowres_photo
    14.81 KB
    5/24/2021
    Model UBP-10 Bottom View
    Model UBP-10 Bottom View
    87.39 KB
    7/21/2021
    Model UBP-10 Top View
    Model UBP-10 Top View
    81.54 KB
    7/19/2021
    Model UBP_highres_photo
    Model UBP_highres_photo
    102.29 KB
    7/21/2021
    Model UBP-10 Top View
    Model UBP-10 Top View
    81.54 KB
    5/24/2021

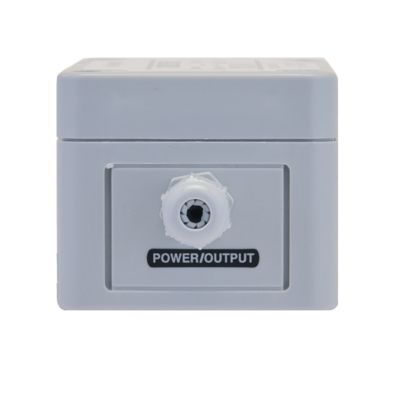

    Model UBP-10 Front View
    Model UBP-10 Front View
    60.19 KB
    7/21/2021
    Model UBP-10 Front View
    Model UBP-10 Front View
    60.19 KB
    7/19/2021
    Model UBP-10 Front View
    Model UBP-10 Front View
    60.19 KB
    7/17/2021
    Model UBP-10 Front View
    Model UBP-10 Front View
    60.19 KB
    5/24/2021

    Filters

    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list
    060-3168-01
    AE411:MODEL CA1
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelubp-instrumentation-highres-ciid-161187
    060-3168-01
    AE411:MODEL CA1
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelubp-instrumentation-highres-ciid-161187
    060-3656-03
    BE112 VAB INLINE AMP 3 MVV, +- 5V OUT
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelubp-instrumentation-highres-ciid-161187
    060-3656-03
    BE112 VAB INLINE AMP 3 MVV, +- 5V OUT
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelubp-instrumentation-highres-ciid-161187
    060-6827-01
    Model UBP-10 Universal Bipolar Inline Amplifier with 0 Vdc to 10 Vdc Output and 24 Vdc to 32 Vdc Single Voltage Supply Input
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelubp-instrumentation-highres-ciid-161187
    060-6827-01
    Model UBP-10 Universal Bipolar Inline Amplifier with 0 Vdc to 10 Vdc Output and 24 Vdc to 32 Vdc Single Voltage Supply Input
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelubp-instrumentation-highres-ciid-161187
    060-6827-06
    Model UBP-10 Universal Bipolar Inline Amplifier with 0 Vdc to 10 Vdc Output and 24 Vdc to 32 Vdc Single Voltage Supply Input
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelubp-instrumentation-highres-ciid-161187
    060-6827-06
    Model UBP-10 Universal Bipolar Inline Amplifier with 0 Vdc to 10 Vdc Output and 24 Vdc to 32 Vdc Single Voltage Supply Input
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelubp-instrumentation-highres-ciid-161187
    060-CS57929839841
    BE127EI,51J:MODEL UV-10 UNIVERSAL
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelubp-instrumentation-highres-ciid-161187
    060-CS57929839841
    BE127EI,51J:MODEL UV-10 UNIVERSAL
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-modelubp-instrumentation-highres-ciid-161187

    Related Categories

    Let's Connect!

    Sign up to receive exclusive communications from Honeywell including product updates, technical information, new offerings, events and news, surveys, special offers, and related topics via telephone, email, and other forms of electronic communication.

    Subscribe
    Products
    toggle view
    Software
    toggle view
    Services
    toggle view
    Industries
    toggle view
    Where to Buy
    toggle view
    myAutomation Support
    toggle view
    Company
    toggle view
    Careers
    toggle view
    Contact
    toggle view
    Follow Us

    Copyright © 2025 Honeywell International Inc

    Terms & Conditions
    Privacy Statement
    Your Privacy Choicesicon
    Cookie Notice
    Global Unsubscribe

    Honeywell

    Industrial Automation

    855 S Mint St

    Charlotte, NC 28202

    800-582-4263

    Product name

    © Current year Honeywell International Inc.

    All rights reserved.

    This document was generated on (YYYY-MM-DD, HH:mm:ss). Subject to change without notice.
