Thermostats
3500 Series
Military. Hermetically sealed. Tight tolerances & differentials. SPST contacts. Mounting brackets, terminals
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

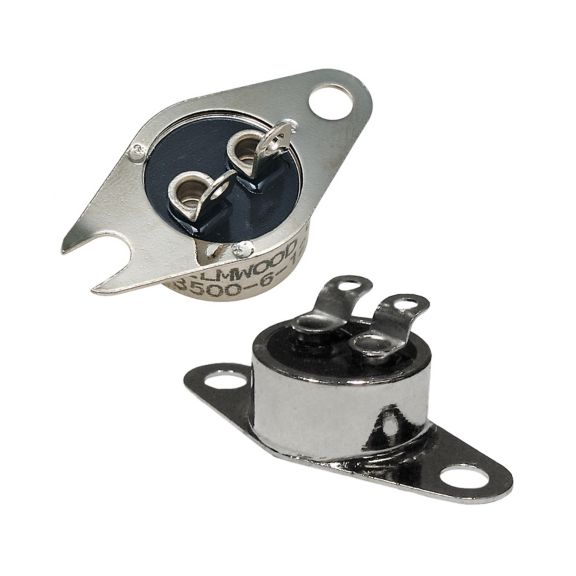

The 3500 Series consists of a single pole, single throw switch activated by a snap action bimetal disc. Temperature calibrations are pre-set at the factory, and each unit is 100% thermally and mechanically inspected. It is available to open or close on temperature rise. The case is laser welded to form a hermetically sealed steel housing, with a glass-to-metal seal at the terminal junction. It meets or exceeds the requirements of MIL-S- 24236 and is designed specifically for military and commercial aircraft applications. It is not QPL listed (see 3MS1).
Features
- Hermetically sealed
- Tight tolerances
- Tight differentials
- Hi-Rel
Potential Applications
- Military and commercial aircraft
Specifications
Technical Specifications
- Acceleration Range/Limits
- MIL-STD-202, Method 212; 20 G
- Thermostat Environmental Exposure Range
- -65 °C to 260 °C [-85 °F to 500 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- MIL-STD-202, Method 307; 0.050 Ohm max.
- Insulation Resistance
- MIL-STD-202, Method 302; 500 MOhm
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
Features
- Vibration
- MIL-STD-202, Method 204; 20 G
- Thermal Shock
- MIL-STD-202, Method 107; Cond. B
- Shock
- MIL-STD-202, Method 213; 400 G
- Seal Type
- MIL-STD-202, Method 112; Cond. C
- Salt Spray
- MIL-STD-202, Method 101; Cond. B
Operating Characteristics
- Operating Temperature
- -46 °C to 204 °C [-50 °F to 400 °F]
- -51 °C to 204 °C [-60 °F to 400 °F]
- Humidity
- MIL-STD-202, Method 106
Standards & Certifications
- Agency Approvals and Standards
- MIL-PRF-24236
- Meets or exceeds requirements of MIL-PRF-24236
Technical Specifications
- Acceleration Range/Limits
- MIL-STD-202, Method 212; 20 G
- Thermostat Environmental Exposure Range
- -65 °C to 260 °C [-85 °F to 500 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- MIL-STD-202, Method 307; 0.050 Ohm max.
- Insulation Resistance
- MIL-STD-202, Method 302; 500 MOhm
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
Features
- Vibration
- MIL-STD-202, Method 204; 20 G
- Thermal Shock
- MIL-STD-202, Method 107; Cond. B
- Shock
- MIL-STD-202, Method 213; 400 G
- Seal Type
- MIL-STD-202, Method 112; Cond. C
- Salt Spray
- MIL-STD-202, Method 101; Cond. B
Operating Characteristics
- Operating Temperature
- -46 °C to 204 °C [-50 °F to 400 °F]
- -51 °C to 204 °C [-60 °F to 400 °F]
- Humidity
- MIL-STD-202, Method 106
Standards & Certifications
- Agency Approvals and Standards
- MIL-PRF-24236
- Meets or exceeds requirements of MIL-PRF-24236
- Acceleration Range/Limits : MIL-STD-202, Method 212; 20 G
- Vibration : MIL-STD-202, Method 204; 20 G
- Thermostat Environmental Exposure Range : -65 °C to 260 °C [-85 °F to 500 °F]
- Thermostat Contact Resistance : MIL-STD-202, Method 307; 0.050 Ohm|MIL-STD-202, Method 307; 0.050 Ohm max.
- Thermal Shock : MIL-STD-202, Method 107; Cond. B
- Shock : MIL-STD-202, Method 213; 400 G
- Seal Type : MIL-STD-202, Method 112; Cond. C
- Salt Spray : MIL-STD-202, Method 101; Cond. B
- Operating Temperature : -46 °C to 204 °C [-50 °F to 400 °F]|-51 °C to 204 °C [-60 °F to 400 °F]
- Insulation Resistance : MIL-STD-202, Method 302; 500 MOhm
- Humidity : MIL-STD-202, Method 106
- Dielectric Strength : MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
- Agency Approvals and Standards : MIL-PRF-24236|Meets or exceeds requirements of MIL-PRF-24236
