3156 Series

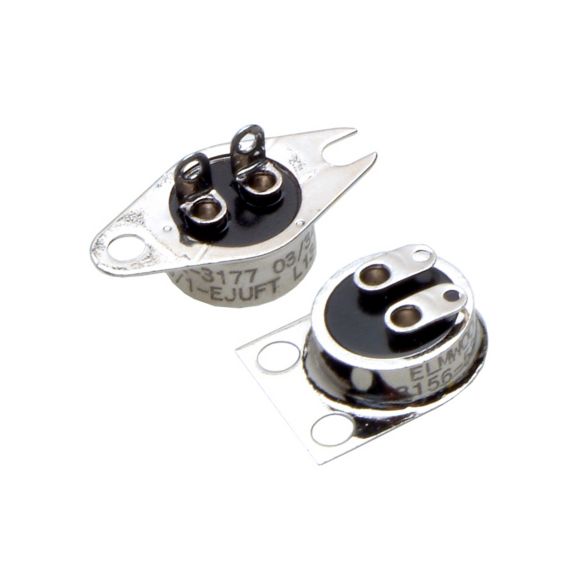

The 3156 Series is a single pole, single throw switch actuated by a snap-action bimetal disc, factory pre-set and fully inspected. Its laser-welded hermetic steel housing is low profile, with gold alloy contacts for low voltage applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The 3156 Series consists of a single pole, single throw switch activated by a snap-action bimetal disc. Temperature calibrations are pre-set at the factory and each unit is 100% thermally and mechanically inspected. It is available to open or close on temperature rise. The case is laser welded to form a hermetically-sealed steel housing with a glass-to-metal seal at the terminal junction. The low silhouette and compact design often make it especially well suited for applications that require miniaturization. They have gold alloy contacts for low voltage applications.
Features
- Hermetically sealed
- Tight tolerances
- Tight differential
- Low profile
Applications
- Industrial
- Food service
- Telecom
- Medical
- Infotech
Specifications
Standards & Certifications
- Agency Approvals and Standards
- UL
Technical Specifications
- Thermostat Environmental Exposure Range
- -54 °C to 260 °C [-65 °F to 500 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- Insulation Resistance
- MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
- MIL-STD-202, Method 301; 750 Vac 60 Hz - Terminal to Case
Features
- Seal Type
- MIL-STD-202, Method 112; Cond. 1x10-5
Operating Characteristics
- Operating Temperature
- -29 °C to 177 °C [-20 °F to 350 °F]
- Humidity
- MIL-STD-202, Method 106
Standards & Certifications
- Agency Approvals and Standards
- UL
Technical Specifications
- Thermostat Environmental Exposure Range
- -54 °C to 260 °C [-65 °F to 500 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- Insulation Resistance
- MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
- MIL-STD-202, Method 301; 750 Vac 60 Hz - Terminal to Case
Features
- Seal Type
- MIL-STD-202, Method 112; Cond. 1x10-5
Operating Characteristics
- Operating Temperature
- -29 °C to 177 °C [-20 °F to 350 °F]
- Humidity
- MIL-STD-202, Method 106
- Agency Approvals and Standards : UL
- Thermostat Environmental Exposure Range : -54 °C to 260 °C [-65 °F to 500 °F]
- Thermostat Contact Resistance : MIL-STD-202, Method 307; 0.050 Ohm
- Seal Type : MIL-STD-202, Method 112; Cond. 1x10-5
- Operating Temperature : -29 °C to 177 °C [-20 °F to 350 °F]
- Insulation Resistance : MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
- Humidity : MIL-STD-202, Method 106
- Dielectric Strength : MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case|MIL-STD-202, Method 301; 750 Vac 60 Hz - Terminal to Case
