    Speed Sensors

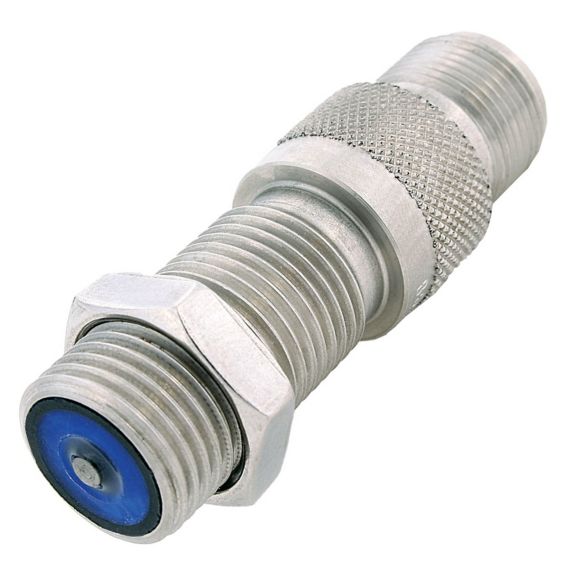

    VRS High Temperature Series

    Sensor exposed to temperatures up to 260 °C [450 °F]

    Overview
    SUPPORT Where to buy CONTACT US

    Distributor Inventory

    High Temperature VRS sensors are designed for use in applications where the sensor is exposed to temperatures up to 260 ºC [450 ºF]. Sealed front-end versions are available for applications where the sensor is exposed to fluids, lubricants or adverse environmental conditions.

    • Self-powered operation
    • Direct conversion of actuator speed to output frequency
    • Simple installation
    • No moving parts
    • Designed for use over a wide range of speeds
    • Adaptable to a wide variety of configurations
    • Customized VRS products for unique speed sensing applications
    • Housing diameters: 5/8 in (M16), 3/8 in (M12), 1/4 in (8M)
    • Housing material/style: stainless steel threaded
    • Terminations: MS3106 connector, preleaded
    • Output voltages: 4.7 Vp-p to 125 Vp-p
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    High Temperature Industrial VRS Magnetic Speed Sensors
    High Temperature Industrial VRS Magnetic Speed Sensors
    application/pdf 307.85 KB
    7/16/2021
    307.85 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Aerospace and Defense Product Range Guide
    Aerospace and Defense Product Range Guide
    application/pdf 19.65 MB
    9/23/2024
    19.65 MB
    Speed Sensors Range Guide
    Speed Sensors - Range Guide
    application/pdf 3.62 MB
    11/7/2024
    3.62 MB
    Speed Sensor Comparison
    Speed Sensor Comparison
    application/pdf 481.16 KB
    11/17/2022
    481.16 KB
    Technical Note
    Name
    Description
    File Size
    Date
    Size
    VRS Output Voltage Calculations
    VRS Output Voltage Calculations
    application/pdf 46.78 KB
    7/16/2021
    46.78 KB
    Application Note
    Name
    Description
    File Size
    Date
    Size
    Defence Ground Vehicles
    Defence Ground Vehicles -
    application/pdf 872.87 KB
    6/14/2023
    872.87 KB
    Sensors and Switches in Front Loaders
    Sensors and Switches in Front Loaders
    application/pdf 2.54 MB
    12/20/2022
    2.54 MB
    VRS Sensor Application Notes
    VRS Sensor Application Notes
    application/pdf 102.75 KB
    7/16/2021
    102.75 KB
    Agricultural Vehicles
    Agricultural Vehicles
    application/pdf 1.11 MB
    4/11/2024
    1.11 MB
    Construction Vehicles
    Construction Vehicles -
    application/pdf 984.29 KB
    12/20/2022
    984.29 KB
    VRS Industrial Magnetic Speed Sensors Application Note
    VRS Industrial Magnetic Speed Sensors Application Note
    application/pdf 537.58 KB
    7/16/2021
    537.58 KB
    Name
    Description
    File Size
    Date
    Size
    Defence Ground Vehicles
    Defence Ground Vehicles -
    application/pdf 872.87 KB
    6/14/2023
    872.87 KB
    Aerospace and Defense Product Range Guide
    Aerospace and Defense Product Range Guide
    application/pdf 19.65 MB
    9/23/2024
    19.65 MB
    Sensors and Switches in Front Loaders
    Sensors and Switches in Front Loaders
    application/pdf 2.54 MB
    12/20/2022
    2.54 MB
    VRS Sensor Application Notes
    VRS Sensor Application Notes
    application/pdf 102.75 KB
    7/16/2021
    102.75 KB
    Agricultural Vehicles
    Agricultural Vehicles
    application/pdf 1.11 MB
    4/11/2024
    1.11 MB
    Speed Sensors Range Guide
    Speed Sensors - Range Guide
    application/pdf 3.62 MB
    11/7/2024
    3.62 MB
    VRS Output Voltage Calculations
    VRS Output Voltage Calculations
    application/pdf 46.78 KB
    7/16/2021
    46.78 KB
    Speed Sensor Comparison
    Speed Sensor Comparison
    application/pdf 481.16 KB
    11/17/2022
    481.16 KB
    Construction Vehicles
    Construction Vehicles -
    application/pdf 984.29 KB
    12/20/2022
    984.29 KB
    High Temperature Industrial VRS Magnetic Speed Sensors
    High Temperature Industrial VRS Magnetic Speed Sensors
    application/pdf 307.85 KB
    7/16/2021
    307.85 KB
    VRS Industrial Magnetic Speed Sensors Application Note
    VRS Industrial Magnetic Speed Sensors Application Note
    application/pdf 537.58 KB
    7/16/2021
    537.58 KB
    Name
    Description
    File Size
    Date
    Size
    High Temperature Industrial VRS Magnetic Speed Sensors
    High Temperature Industrial VRS Magnetic Speed Sensors
    307.85 KB
    7/16/2021
    Aerospace and Defense Product Range Guide
    Aerospace and Defense Product Range Guide
    19.65 MB
    9/23/2024
    Speed Sensors Range Guide
    Speed Sensors - Range Guide
    3.62 MB
    11/7/2024
    Speed Sensor Comparison
    Speed Sensor Comparison
    481.16 KB
    11/17/2022
    VRS Output Voltage Calculations
    VRS Output Voltage Calculations
    46.78 KB
    7/16/2021
    Defence Ground Vehicles
    Defence Ground Vehicles -
    872.87 KB
    6/14/2023
    Sensors and Switches in Front Loaders
    Sensors and Switches in Front Loaders
    2.54 MB
    12/20/2022
    VRS Sensor Application Notes
    VRS Sensor Application Notes
    102.75 KB
    7/16/2021
    Agricultural Vehicles
    Agricultural Vehicles
    1.11 MB
    4/11/2024
    Construction Vehicles
    Construction Vehicles -
    984.29 KB
    12/20/2022
    VRS Industrial Magnetic Speed Sensors Application Note
    VRS Industrial Magnetic Speed Sensors Application Note
    537.58 KB
    7/16/2021
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list
    3010HTB
    High Temperature VRS Sensor, 15,9 mm [0.625 in] M16 diameter, 25 Vp-p, -55 ºC to 230 ºC [-67 ºF to 450 ºF], 24 DP (module 1.06) or coarser, 50 kHz, 56 mm [2.20 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    3010HTB
    High Temperature VRS Sensor, 15,9 mm [0.625 in] M16 diameter, 25 Vp-p, -55 ºC to 230 ºC [-67 ºF to 450 ºF], 24 DP (module 1.06) or coarser, 50 kHz, 56 mm [2.20 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    3015HTB
    High Temperature VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 15 Vp-p, -40 ºC to 205 ºC [-40 ºF to 400 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 32 mm [1.25 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    3015HTB
    High Temperature VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 15 Vp-p, -40 ºC to 205 ºC [-40 ºF to 400 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 32 mm [1.25 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    3015HTB15
    High Temperature VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 15 Vp-p, -40 ºC to 205 ºC [-40 ºF to 400 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 50 mm [1.95 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    3015HTB15
    High Temperature VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 15 Vp-p, -40 ºC to 205 ºC [-40 ºF to 400 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 50 mm [1.95 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    3030HTB
    High Temperature VRS Sensor, 15,9 mm [0.625 in] M16 diameter, 125 Vp-p, -55 ºC to 230 ºC [-67 ºF to 450 ºF], 24 DP (module 1.06) or coarser, 15 kHz, 56 mm [2.20 in,
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    3030HTB
    High Temperature VRS Sensor, 15,9 mm [0.625 in] M16 diameter, 125 Vp-p, -55 ºC to 230 ºC [-67 ºF to 450 ºF], 24 DP (module 1.06) or coarser, 15 kHz, 56 mm [2.20 in,
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    3055A
    High Temperature VRS Sensor, 6,4 mm [0.250 in] M8 diameter, 4.7 Vp-p, -40 ºC to 230 ºC [-40 ºF to 450 ºF], 36 DP (module 0.70) or coarser, 70 kHz, 23 mm [0.90 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    3055A
    High Temperature VRS Sensor, 6,4 mm [0.250 in] M8 diameter, 4.7 Vp-p, -40 ºC to 230 ºC [-40 ºF to 450 ºF], 36 DP (module 0.70) or coarser, 70 kHz, 23 mm [0.90 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    M3030
    VRS SPEED SENSOR
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    M3030
    VRS SPEED SENSOR
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    MA215HT
    VRS SPEED SENSOR
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    MA215HT
    VRS SPEED SENSOR
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    MA215HT-96
    SPEED & POSITION-TRANS & INDUST SPEED
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    MA215HT-96
    SPEED & POSITION-TRANS & INDUST SPEED
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    MA243HT
    High Temperature VRS Sensor, Sealed Front-End, 15,9 mm [0.625 in] M16 diameter, 60 Vp-p, -54 ºC to 220 ºC [-65 ºF to 428 ºF], 12 DP (module 2.11) or coarser, 40 kHz, 104 mm [4.10 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    MA243HT
    High Temperature VRS Sensor, Sealed Front-End, 15,9 mm [0.625 in] M16 diameter, 60 Vp-p, -54 ºC to 220 ºC [-65 ºF to 428 ºF], 12 DP (module 2.11) or coarser, 40 kHz, 104 mm [4.10 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    MA3055
    High Temperature VRS Sensor, Sealed Front-End, 6,4 mm [0.250 in] diameter, 5.2 Vp-p, -73 ºC to 230 ºC [-100 ºF to 450 ºF], 36 DP (module 0.70) or coarser, 70 kHz, 25 mm [1.00 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
    MA3055
    High Temperature VRS Sensor, Sealed Front-End, 6,4 mm [0.250 in] diameter, 5.2 Vp-p, -73 ºC to 230 ºC [-100 ºF to 450 ºF], 36 DP (module 0.70) or coarser, 70 kHz, 25 mm [1.00 in] approx. length
    https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-temperature-series-ciid-160979
